4-34 Service Manual
4023-001
Fuser Frame Resistor Board (PWB-R1) Removal

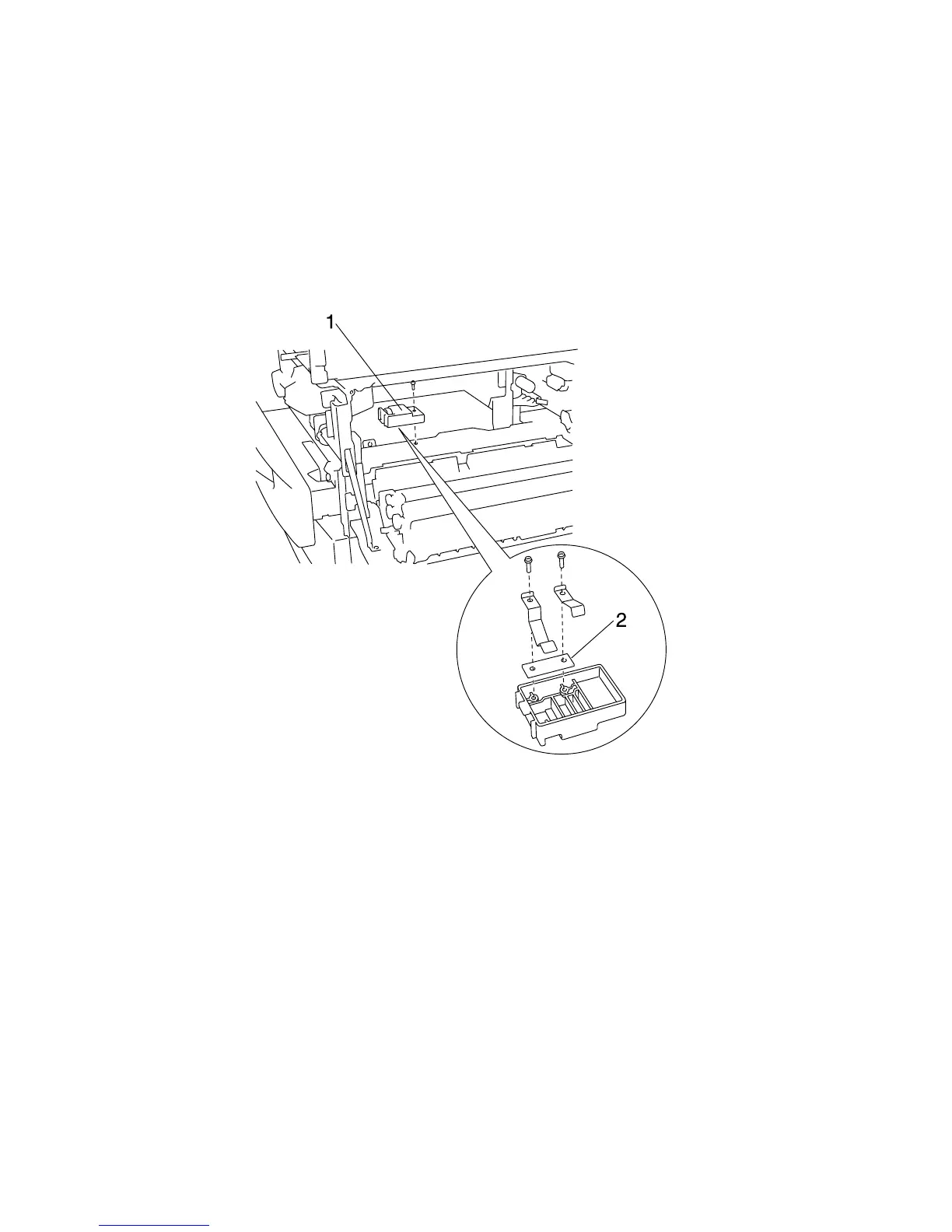

1. Remove the eraser duct assembly. (See “Eraser Duct
Assembly Removal” on page 4-32.)
2. Remove the cover (1). (1 screw)
3. Remove PWB-R1 (2). (2 screws)
