1st Cassette (Tray 1) Paper Take-Up Solenoid (SL1)
Removal
1. Remove the toner cartridge.
2. Remove the rear cover. (6 screws)
3. Remove the right cartridge hopper cover. (1 screw)
4. Remove the cartridge hopper assembly. (4 screws, 2
connectors)
5. Remove the cartridge hopper housing assembly. (4 screws)

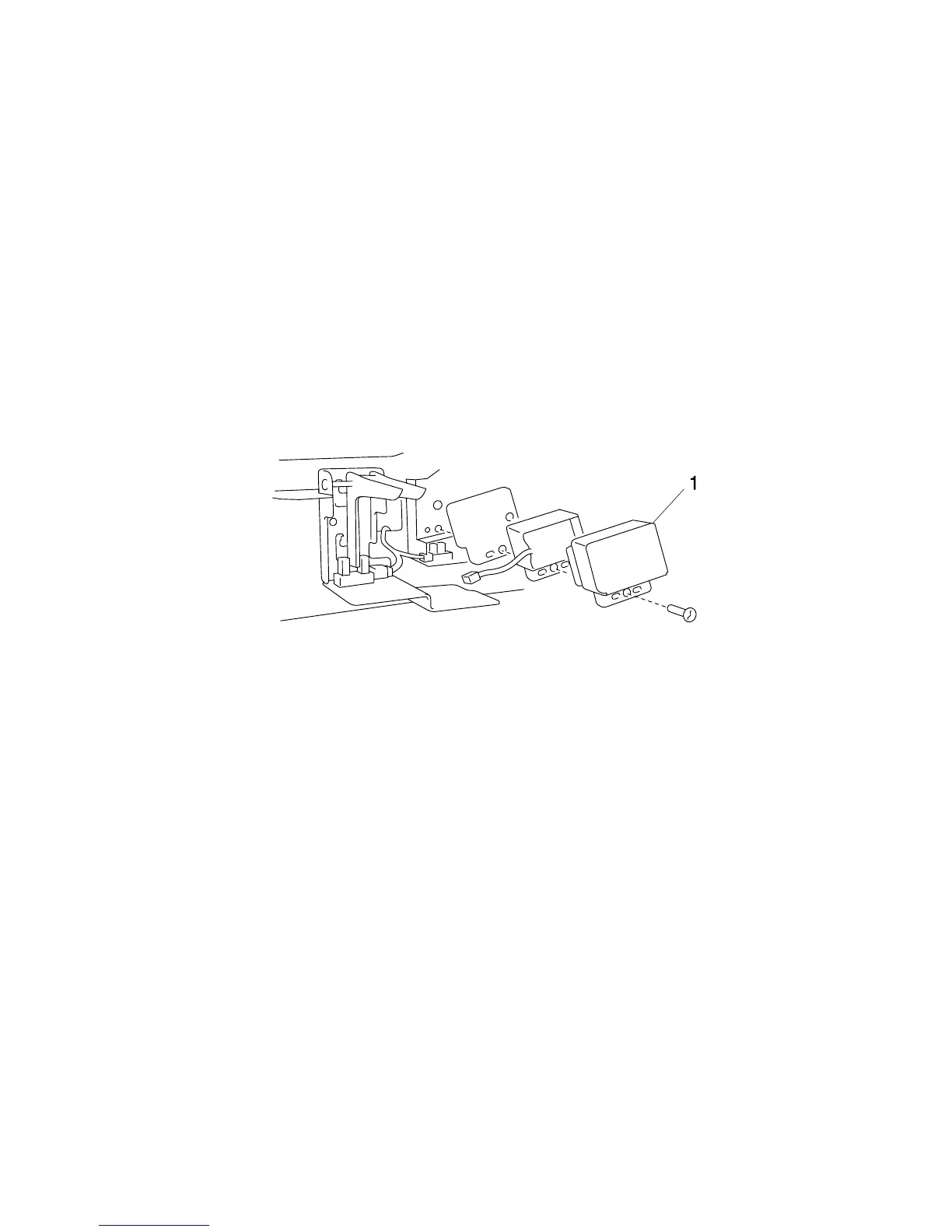

6. Remove the 1st cassette paper take-up solenoid SL1 (1). (1
screw, 1 connector)
