4-58 Service Manual
4023-001
1st Cassette (Tray 1) Set Sensor (PC6) Removal
1. Remove the toner cartridge.
2. Remove the rear cover. (6 screws)
3. Remove the right cartridge hopper cover. (1 screw)
4. Remove the cartridge hopper assembly. (4 screws, 2
connectors)
5. Remove the cartridge hopper housing assembly. (4 screws)

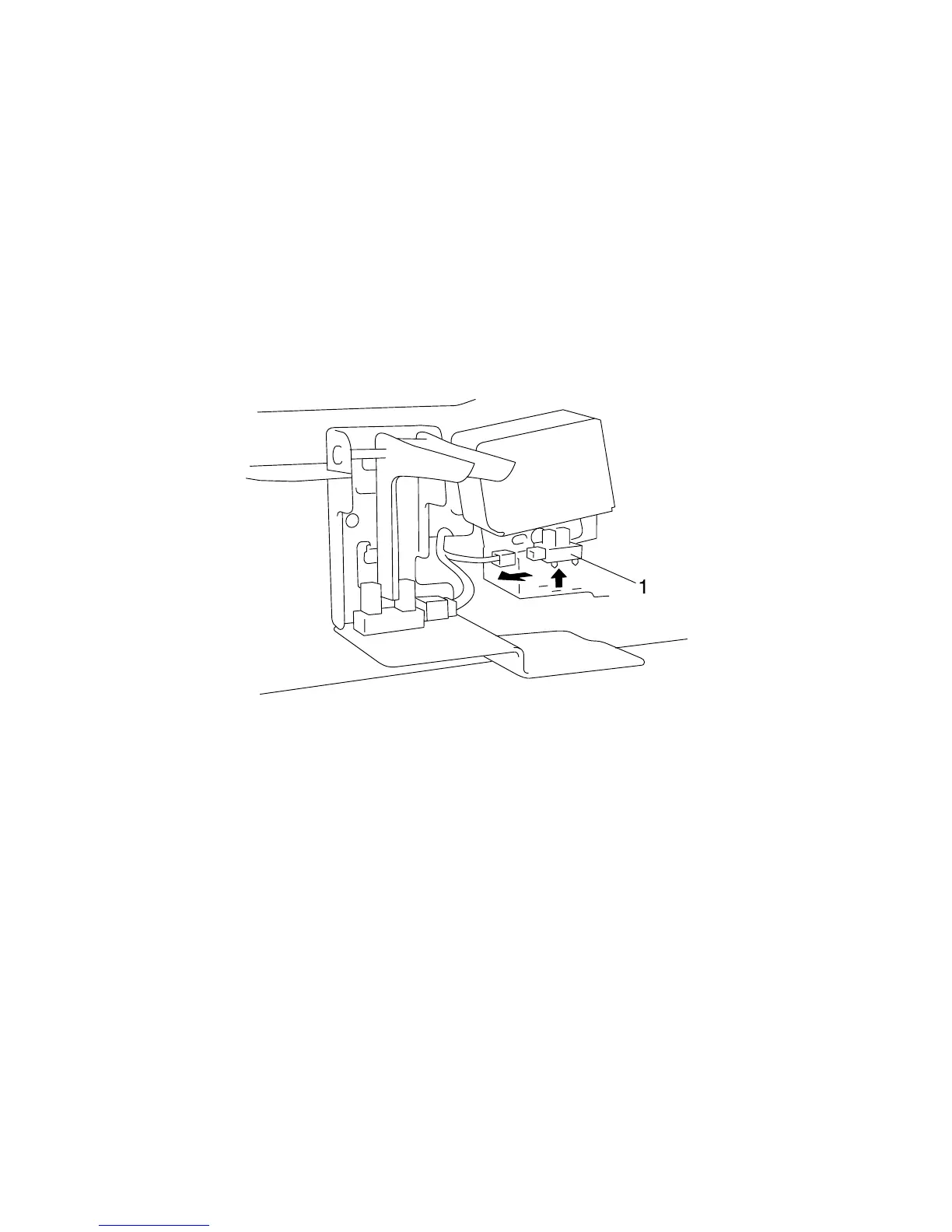

6. Remove the 1st cassette set sensor PC6 (1). (1 connector)
To Next Page
