Repair Information 4-29
4023-001

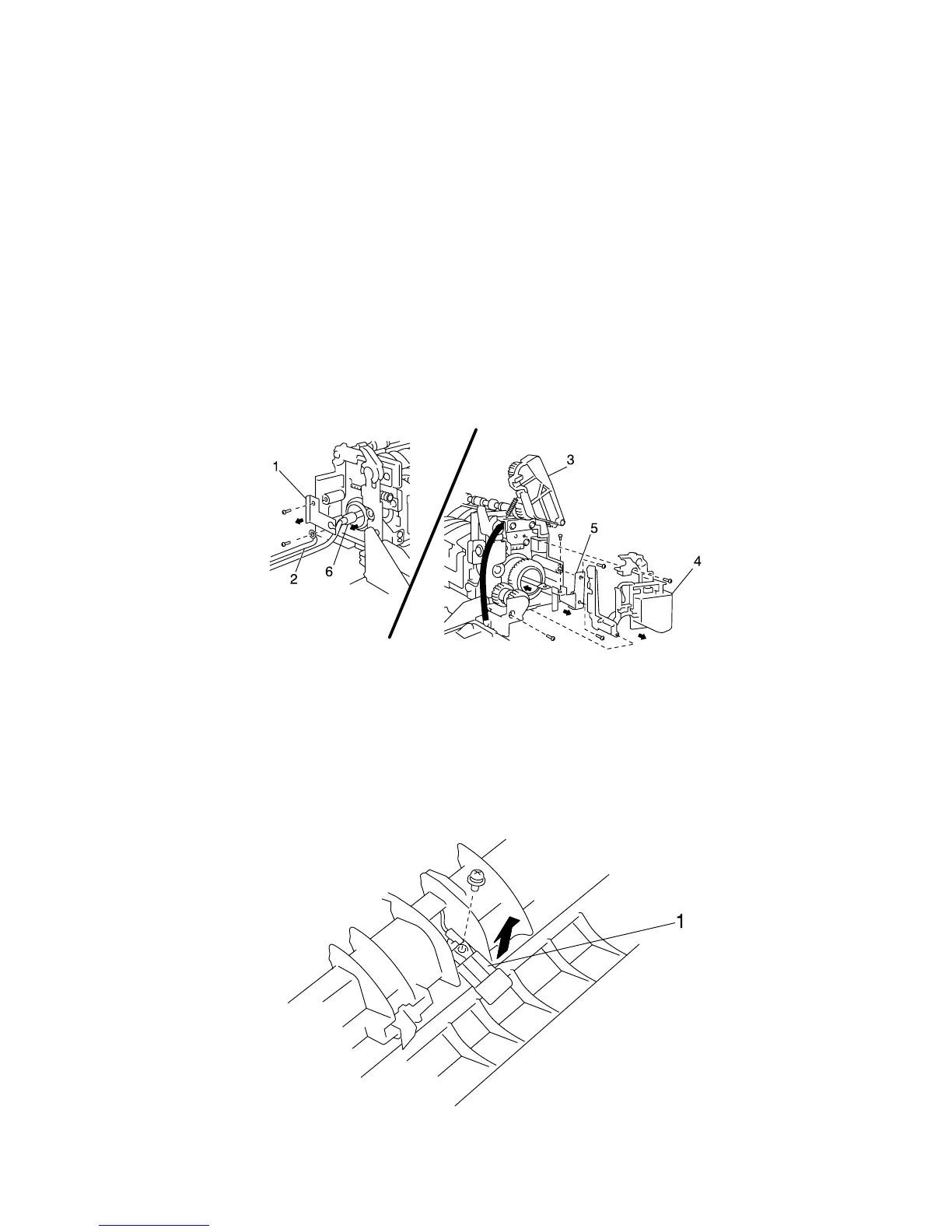

Heater Lamp (H1) Removal
1. Remove the heater lamp cover. (See “Heater Lamp Cover” on
page 4-28.)
2. Remove the heater lamp holder(front) (1). (1 screw)
3. Remove the earth (2). (1 screw)
4. Remove the gear assembly (3). (1 spring)
5. Remove the heater lamp cover(rear) (4). (2 screws)
6. Remove the heater lamp holder(rear) (5). (2 screws)
7. Remove the heater lamp(H1) (6). (1 screw)
Fusing Roller Thermistor (TH1) Removal
1. Remove the upper fusing roller.
2. Remove the fusing roller thermistor TH1 (1). (1 screw)
To Next Page
