4-54 Service Manual
4023-001
Right Door Interlock Switch (S2) Removal
1. Remove the toner cartridge.
2. Remove the rear cover. (6 screws)
3. Remove the right cartridge hopper cover. (1 screw)
4. Remove the cartridge hopper assembly. (4 screws, 2
connectors)
5. Remove the cartridge hopper housing assembly. (4 screws)

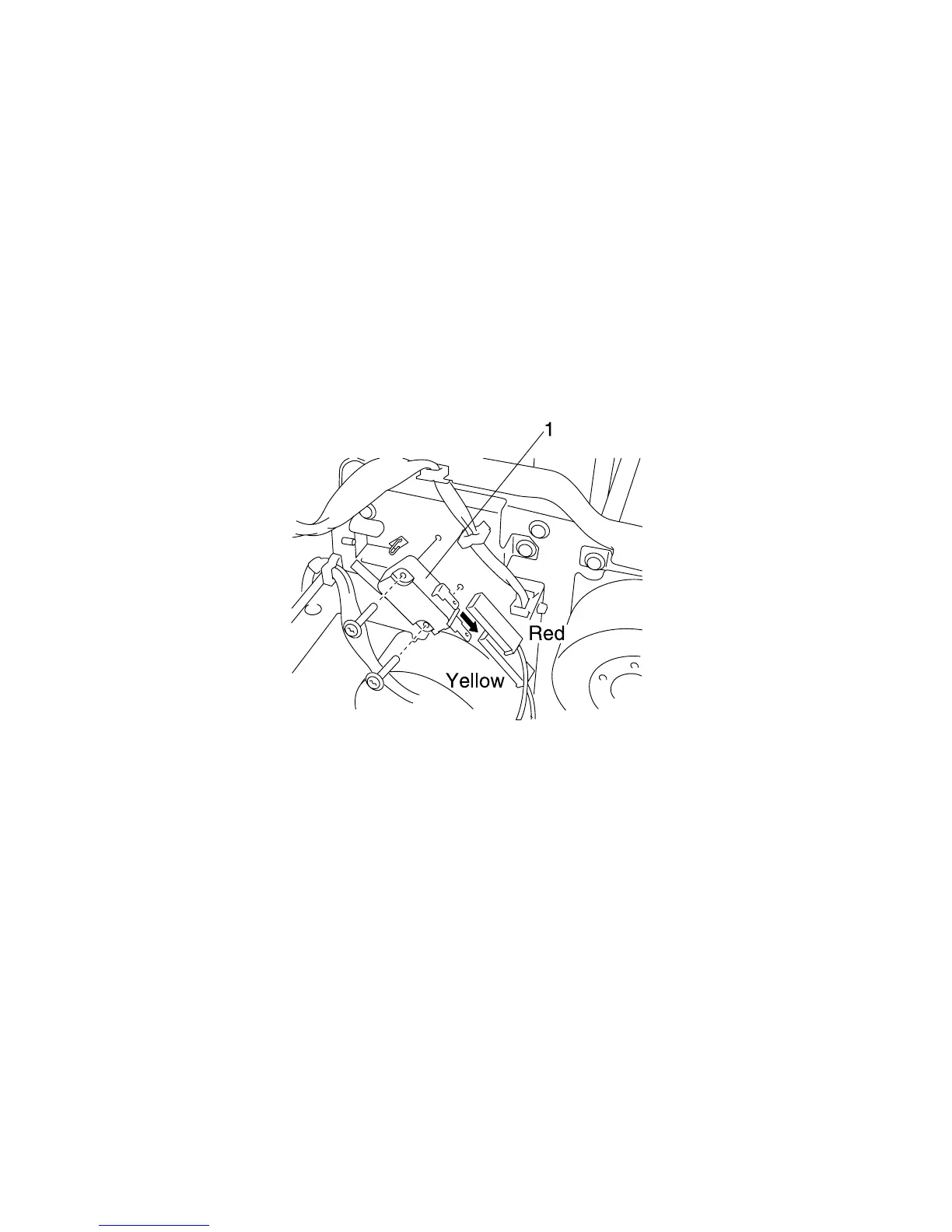

6. Remove the right door interlock switch S2 (1). (2 screws, 2
connectors)
To Next Page
