4-46 Service Manual
4023-001
Power Unit Cooling Fan Motor (M4) Removal
1. Remove the main board (PWB-A). See “Printer Main Engine
Board (PWB-A) Removal” on page 4-38.)

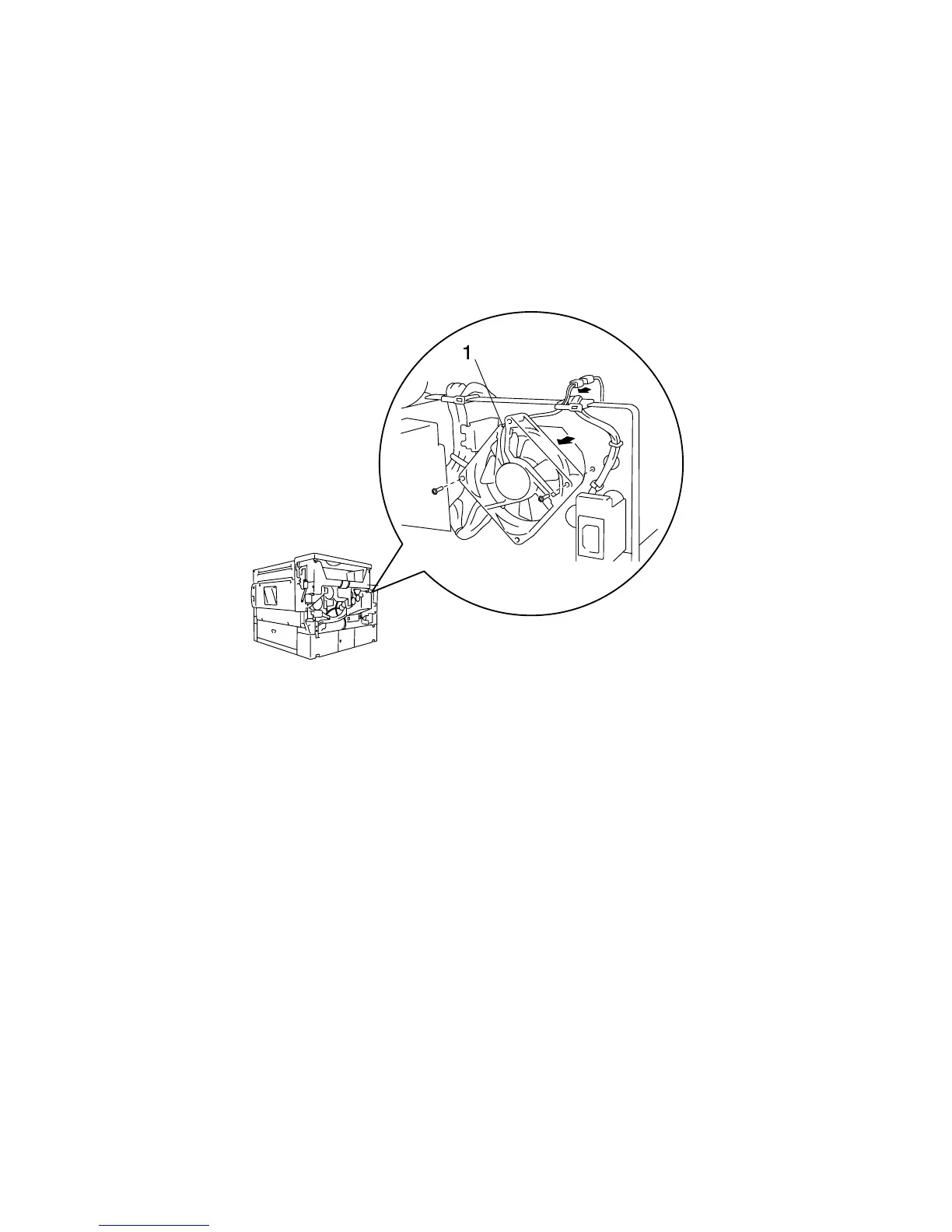

2. Remove the power unit cooling fan motor M4 (1). (2 screws, 1
connector)
