4-22 Service Manual
4023-001

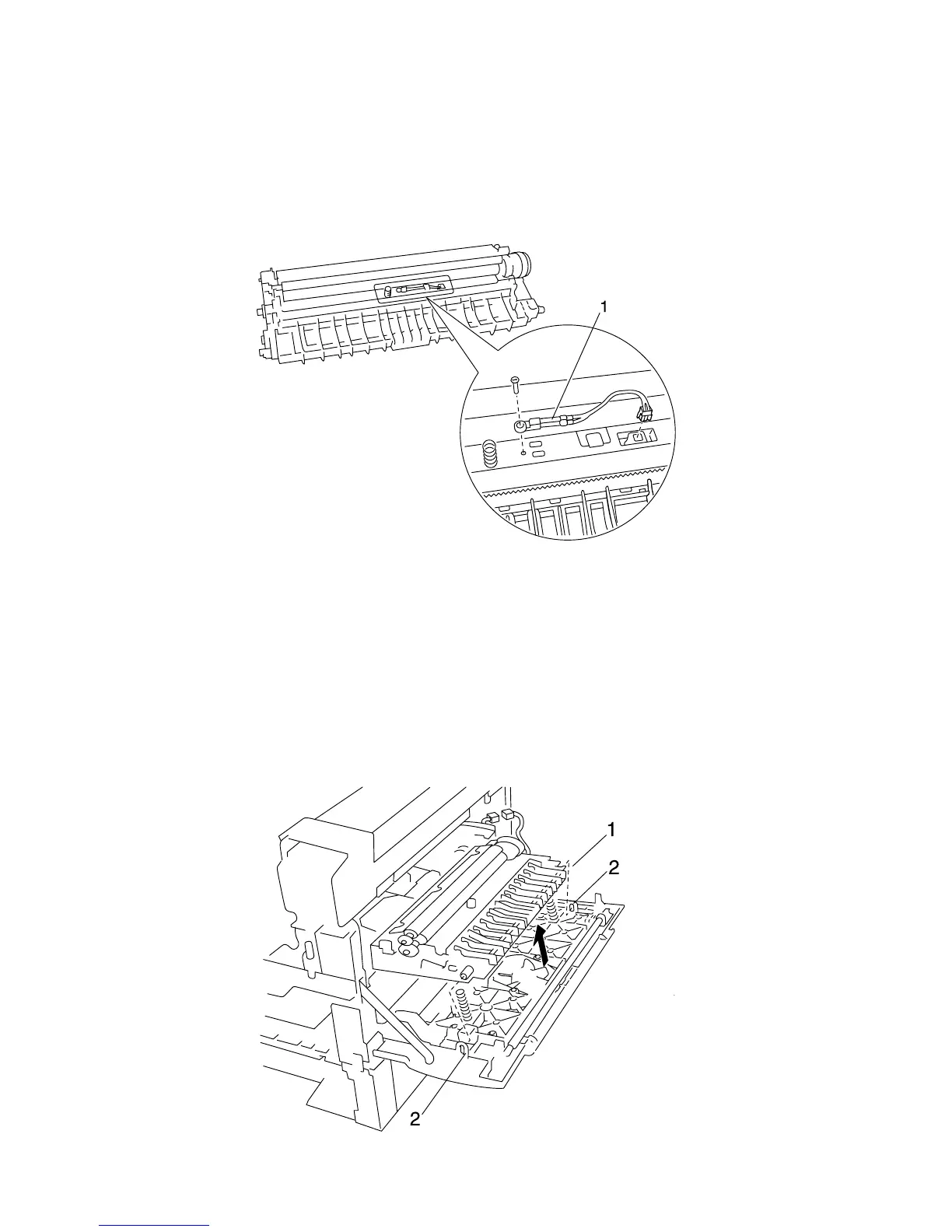

Image Cartridge/PC (I/C) Thermistor (TH2) Removal
1. Remove the image transfer roller. (See “Image Transfer Roller
Removal” on page 4-21.)
2. Remove the I/C thermistor (TH2). (1 screw, 1 connector)
Image Transfer Unit Removal
1. Raise the right cover release lever and open the right cover.
2. Remove two projections (2) and the image transfer unit (1). (4
connectors)
Note: Because the harness is short, slightly raise the image
transfer unit (1) and unplug the connector before attempting to
remove the image transfer unit (1).
To Next Page
