Repair Information 4-31
4023-001
Paper Exit Full Sensor (PC12) Removal
1. Remove the top cover. (2 screws)
Note: When reinstalling the top cover, securely insert the
projections of the cover into the appropriate cutouts of the
printer frame.

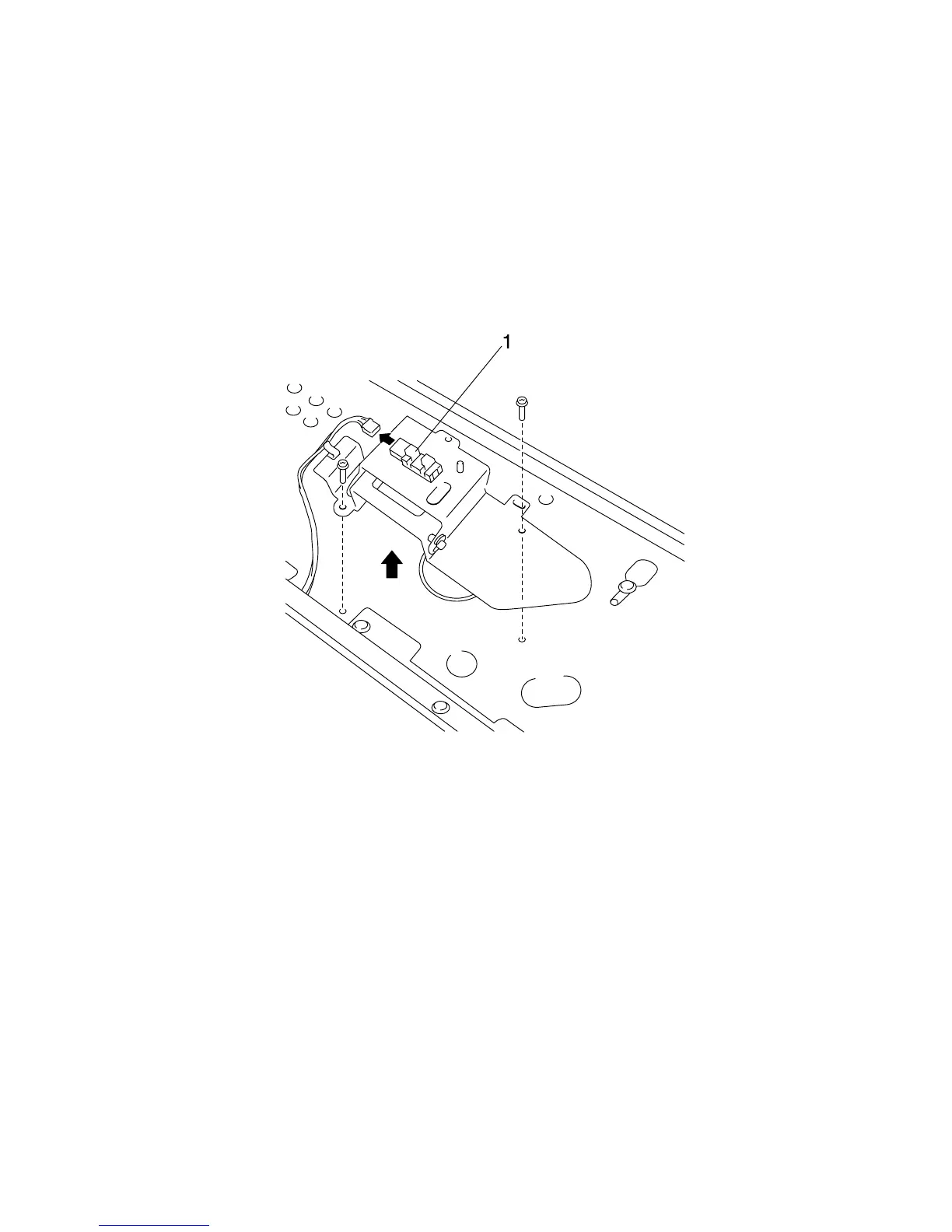

2. Remove the paper exit full sensor PC12 (1). (1 screw, 1
connector)
To Next Page
