General Information 1-75
4023-001

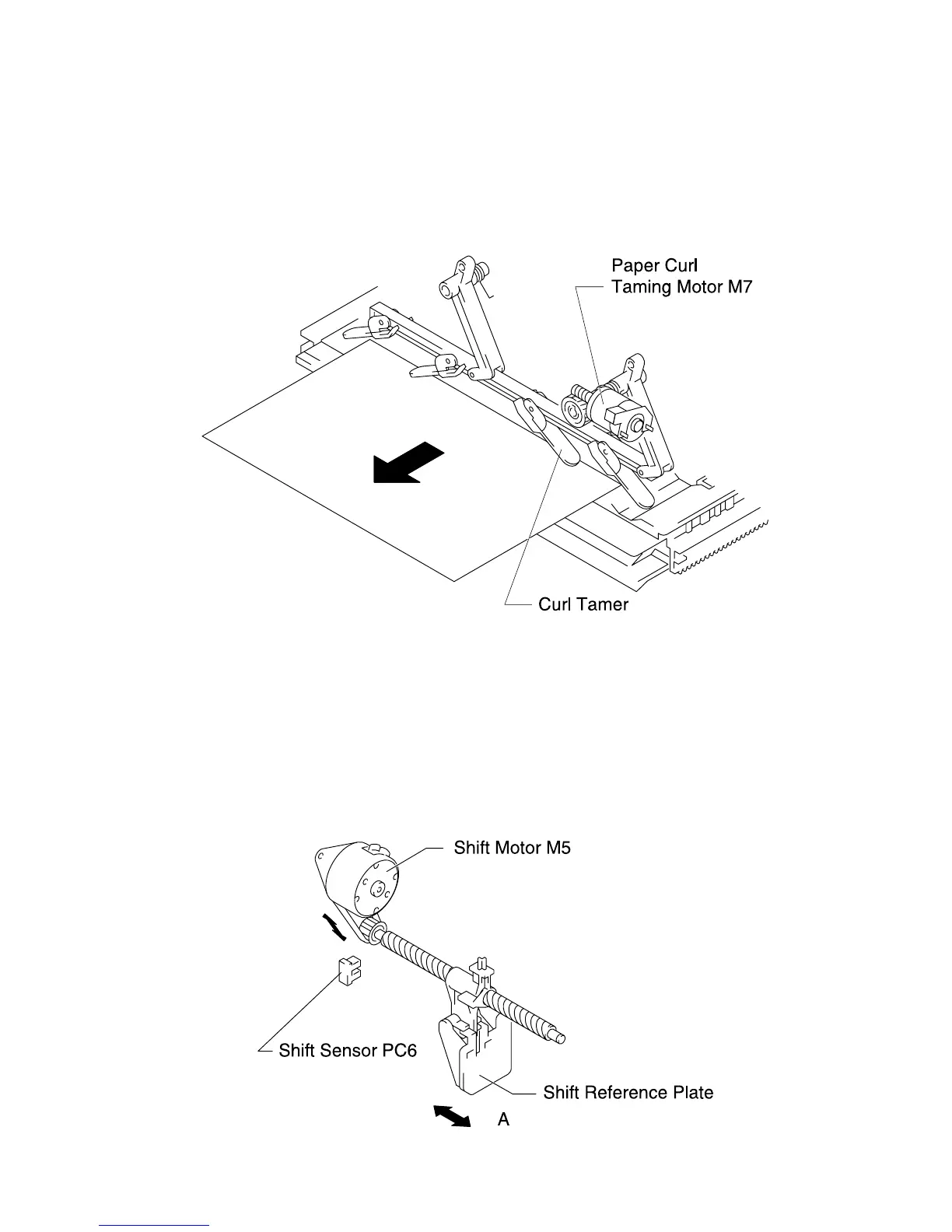

Paper Curl Taming Mechanism
A curl tamer is installed in the finisher. Before the CD aligning motion
occurs, the curl tamer lowers to press the trailing edge of the print
transported onto the finisher tray. The paper curl taming motor turns
forward and backward to lower and retract the curl tamer.
Shifting Mechanism
A print set/stack which has been aligned and stapled together
transports to the non-sort position or sort position. The shift motor
energizes, turning the spiral shaft which moves the shift reference
plate. The shift sensor detects the home position of the shift
reference plate. The home position serves as reference for
movement of the shift reference plate.
