General Information 1-77
4023-001

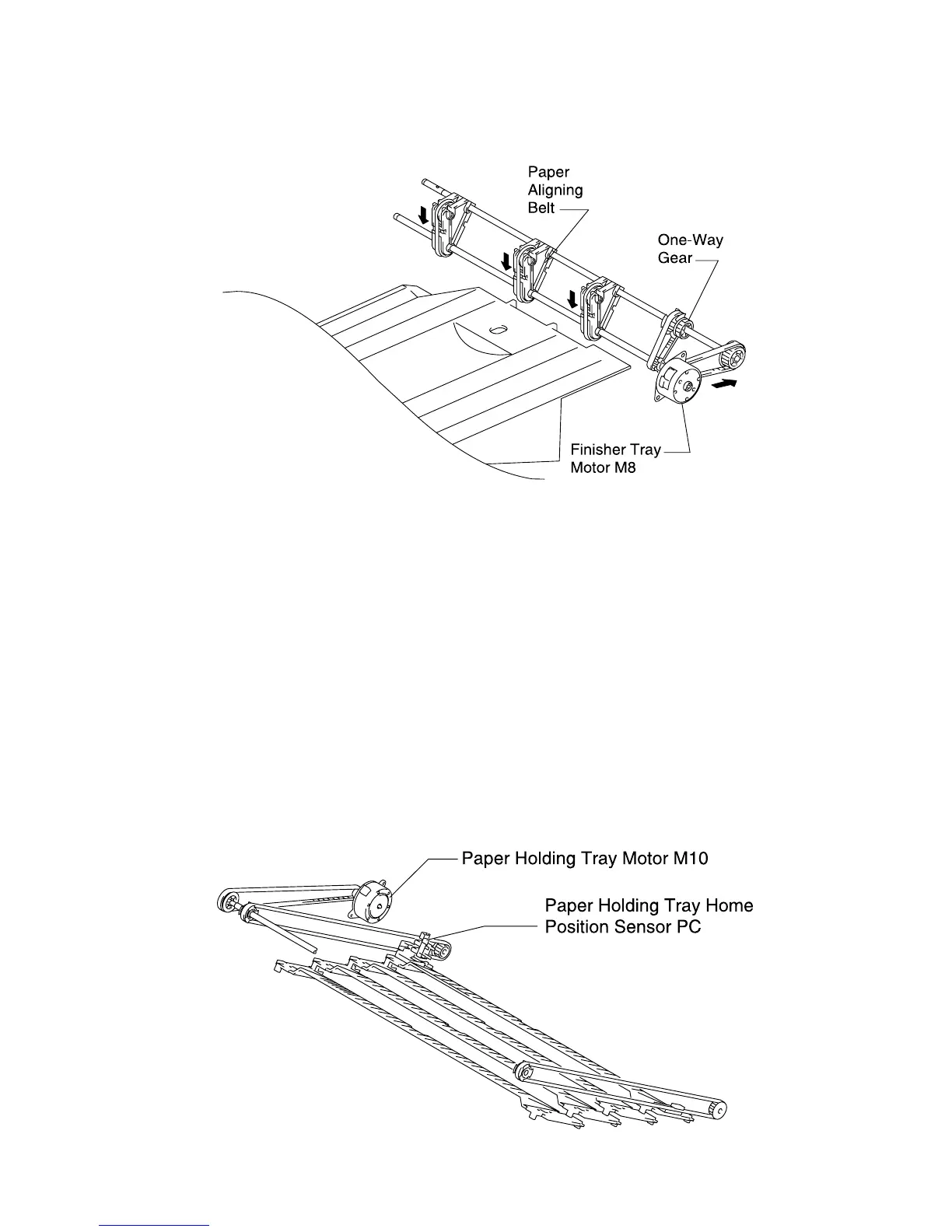

motor rotates backward, retracting the finisher tray, the paper
aligning belts do not turn because of the one-way gear.
Paper Holding Tray
The paper holding tray retracts to allow the processed print set/stack
to drop on the elevator tray.
The paper holding tray motor drives gears and belts which move the
paper holding tray.
The tray is divided into four parts. The retracted position of the tray
varies according to the paper size.
The paper holding tray home position sensor detects the home
position of the tray. The home position serves as reference for
retracting the paper holding tray.
