4-4 Service Manual
4023-001
Adjustments
Printer (Main)
Image Registration Adjustment

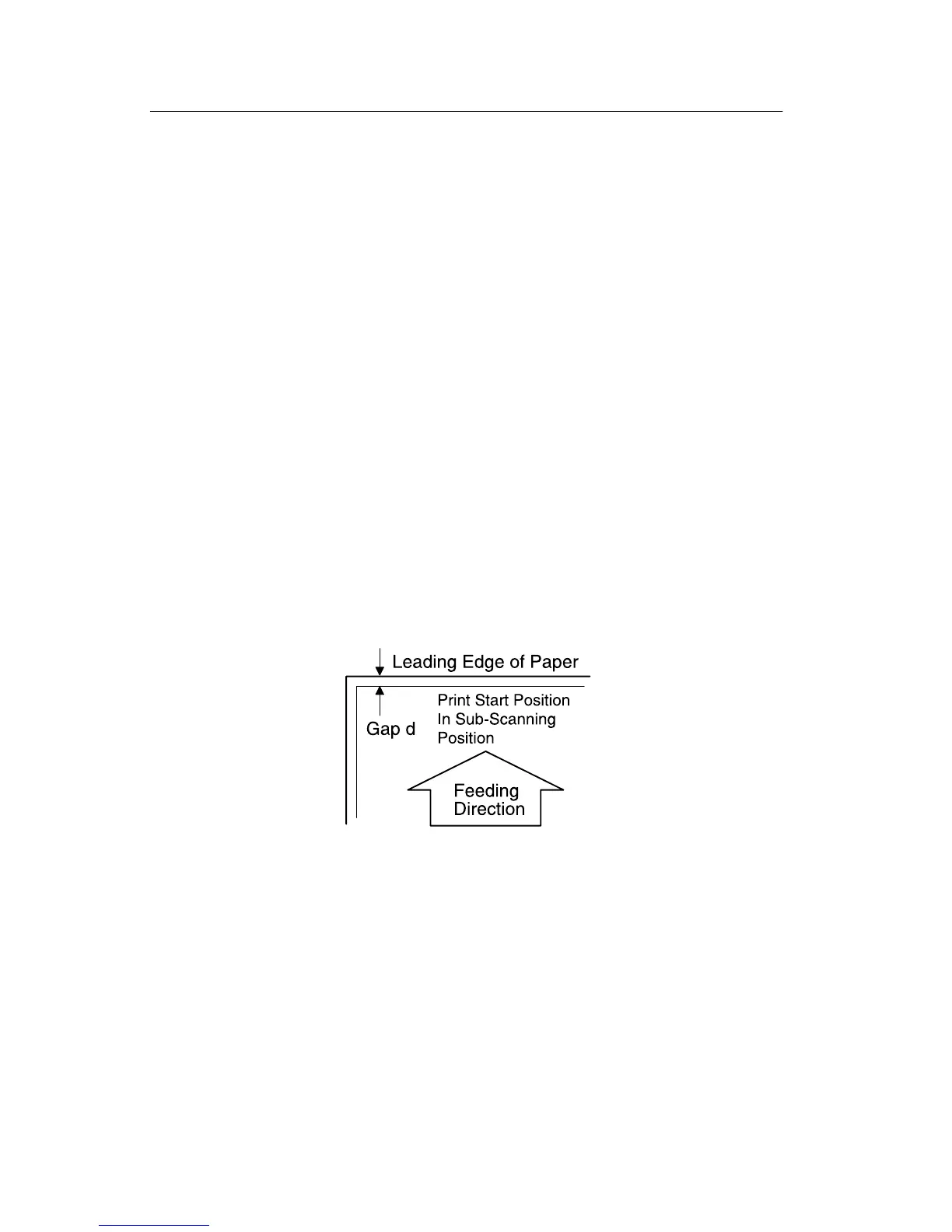

If the starting position of the image (registration gap (d)=4mm) in the
sub-scanning direction is not suitable, adjust the gap by following
this procedure:
Visual Adjustment
1. Turn the printer off.
2. Press Select and Return as you turn the machine on.
3. Select REGISTRATION from the Configuration Menu Group.
4. Scroll to the margin you want and press Select. See the
following table.
5. Scroll to the value you want and press Select. A Quick Test
page prints.
6. Repeat margin adjustment until the registration gap (d) is the
appropriate distance.
Margin Valid Range
Top Margin =-50 to 50 (0)
Tray 1 Left Mar =-50 to 50 (0)
Tray 2 Left Mar =-50 to 50 (0)
Tray 3 Left Mar =-50 to 50 (0)
Tray 4 Left Mar =-50 to 50 (0)
Tray 5 Left Mar =-50 to 50 (0)
Note: Tray 2 through 5 menu settings appear only if the corresponding
tray is installed.
To Next Page
