Lexmark Optra W810 - Image Cartridge;Pc (I;C) Cooling Fan Motor (M9) Removal

4-36 Service Manual
4023-001
Image Cartridge/PC (I/C) Cooling Fan Motor (M9)
Removal
1. Remove the eraser duct assembly. (See “Eraser Duct
Assembly Removal” on page 4-32.)

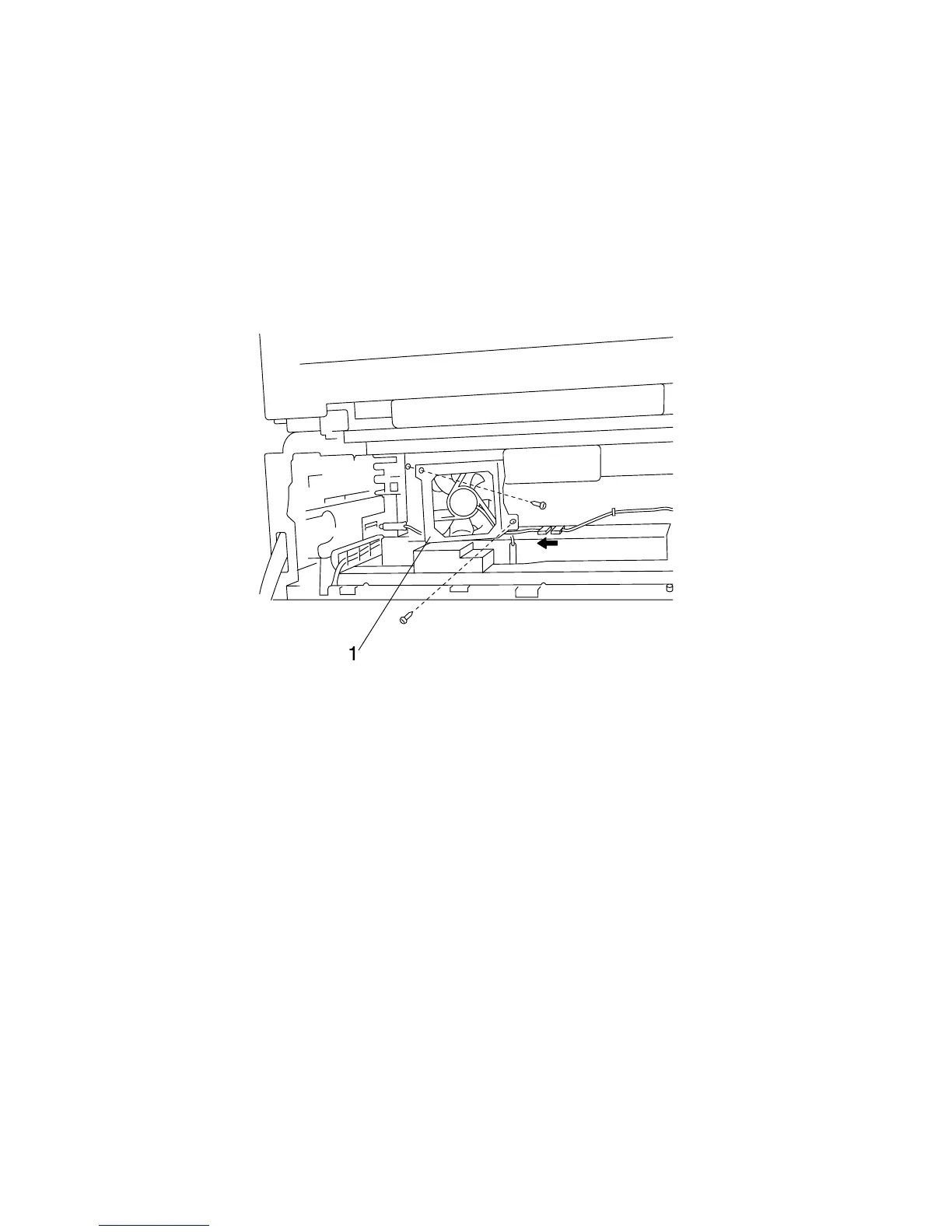

2. Remove the I/C cooling fan motor M9 (1). (2 screws, 1
connector)
