4-68 Service Manual
4023-001
Duplex Unit Removal Procedures

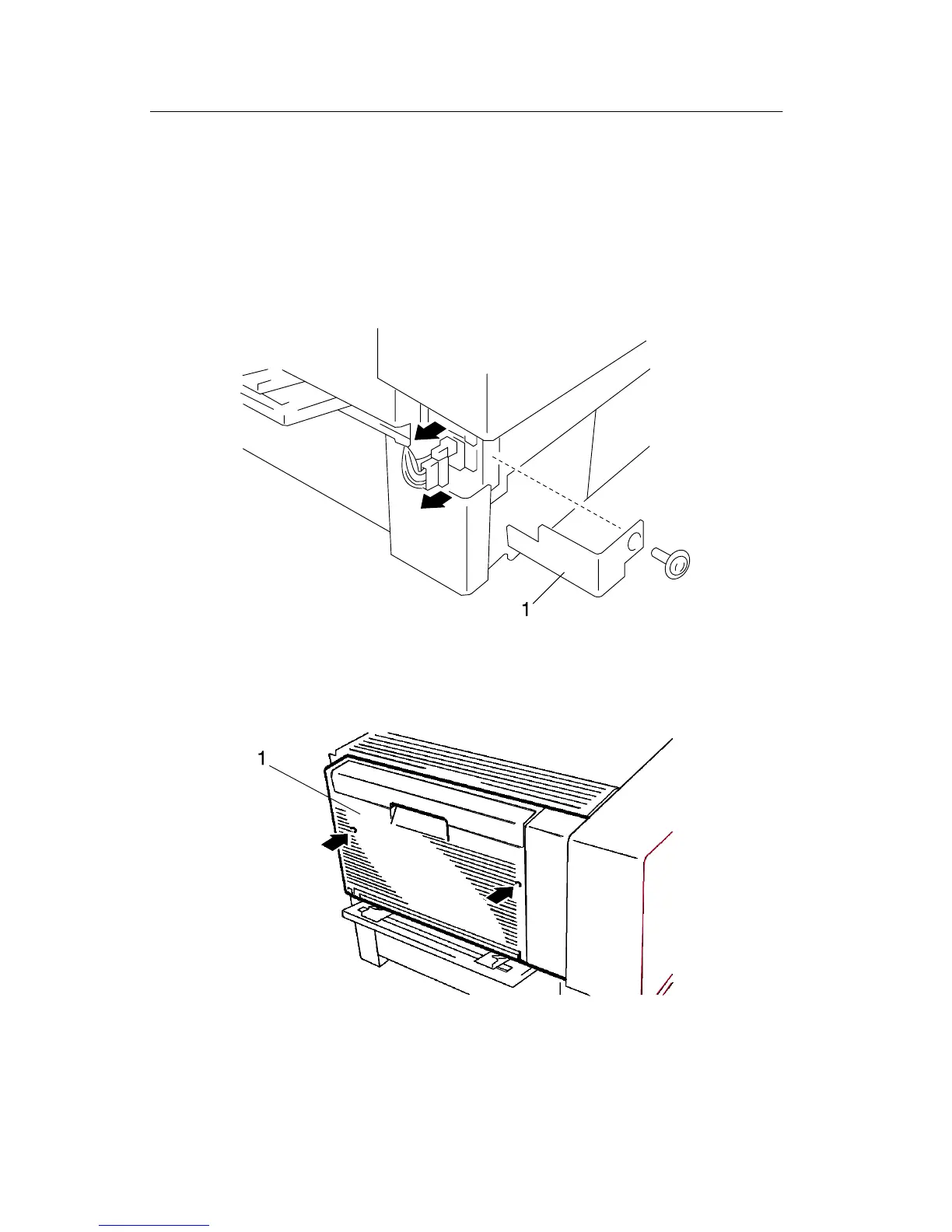

Duplex Unit Removal
1. Remove the wiring cover (1). (1 screw)
2. Unplug the 2 connectors.
3. Remove the duplex unit (1). (2 screws)
