Repair Information 4-49
4023-001
Bottle Cover Sensor (PC10) Removal
1. Remove the toner cartridge.
2. Remove the rear cover. (6 screws)

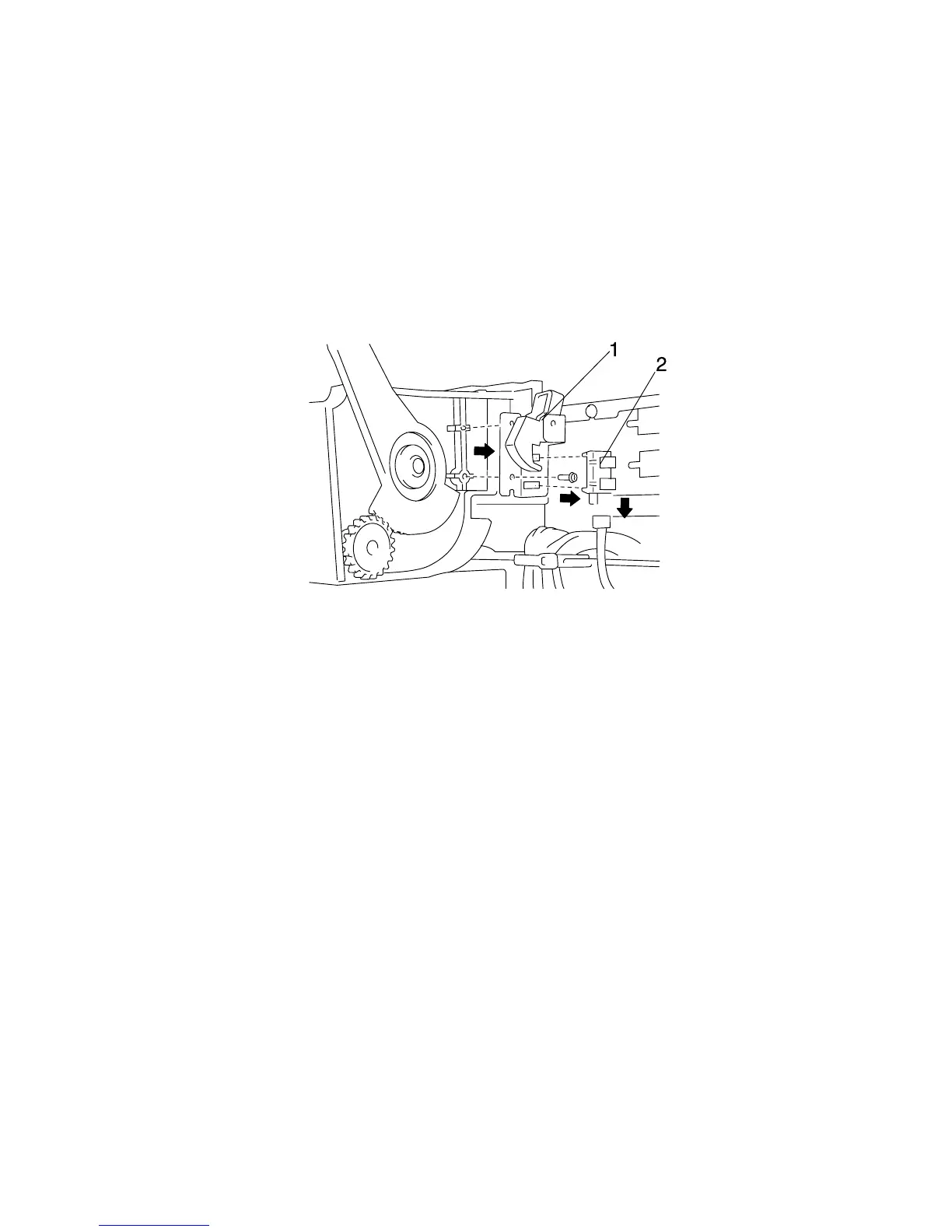

3. Remove the bottle cover sensor assembly (1). (1 screw, 1
connector)
4. Remove the bottle cover sensor (2) (PC10).
