Lexmark Optra W810 - 4023-001; Fusing Unit Removal; Paper Exit Sensor (PC3) and Actuator Removal

Repair Information 4-27
4023-001
Fusing Unit Removal

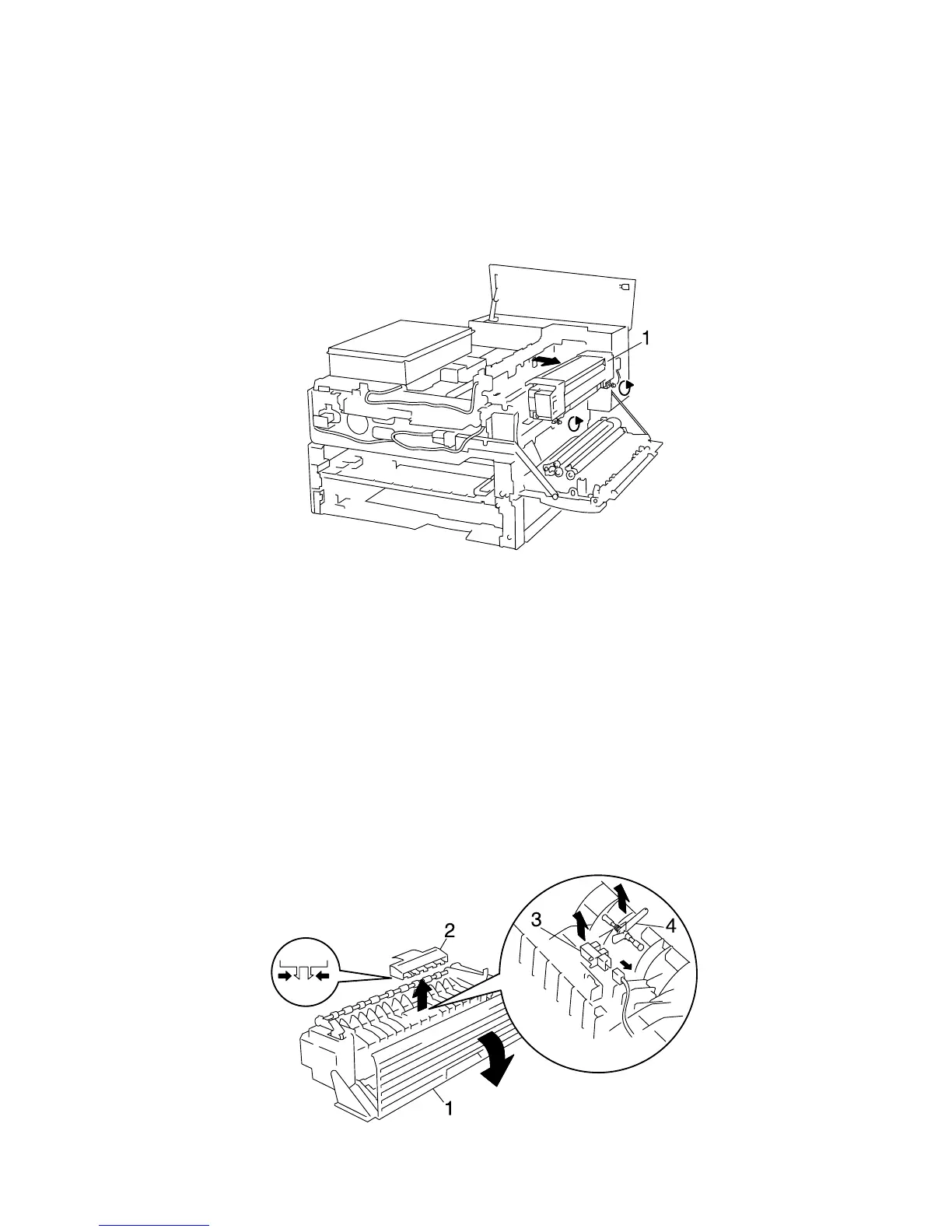

1. Raise the right cover release lever and open the right cover.
2. Loosen 2 screws and remove the fusing unit (1).
Paper Exit Sensor (PC3) and Actuator Removal
1. Remove the fusing unit. (See “Fusing Unit Removal” on
page 4-27.)
2. Open the fusing unit cover (1).
3. Compress projections and remove the paper exit sensor
cover (2).
4. Remove the paper exit sensor (PC3) (3).
5. Remove the actuator (4).
