Locations 5-33
4023-001

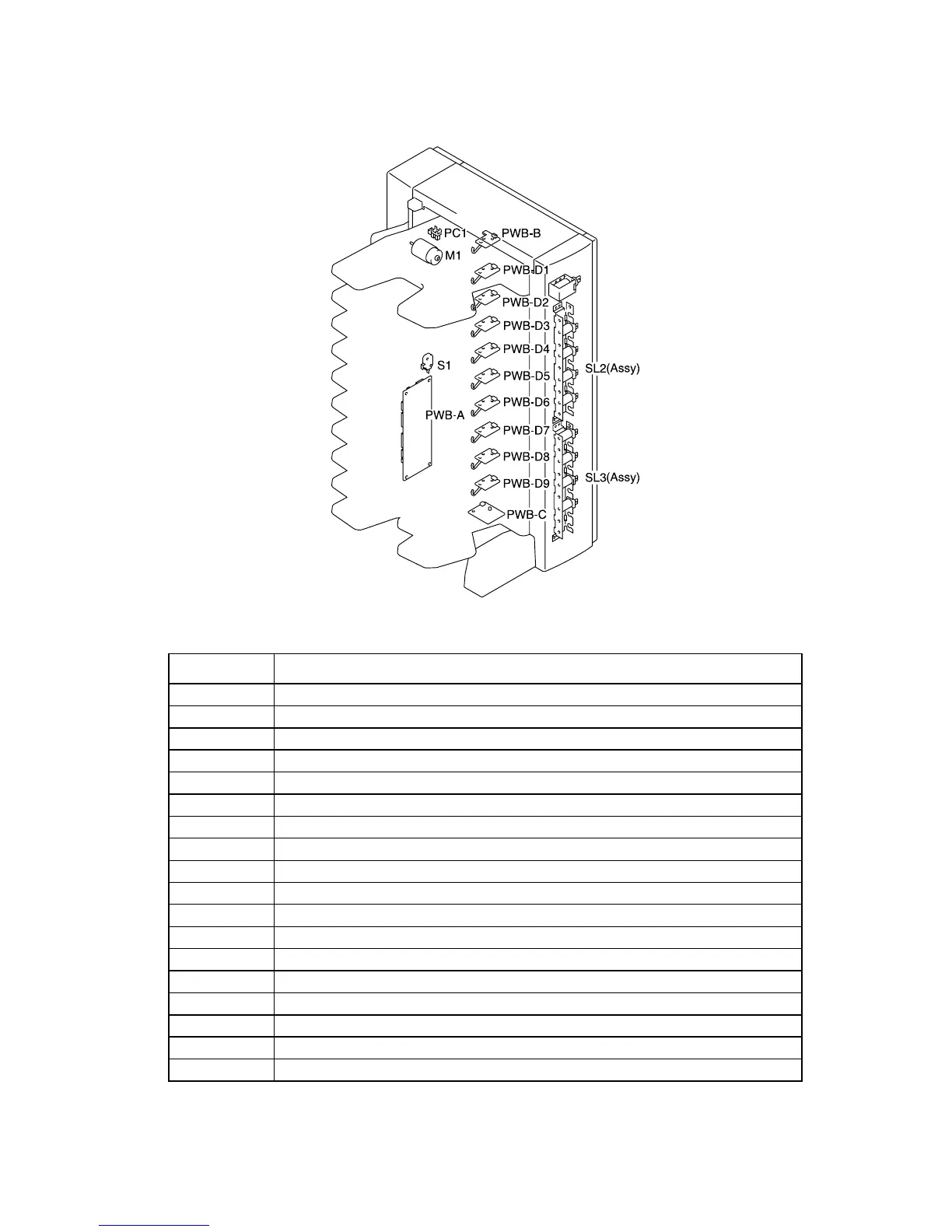

Mailbox Storage Unit: Electrical Components
Symbol Name
M1 Transport Motor
PC1 Transport Motor Pulse Detection Switch
PWB-A Main Board
PWB-B Paper Empty Detecting Sensor Board (1st bin)
PWB-D1 Paper Empty Detecting Sensor Board (2nd bin)
PWB-D2 Paper Empty Detecting Sensor Board (3rd bin)
PWB-D3 Paper Empty Detecting Sensor Board (4th bin)
PWB-D4 Paper Empty Detecting Sensor Board (5th bin)
PWB-D5 Paper Empty Detecting Sensor Board (6th bin)
PWB-D6 Paper Empty Detecting Sensor Board (7th bin)
PWB-D7 Paper Empty Detecting Sensor Board (8th bin)
PWB-D8 Paper Empty Detecting Sensor Board (9th bin)
PWB-D9 Paper Empty Detecting Sensor Board (10th bin)
PWB-C Paper Exit Sensor Board (common to all bins)
S1 Sorter Set Switch
SL1 1st Bin Switching Solenoid
SL2 Deflector Solenoid Asm 1 (2nd–5th bin)
SL3 Deflector Solenoid Asm 2 (6th–9th bin)
