Repair Information 4-67
4023-001
500-Sheet Cassette (Tray 2 and 3) Paper Take-Up
Solenoid (SL2) Removal

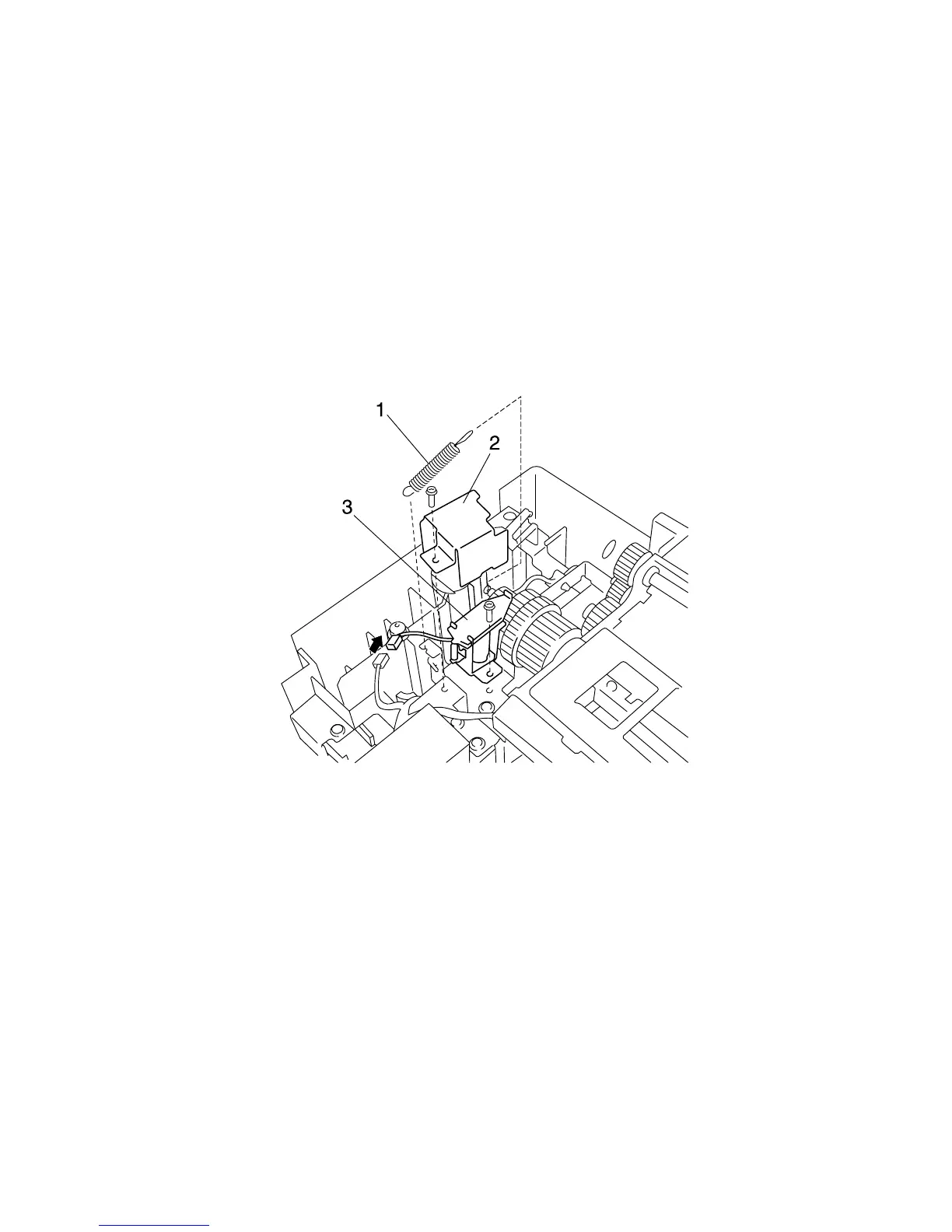

1. Remove the 2nd cassette unit. (See “Double Feed Detection
Sensor Board (PWB-H) Removal” on page 4-60.)
2. Unhook one side of the spring (1).
3. Remove the 2nd cassette paper take-up solenoid (2). (1 screw)
4. Remove the 2nd cassette paper take-up solenoid SL2 (3). (1
screw, 1 connector)
