General Information 1-45
4023-001
Paper Deck 2500-Sheet (LCC) Option

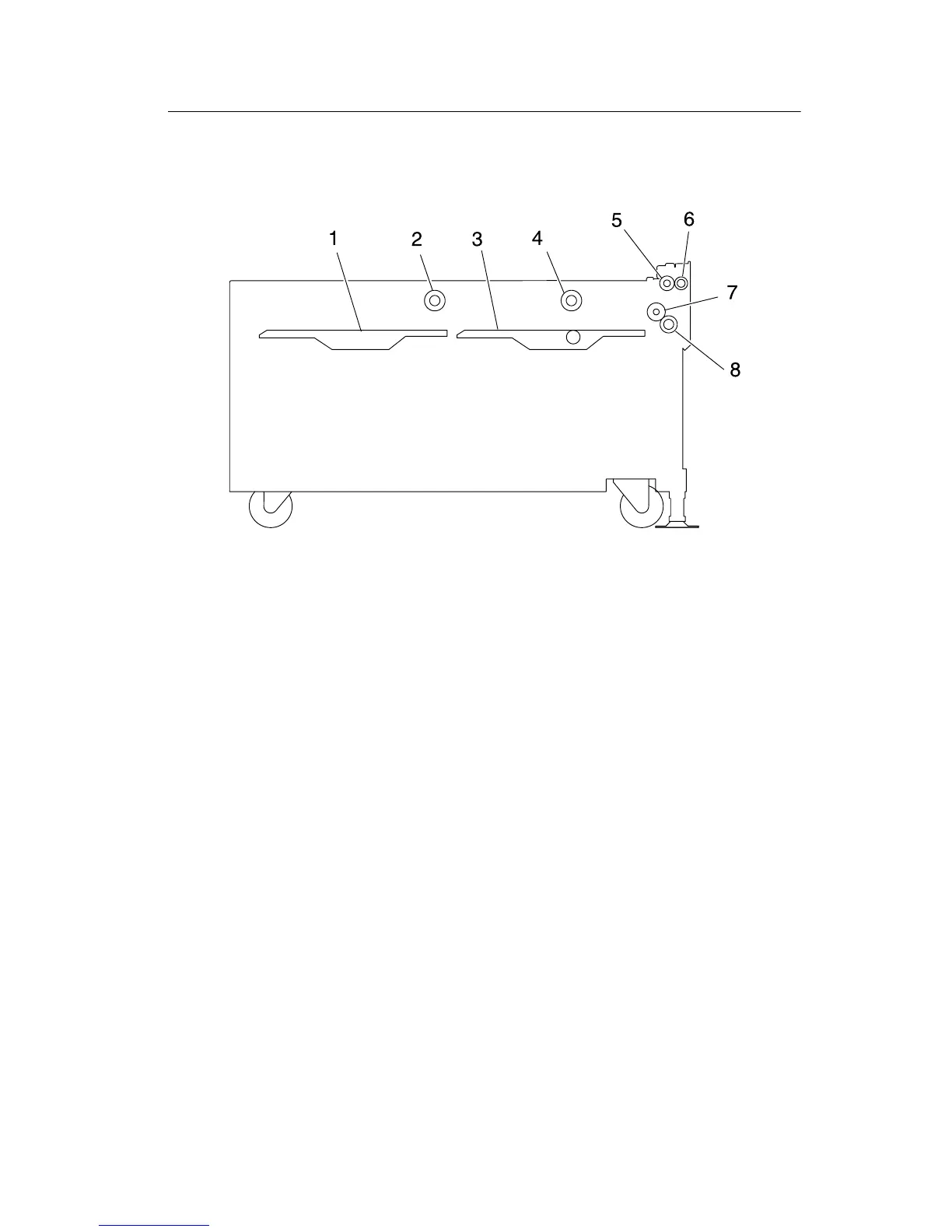

Cross-Sectional View
Vertical Transport Drive Mechanism
Vertical Transport Drive Operation
The Vertical Transport Roller is driven by LCC (paper deck)
transport motor (HMOT). The driving force of HMOT is transmitted
via a gear train and registration clutch (RCL) to the vertical transport
roller which feeds the paper from lift 1 or 2 to the printer. Because of
the long paper path from lift 2, skew tends to occur in the paper fed
1 Lift 2 5 Vertical Transport Roller
2 Paper Take-Up Roll 2 6 Vertical Transport Roll
3 Lift 1 7 Feed Roll
4 Paper Take-Up Roll 1 8 Separator Roll
To Next Page
