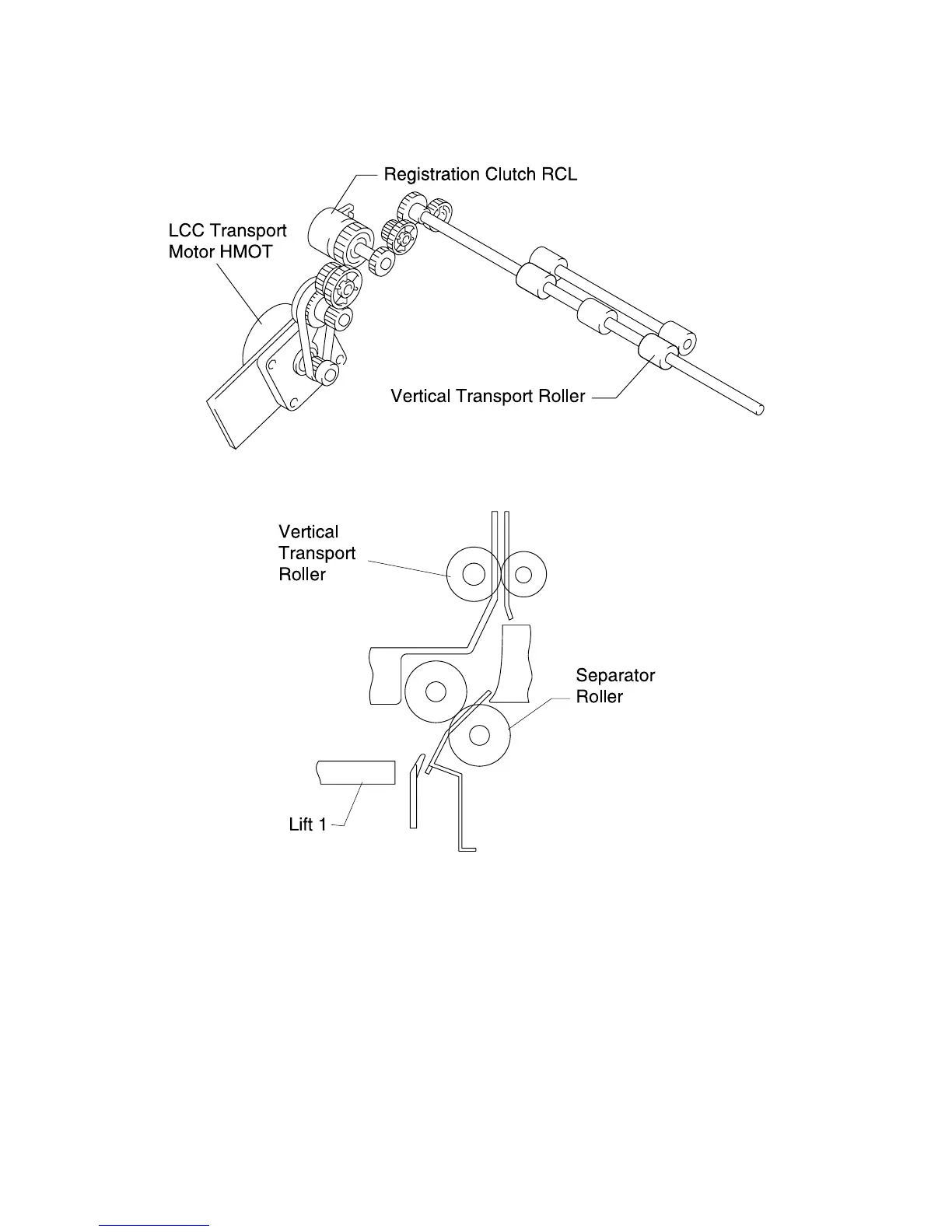

from lift 2. To correct skew, RCL forms a loop in the paper between
the separator roll and vertical transport roller.
Control of LCC Transport Motor HMOT
The printer main engine board energizes and de-energizes HMOT
by sending signals to HMOT through the LCC (paperdeck) main
board (PWB-A). HMOT is a DC motor.
