4-74 Service Manual
4023-001

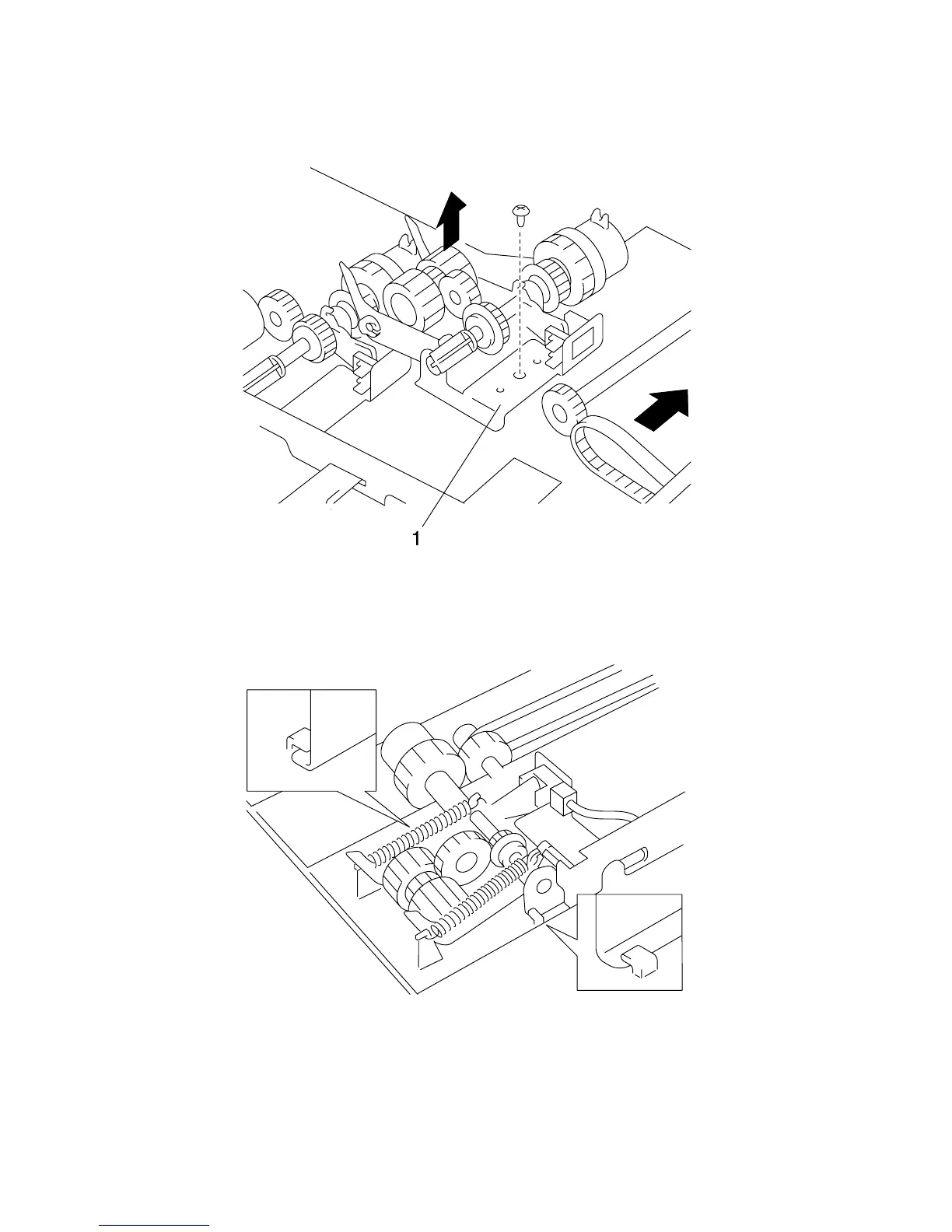

4. Remove 1 screw and slide timing belt toward the clutch side.
Remove the right paper take-up roll assembly (1).
Note: When mounting the right paper take-up roll assembly, fit the
ends of the assembly into position as shown.
