Lexmark Optra W810 - Page 223

Repair Information 4-19
4023-001

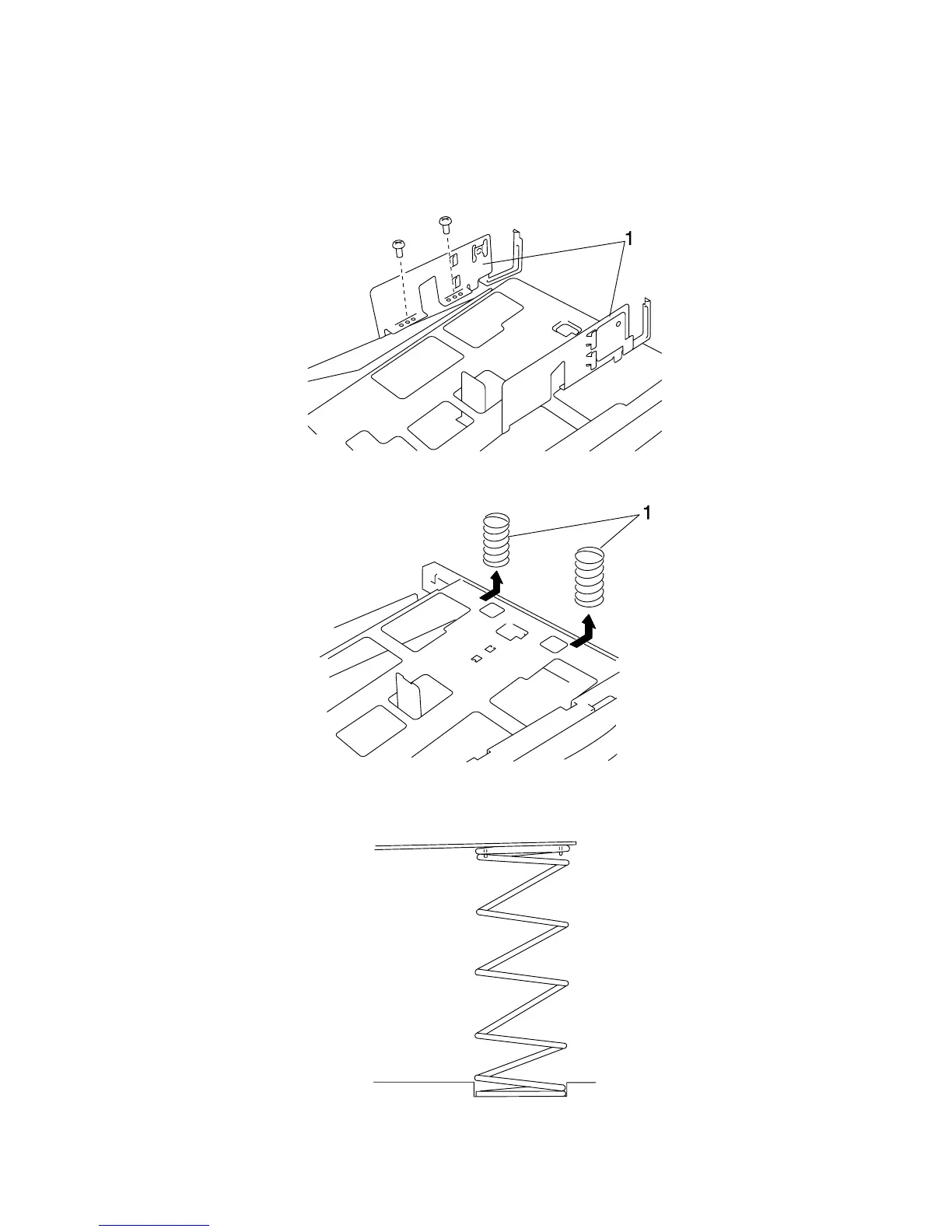

1. Remove the cassette.
2. Remove the two edge guide assemblies (1). (2 screws each)
3. Replace the springs (1).
Note: When installing the springs, make sure both ends of the
spring are properly secured as illustrated.
