4-78 Service Manual
4023-001

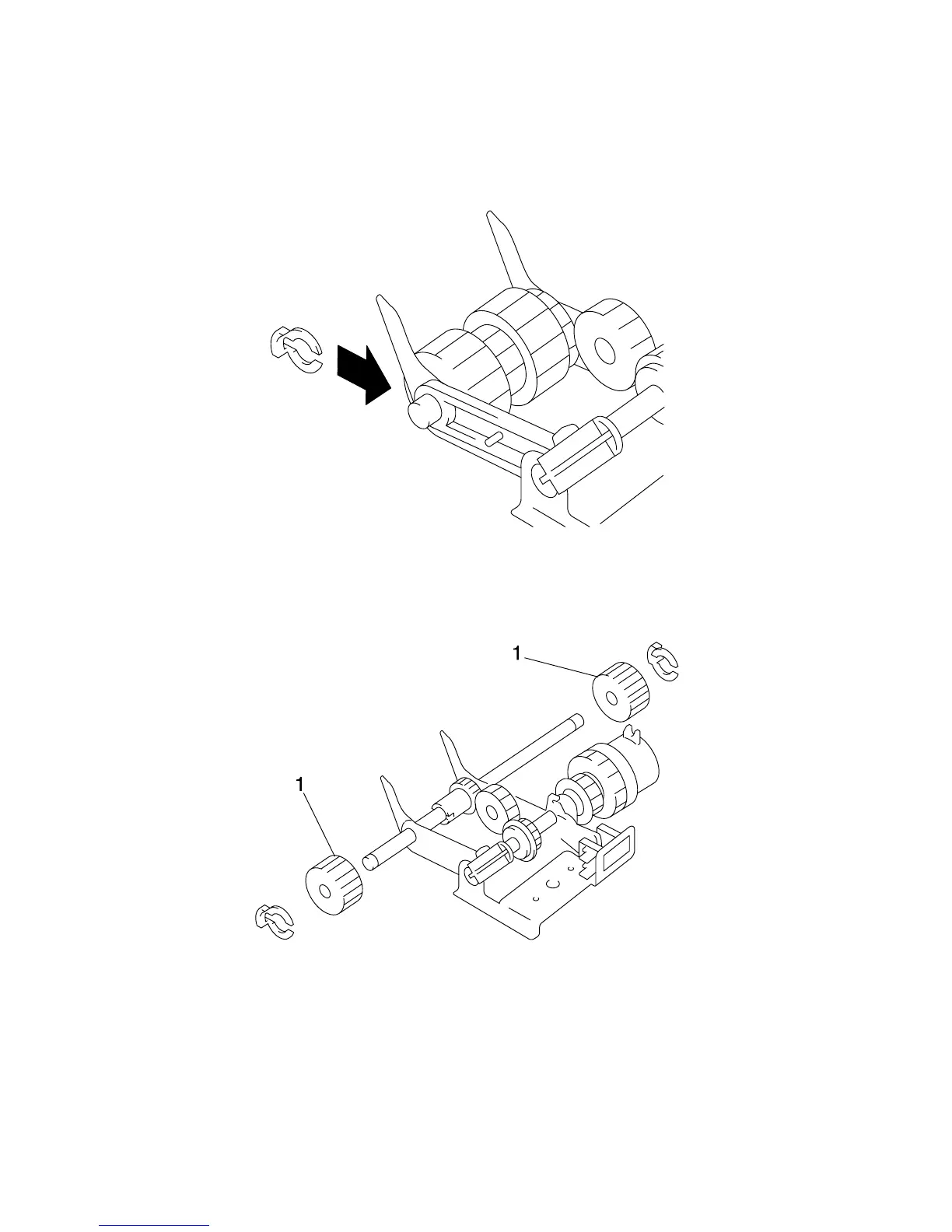

Note: When mounting paper take-up roll 1, face the C-clip as
shown.
9. Remove paper take-up roll 2 (1). (2 C-clips)
