Lexmark Optra W810 - Page 294

4-90 Service Manual
4023-001

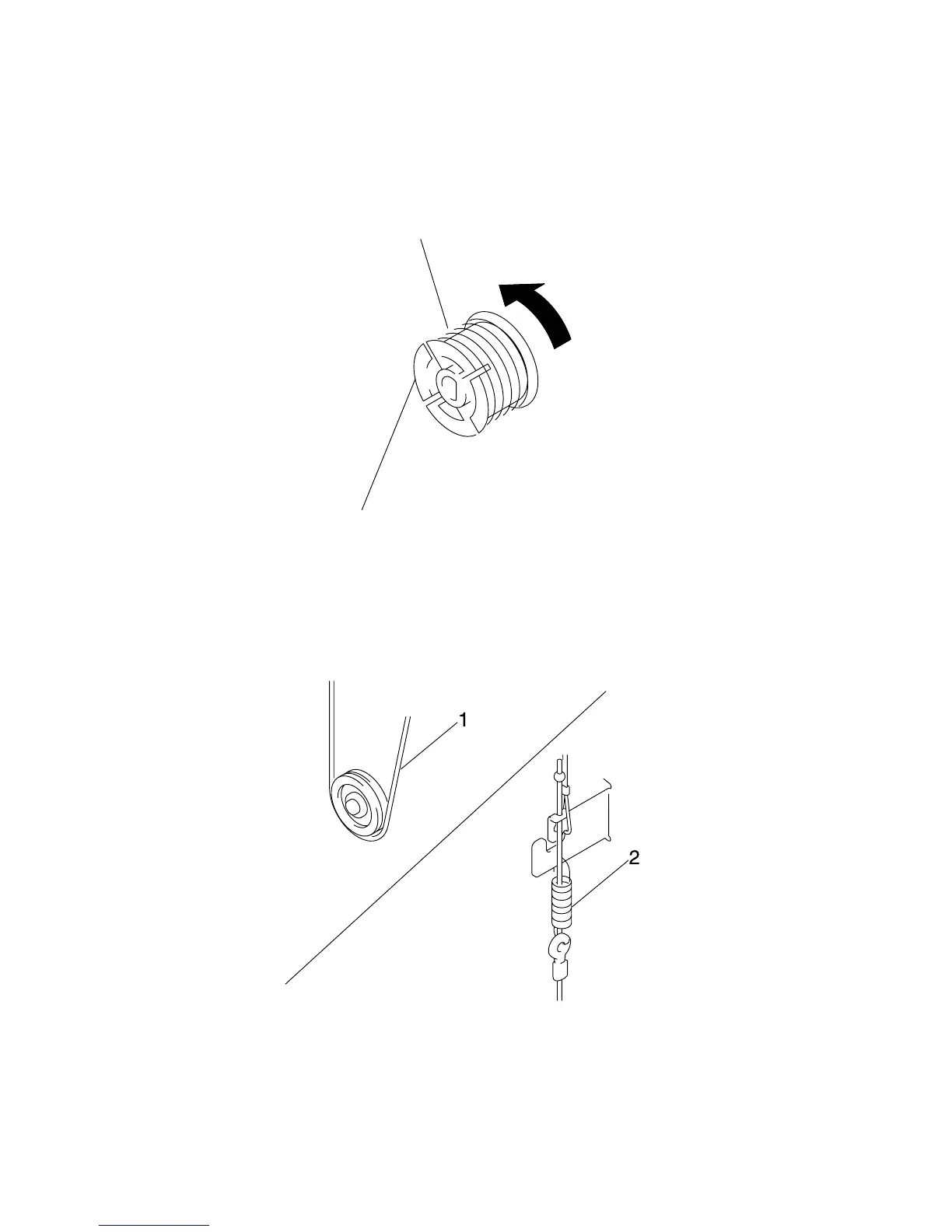

5. Wind the rest of the cable counterclockwise.
6. With the elevator tray in the uppermost position, wind the cable
about 1 turn.
7. Hook the cable (1) to the pulley.
8. Hook the cable (2) to the spring.
9. Pass the cable through the spring and secure it to the hook.
