General Information 1-19
4023-001

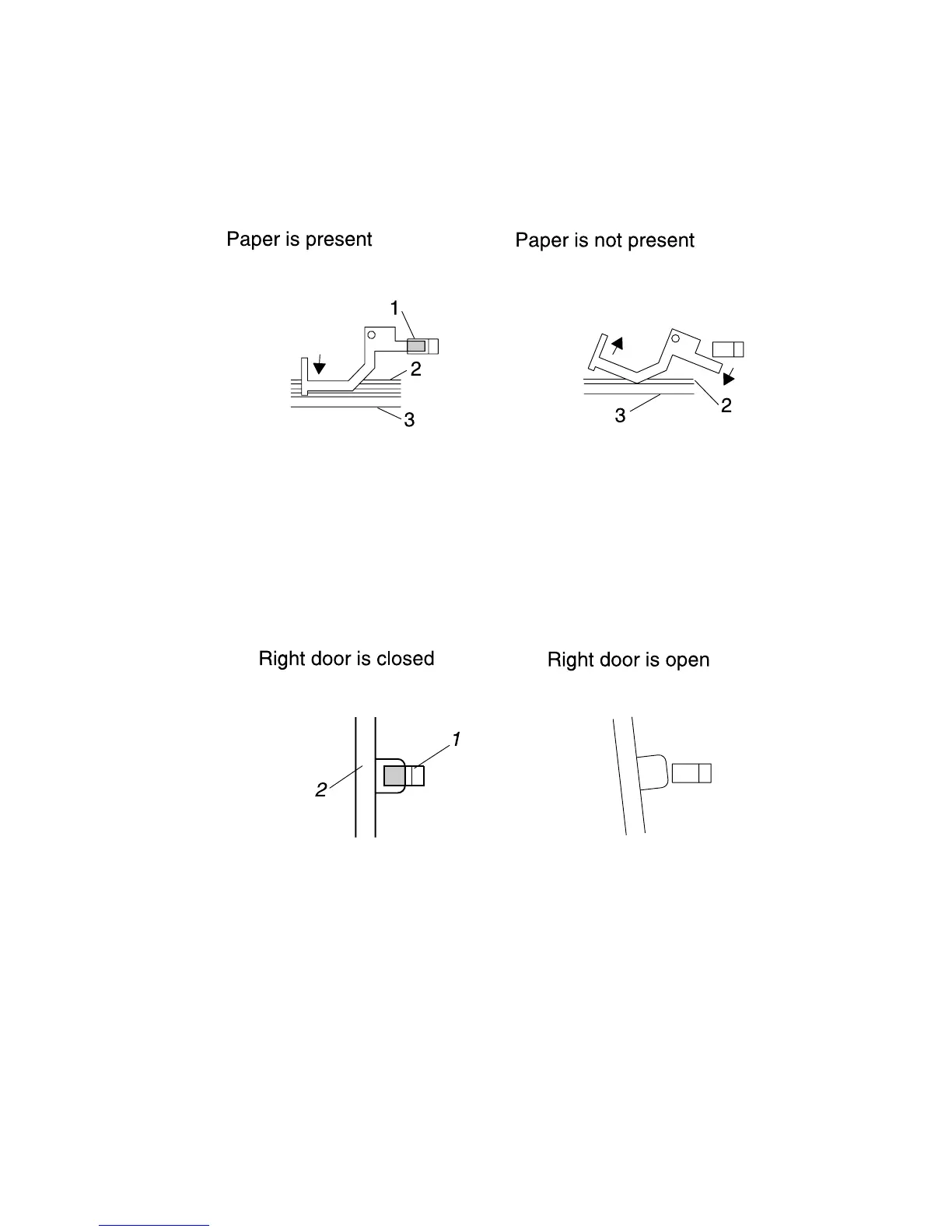

2nd Cassette Paper Near Empty Sensor (PC25)
PC25 detects paper near empty status of the 2nd cassette.
2nd Cassette Right Door Detecting Sensor (PC23)
PC23 detects if the 2nd cassette right door is open or closed. The
right door is normally closed except when removing jammed paper.
1 2nd Cassette Paper Near Empty Sensor (PC25) 3 Paper Lifting Plate
2 Paper
1 2nd Cassette Right Door Detecting Sensor (PC23)
2 Right Door
