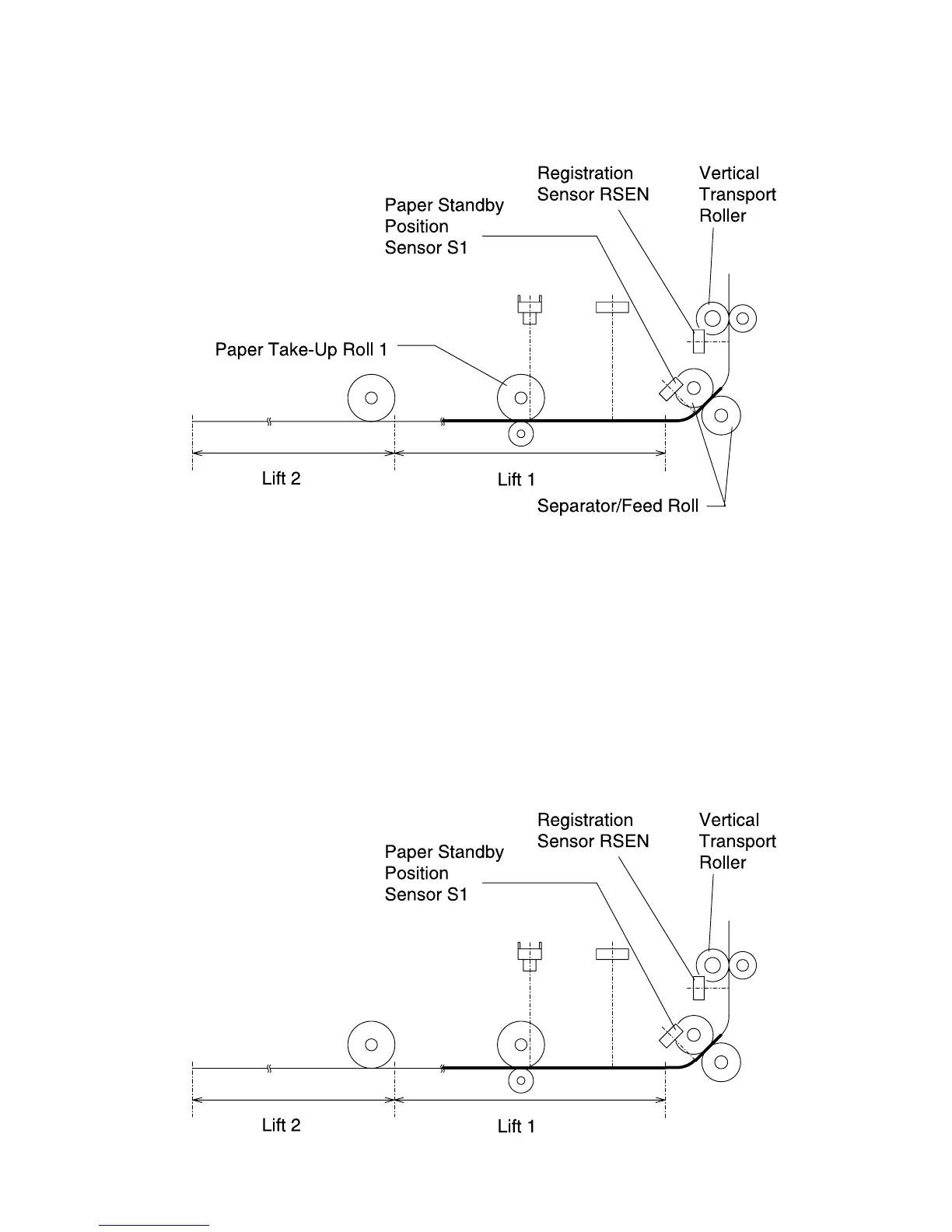

little further to reach the vertical transport roller, and forms a
registration loop, before stopping.
The vertical transport roller transports the paper to the printer. When
the trailing edge of the paper being transported by the vertical
transport roller unblocks paper standby position sensor S1, the
subsequent sheet of paper is transported to the standby position
and the LCC waits for the next paper take-up signal.
Registration clutch RCL de-energizes a given period of time after the
trailing edge of the paper being taken up unblocks registration
sensor RSEN. The next paper take-up signal transmits after the
timer (which starts when the vertical transport roller rotates for the
preceding sheet of paper) runs out.
