General Information 1-65
4023-001

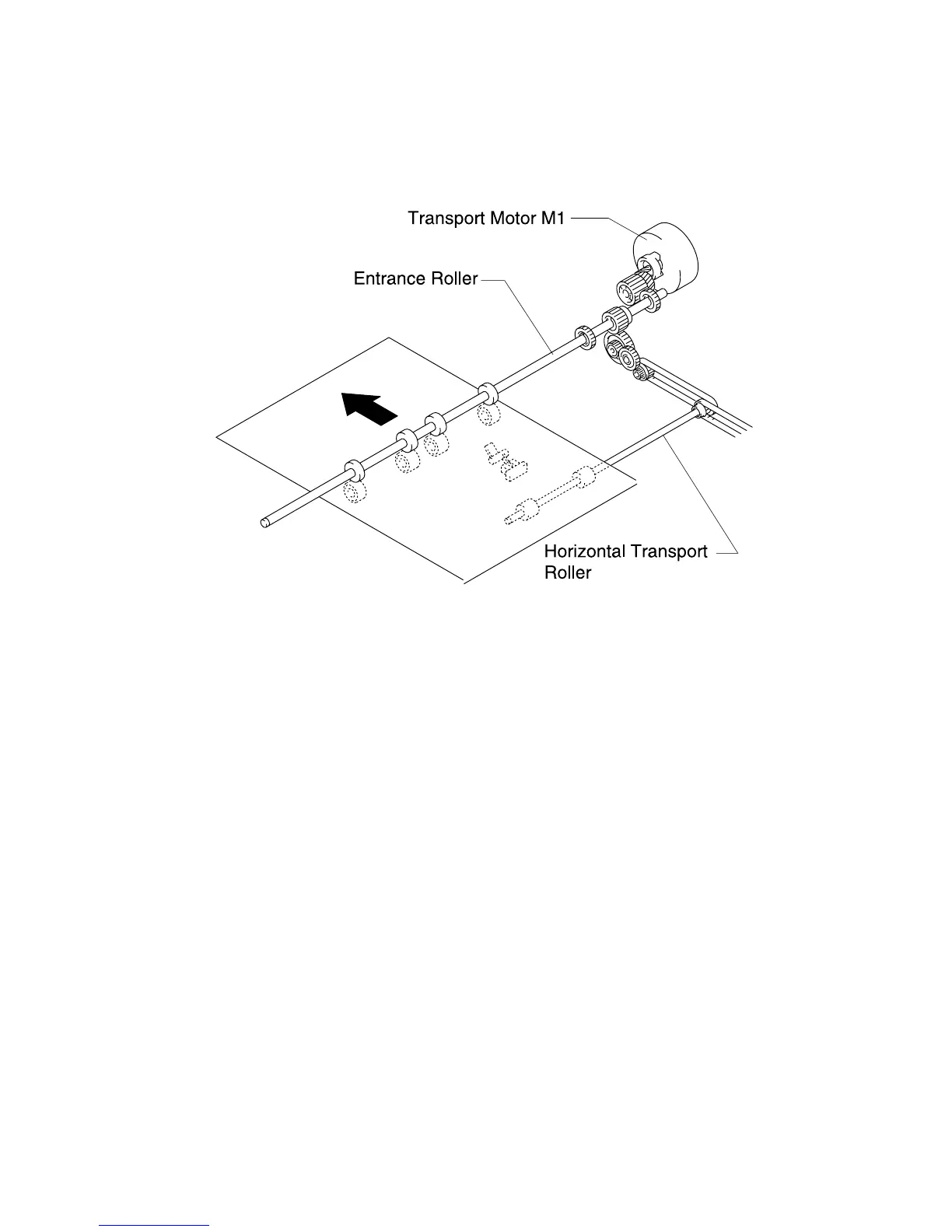

Paper Entrance Transport Mechanism
The transport motor (M1) drives the horizontal transport rollers and
entrance roller, transporting the print into the mailbox/finisher.
The paper ejects from the horizontal transport unit. The entrance
roller guides the paper into the storage unit. The subsequent paper
path varies with the paper output selection. In stacker mode, the 1st
bin switching deflector moves down to close the downward paper
path, forcing the paper toward the 1st bin. The paper then passes to
the paper exit sensor, exit roller, and arrives in the 1st bin tray.
In mailbox mode, if a bin other than 1st bin is designated, the 1st bin
switching deflector moves up, causing the paper to move down
toward the 2nd and subsequent bins. For instance, if the 2nd bin is
designated, the 2nd bin switching deflector moves down to close the
downward paper path, forcing the paper toward the 2nd bin. The
paper then passes to the paper exit sensor, exit roller, and arrives in
the 2nd bin tray. The same applies to other bins. Bin switching
deflectors move down when their corresponding solenoid turns ON.
