LSIS XGT Series User Manual

Chapter 9 NC Control Function
9-67
Parameters
Group
No.
Item
Description
1. Channel
parameters
8.Tool
diameter
compensation
129
How to apply the
compensation value of
the tool diameter
Set the method of applying the compensation
amount of the tool diameter when compensating
the tool diameter.
0: Apply the diameter value
1: Apply the radius value
130

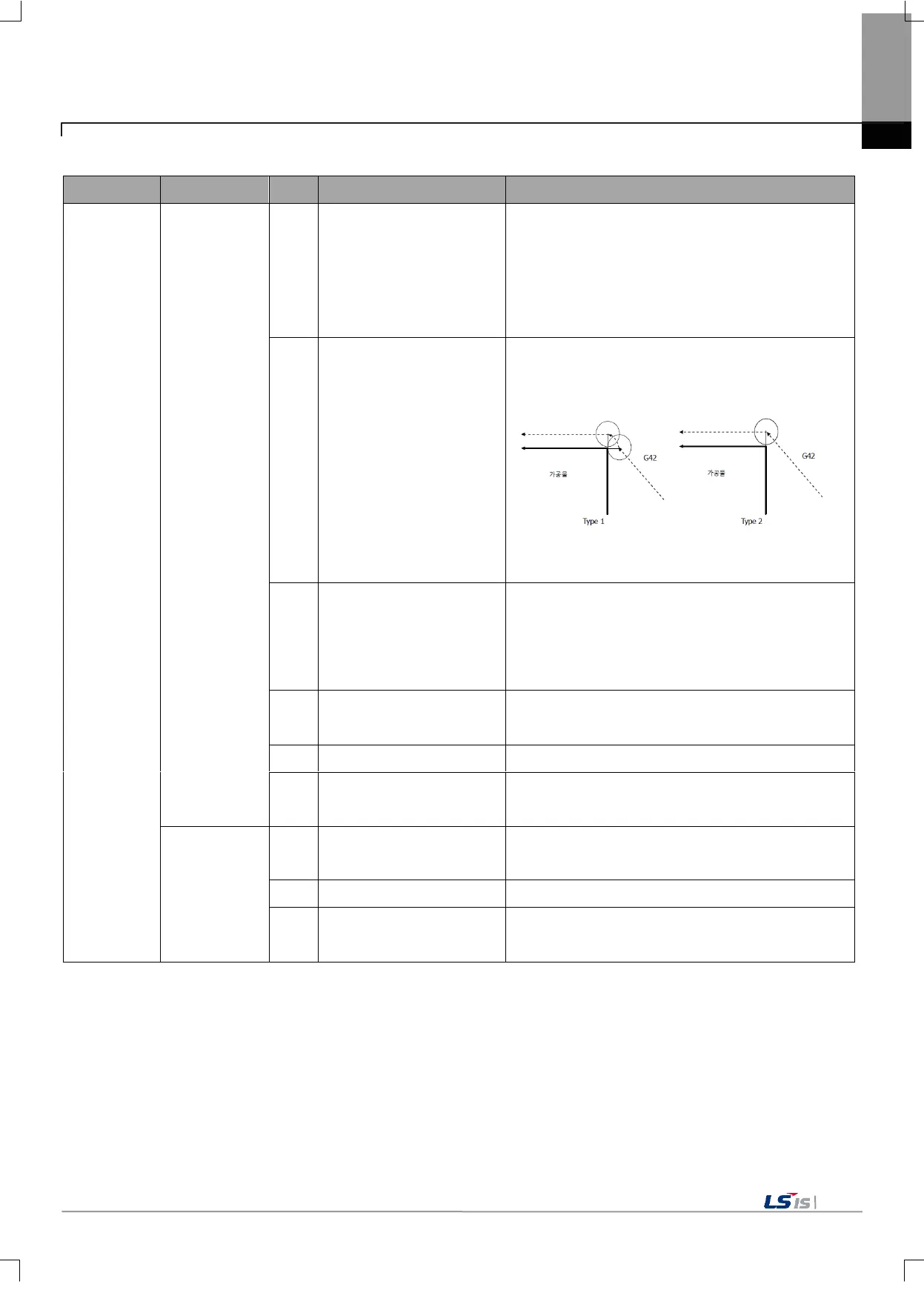

Compensation type of the
tool diameter
Tool diameter Sets the type of traversing method
at the beginning and end of the calibration.
0: Type 1(Bypass traverse)
1: Type 2(Direct traverse)
131
Whether to check the tool
interference during tool
diameter compensation
Set whether to check the tool interference during
tool diameter compensation
0: Do not check
1: Check
1
Compensation amount of
the tool diameter 1
Compensation amount 1 to be used to
compensate the tool diameter
……
……
……
128
Compensation amount of
the tool diameter 128
Compensation amount 128 to be used to
compensate the tool diameter
9. Tool length
compensation
1
Compensation amount 1
of the tool length
Compensation amount 1 to be used to
compensate the tool length
……
……
……
128
Compensation amount
128 of the tool length
Compensation amount 128 to be used to
compensate the tool length
