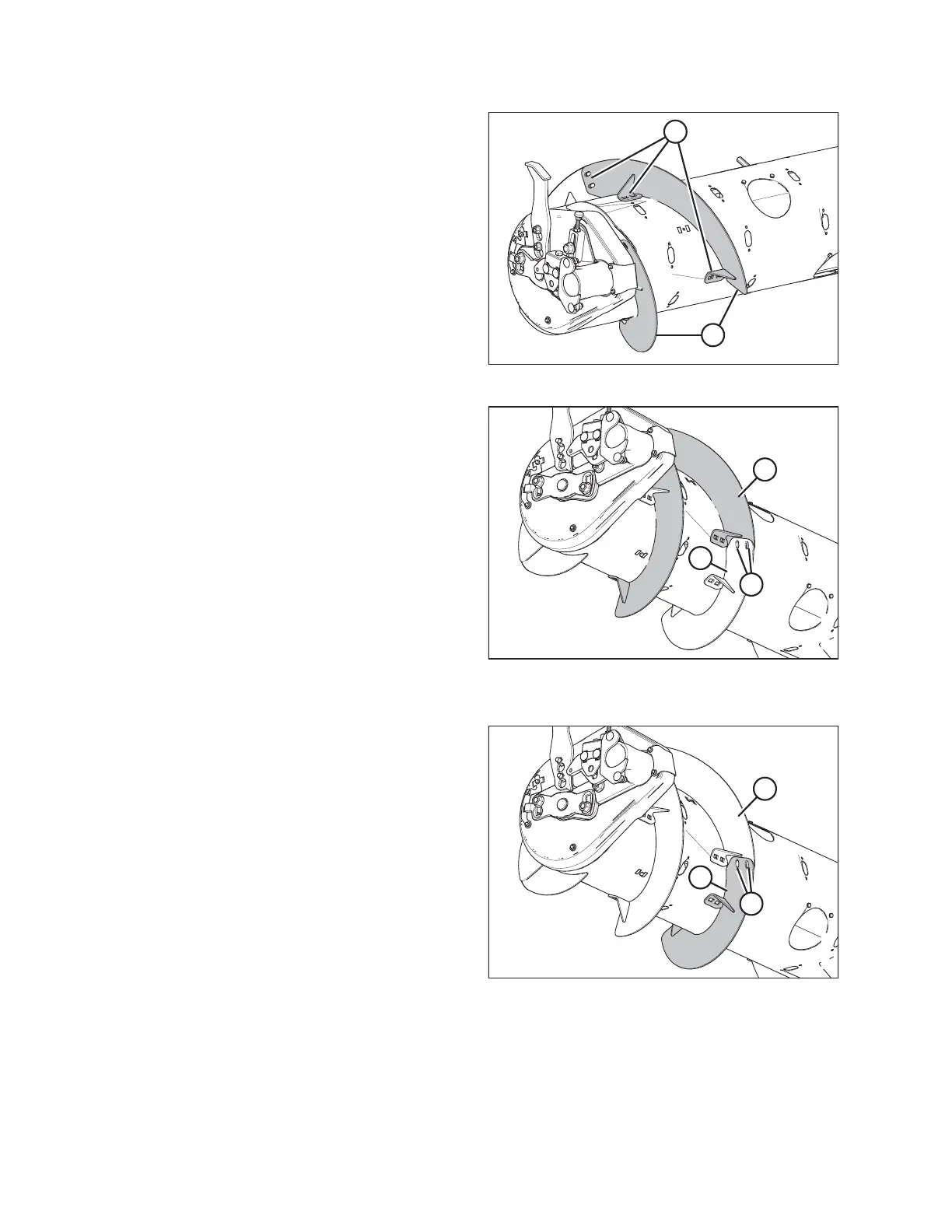

Figure 6.44: Left Side of Auger
13. Position two bolt-on flightings (A) on the left side of the
auger as shown. Temporarily secure flightings with two
carriage head bolts and nuts at each location (B).
1026225
A
B
C
Figure 6.45: Left Side of Auger
14. Position another bolt-on flighting (A) outboard of the
temporarily installed flighting (B). Mark hole locations (C) of
the bolt-on flighting onto the temporarily installed bolt-on
flighting.
15. Remove temporarily installed bolt-on flighting (B) from the
auger and drill two 11 mm (7/16 in.) holes at the marked
locations.
16. Install bolt-on flighting (B) with newly drilled holes using six
carriage head bolts and nuts.
IMPORTANT:
Carriage bolt heads must be installed on the inside of the
auger to prevent damaging internal components.
17. Repeat Steps 14, page 194 to 16, page 194 with the
remaining bolt-on flighting on the left side of the auger.
1026226
A
B
C
Figure 6.46: Left Side of Auger
18. Place bolt-on flighting (A) outboard of other flighting (B) on
the left side of the auger, as shown.
19. Temporarily secure bolt-on flighting (A) with two button
head bolts and nuts at location (C).
