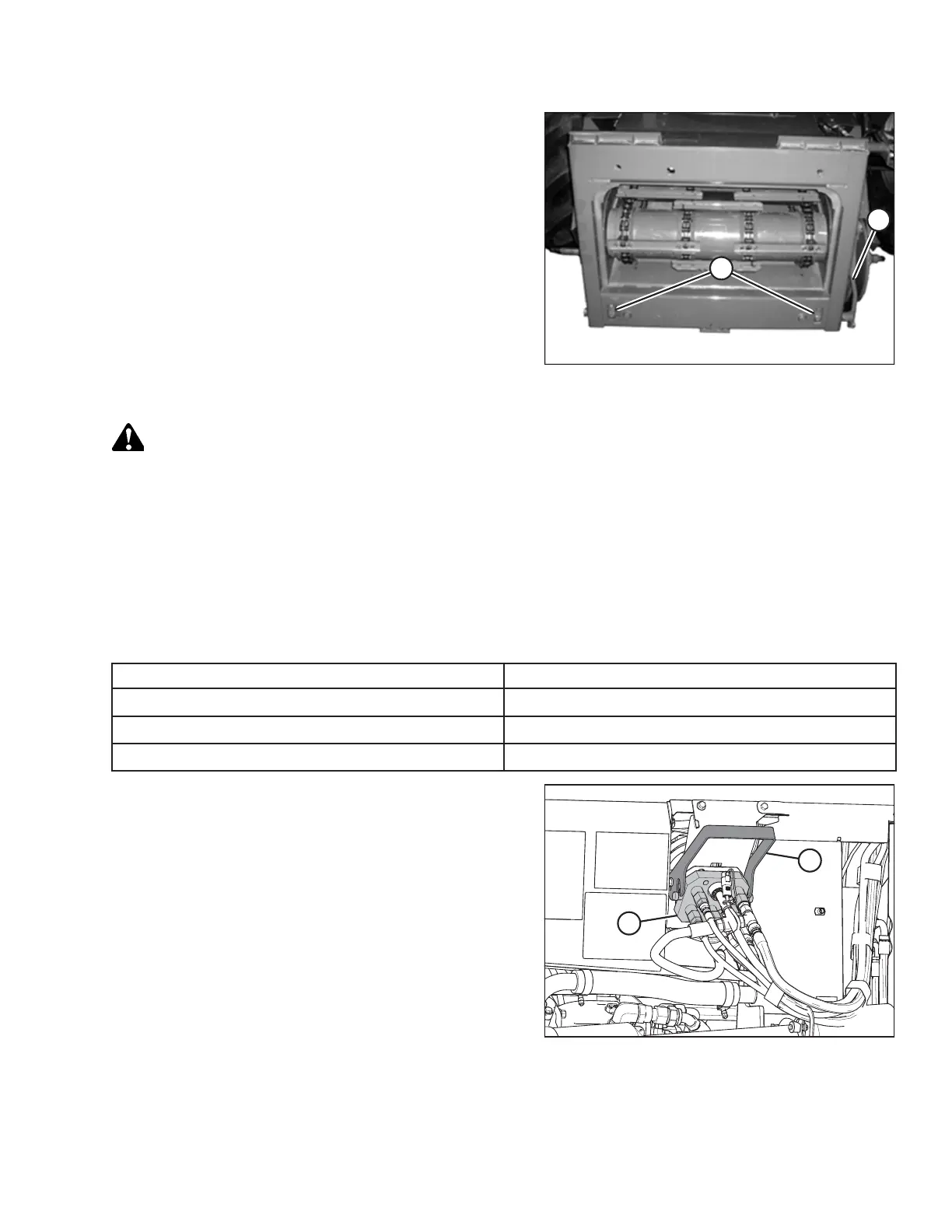

Figure 7.5: AGCO Group Feeder House
6. Use lock handle (B) to engage lugs (A) with the float
module.
WARNING
Never start or move the machine until you are sure all bystanders have cleared the area.
7. Start the engine. For instructions, refer to the combine operator’s manual.
8. Lower the header fully.
NOTE:
The float module is equipped with a multicoupler that connects to the combine. If your combine is equipped with
individual connectors, a multicoupler kit (single-point connector) must be installed. Refer to Table 7.2, page 207 for a
list of kits and installation instructions that are available through your combine Dealer.
Table 7.2 Multicoupler Kits
Combine AGCO Kit Number
Challenger
71530662
Gleaner R/S Series
71414706
Massey Ferguson 71411594
Figure 7.6: Float Module Multicoupler
9. Raise handle (A) to release multicoupler (B) from float
module.
