215184 222 Revision A

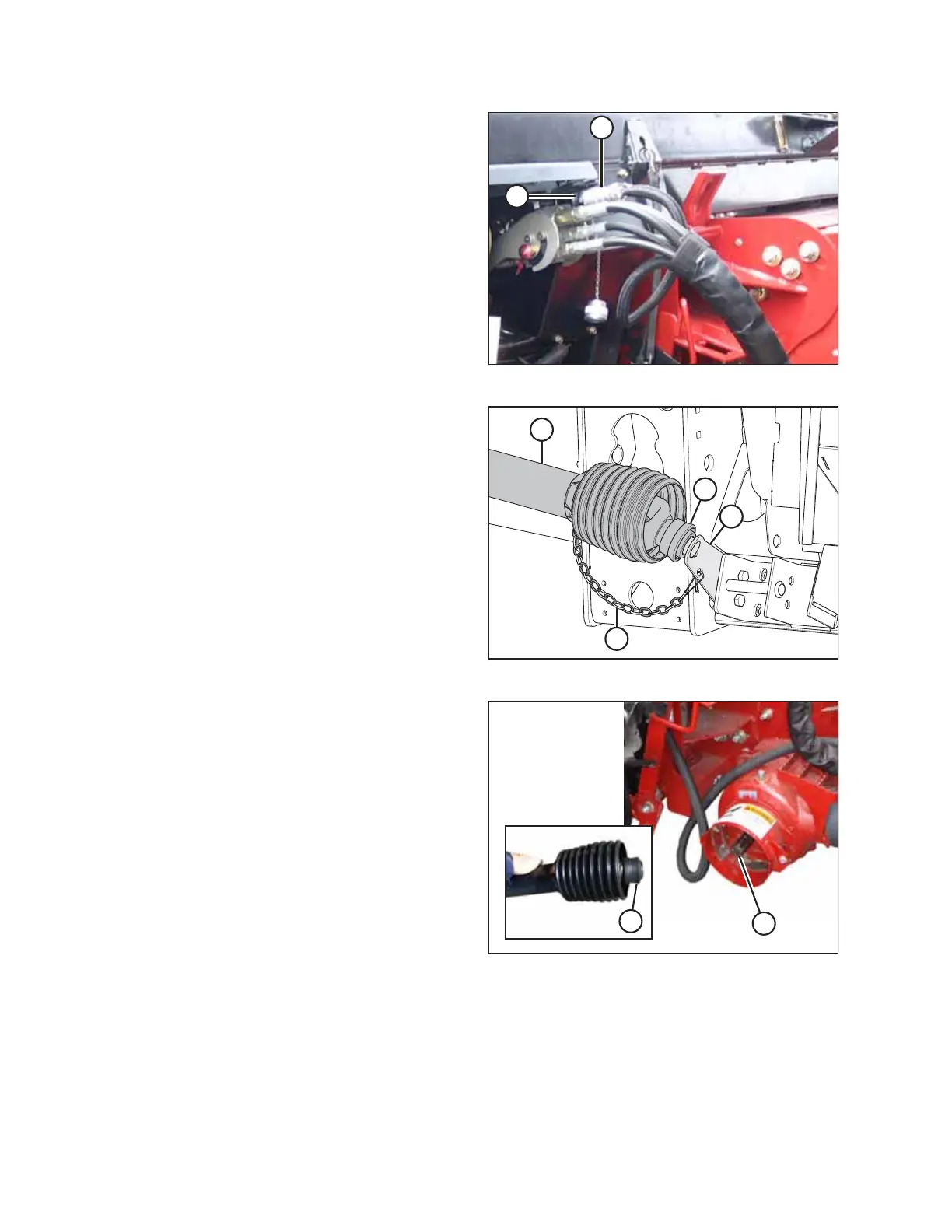

Figure 7.42: Electrical Connection
20. Align the lugs on connector (A) with the slots in
receptacle (B), push the connector onto the receptacle, and
turn the collar on the connector to lock it in place.
Figure 7.43: Driveline in Storage Position
21. Detach safety chain (C) from support bracket (B).
22. Pull collar (D) back to release driveline (A) from support
bracket. Remove the driveline from support bracket.
Figure 7.44: Combine Output Shaft
23. Pull back collar (A) on the end of the driveline, and push
the driveline onto combine output shaft (B) until the
collar locks.
ATTACHING HEADER TO COMBINE
