5.2 European Standards
148 SIEPCYEUOQ2V01A Q2V Technical Manual
■ Guarding Against Debris
When you install IP20/UL Open type drives, use an enclosure that does not let unwanted material enter the drive
from above or below.
■ Wiring Diagram
Example of a drive that is wired to comply with the CE Low Voltage Directive.

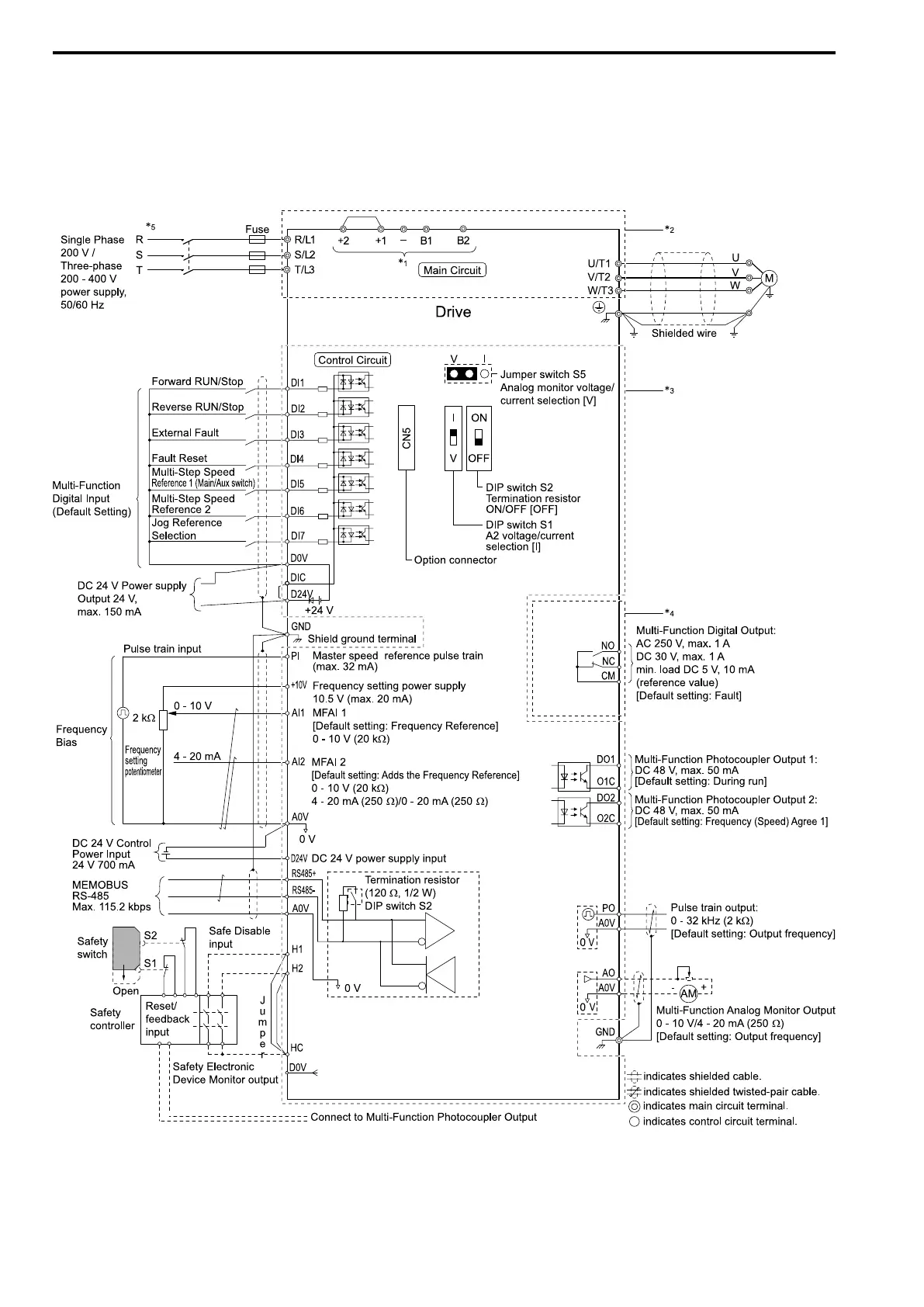

Figure 5.2 Wiring Diagram for CE Low Voltage Directive Compliance
To Next Page
