Omron Q2V Series User Manual

Standards Compliance
5
5.2 European Standards
SIEPCYEUOQ2V01A Q2V Technical Manual 161

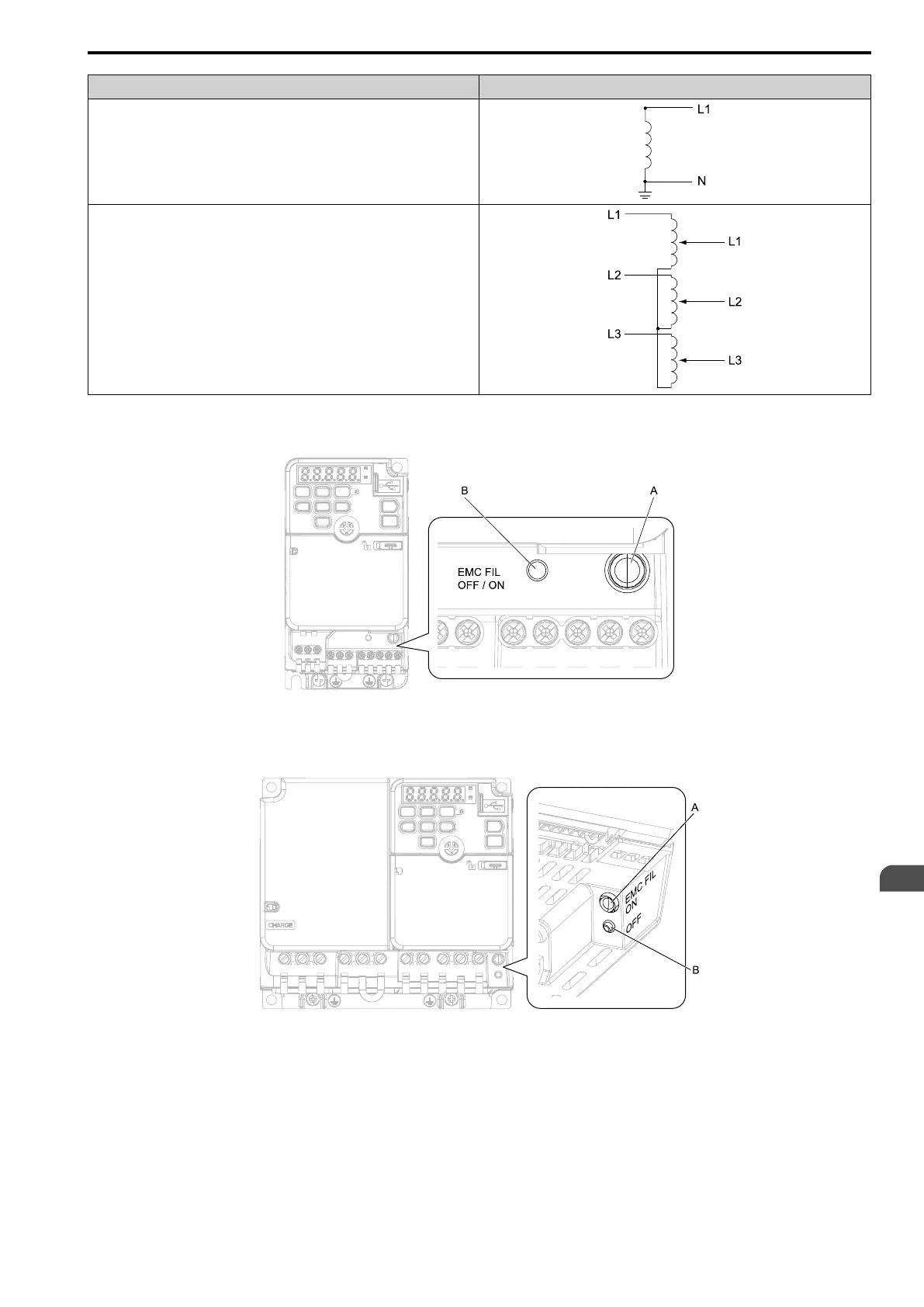

Type of Grounding Diagram
Single-phase, grounded at the end point
Three-phase variable transformer without solidly grounded neutral
EMC Filter Switch Location
A - SW (ON) B - SW (OFF)
Figure 5.8 EMC Filter Switch Location (Models 2001E - 2006E, B001E - B004E)
A - SW (ON) B - SW (OFF)
Figure 5.9 EMC Filter Switch Location (Models 2010E - 2021E, B006E - B012E, 4001E - 4012E)
