Parameter Details
12
12.5 E: MOTOR
SIEPCYEUOQ2V01A Q2V Technical Manual 527
HD : 2001 - 2021, B001 - B018, 4001 - 4012
ND : 2001 - 2018, B001 - B012, 4001 - 4009
HD : 2030 - 2082, 4018 - 4060
ND : 2021 - 2082, 4012 - 4060

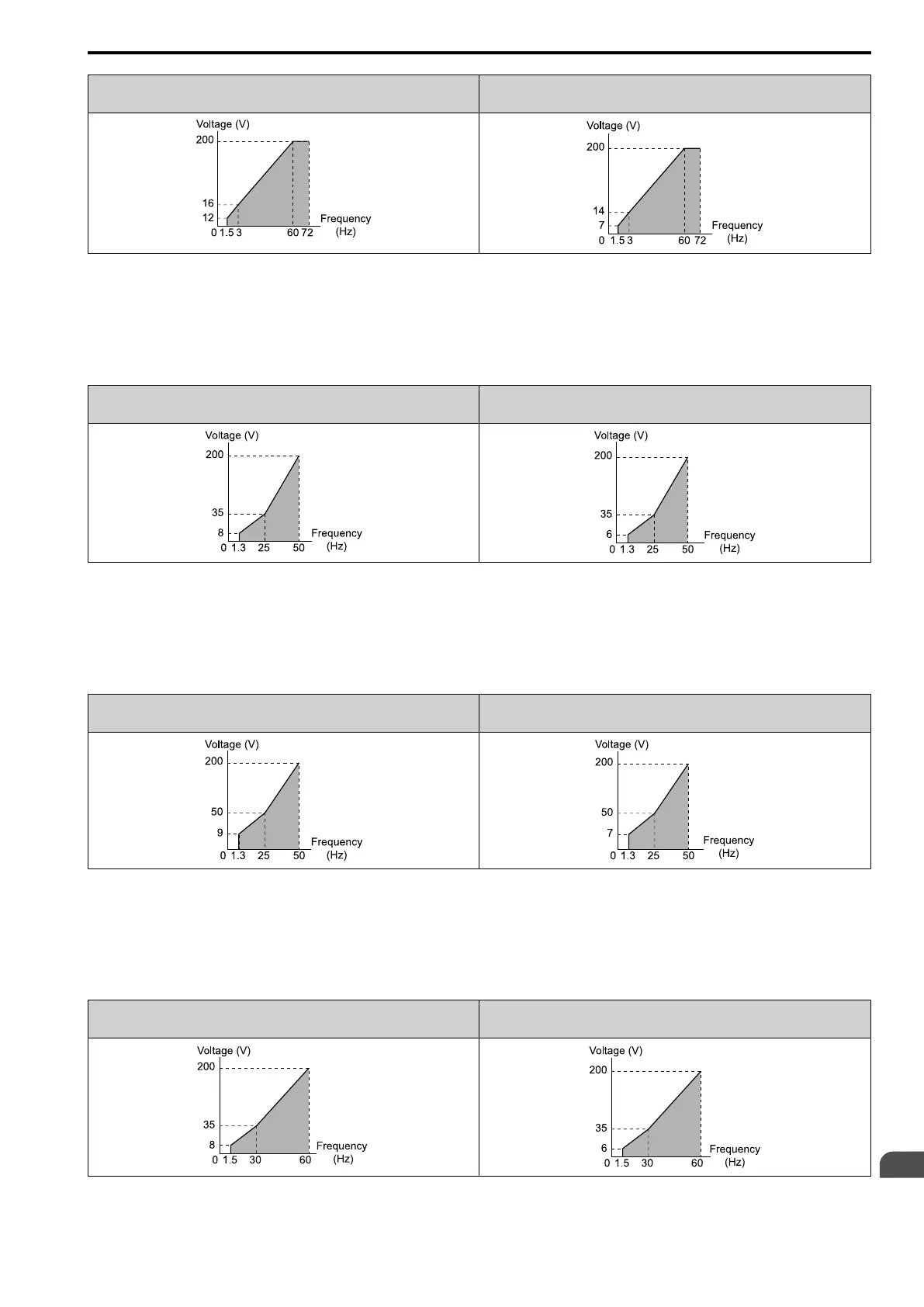

4 : VT_50-35HzmidV
Use this derated torque pattern for torque loads proportional to three times the rotation speed. For example, fans
and pumps.
Note:
The voltage values in the figures are for 200 V class drives. Multiply the values by 2 for 400 V class drives.
HD : 2001 - 2021, B001 - B018, 4001 - 4012
ND : 2001 - 2018, B001 - B012, 4001 - 4009
HD : 2030 - 2082, 4018 - 4060
ND : 2021 - 2082, 4012 - 4060
5 : VT_50-50HzmidV
Use this derated torque pattern for torque loads proportional to two times the rotation speed. For example, fans
and pumps.
Note:
The voltage values in the figures are for 200 V class drives. Multiply the values by 2 for 400 V class drives.
HD : 2001 - 2021, B001 - B018, 4001 - 4012
ND : 2001 - 2018, B001 - B012, 4001 - 4009
HD : 2030 - 2082, 4018 - 4060
ND : 2021 - 2082, 4012 - 4060
6 : VT_60-35HzmidV
Use this derated torque pattern for torque loads proportional to three times the rotation speed. For example, fans
and pumps.
Note:
The voltage values in the figures are for 200 V class drives. Multiply the values by 2 for 400 V class drives.
HD : 2001 - 2021, B001 - B018, 4001 - 4012
ND : 2001 - 2018, B001 - B012, 4001 - 4009
HD : 2030 - 2082, 4018 - 4060
ND : 2021 - 2082, 4012 - 4060
7 : VT_60-50HzmidV
