12.5 E: MOTOR
526 SIEPCYEUOQ2V01A Q2V Technical Manual
Use this constant torque pattern for general applications. This pattern is used when the load torque is constant
without any rotation speed such as that used for linear conveyor systems.
Note:
The voltage values in the figures are for 200 V class drives. Multiply the values by 2 for 400 V class drives.
HD : 2001 - 2021, B001 - B018, 4001 - 4012
ND : 2001 - 2018, B001 - B012, 4001 - 4009
HD : 2030 - 2082, 4018 - 4060
ND : 2021 - 2082, 4012 - 4060

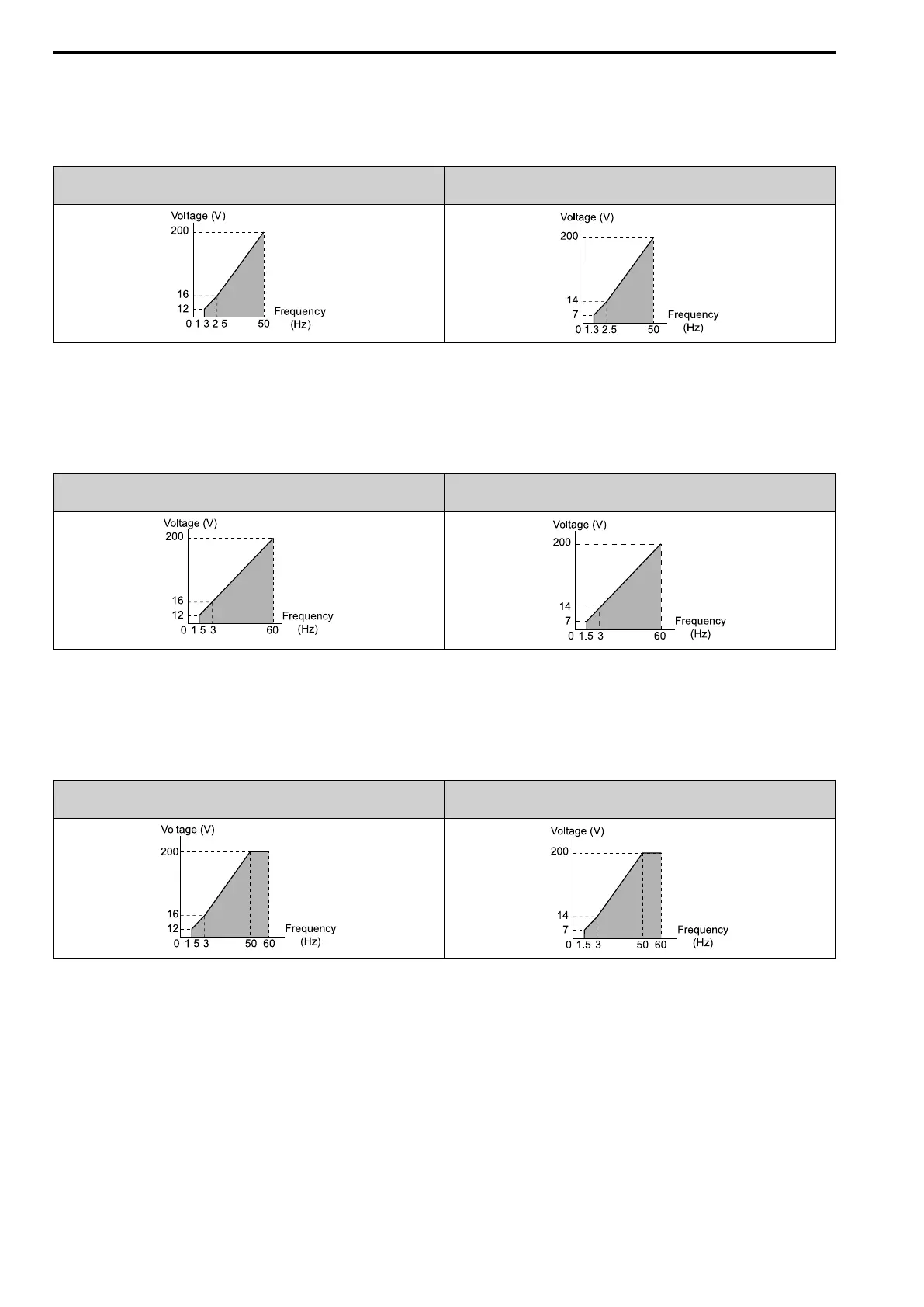

1 : CT_60-60Hzmax
Use this constant torque pattern for general applications. This pattern is used when the load torque is constant
without any rotation speed such as that used for linear conveyor systems.
Note:
The voltage values in the figures are for 200 V class drives. Multiply the values by 2 for 400 V class drives.
HD : 2001 - 2021, B001 - B018, 4001 - 4012
ND : 2001 - 2018, B001 - B012, 4001 - 4009
HD : 2030 - 2082, 4018 - 4060
ND : 2021 - 2082, 4012 - 4060
2 : CT_50-60Hzmax
Use this constant torque pattern for general applications. This pattern is used when the load torque is constant
without any rotation speed such as that used for linear conveyor systems.
Note:
The voltage values in the figures are for 200 V class drives. Multiply the values by 2 for 400 V class drives.
HD : 2001 - 2021, B001 - B018, 4001 - 4012
ND : 2001 - 2018, B001 - B012, 4001 - 4009
HD : 2030 - 2082, 4018 - 4060
ND : 2021 - 2082, 4012 - 4060
3 : CT_60-72Hzmax
Use this constant torque pattern for general applications. This pattern is used when the load torque is constant
without any rotation speed such as that used for linear conveyor systems.
Note:
The voltage values in the figures are for 200 V class drives. Multiply the values by 2 for 400 V class drives.
