12.7 H: TERMINALS
598 SIEPCYEUOQ2V01A Q2V Technical Manual
■ E: EDM Safety
Setting Value Function Description
E EDM Safety
The terminal activates (safety stop state) when the safety circuit and safety diagnosis circuit are operating correctly and when
terminals H1-HC and H2-HC are OFF (Open).
Note:
EDM = External Device Monitor
ON : Safety stop state
Terminals H1-HC and H2-HC are OFF (Open) (safety stop state).
OFF : Safety circuit fault or RUN/READY
Terminal H1-HC or terminal H2-HC is OFF (Open) (safety circuit fault), or the two terminals are ON or have
short circuited (RUN/READY).
■ F: SpeedAgree1
Setting Value Function Description
F SpeedAgree1
The terminal activates when the output frequency is in the range of the frequency reference ± L4-02 [SpAgree Det.Width].
Note:
The detection function operates in the two motor rotation directions.

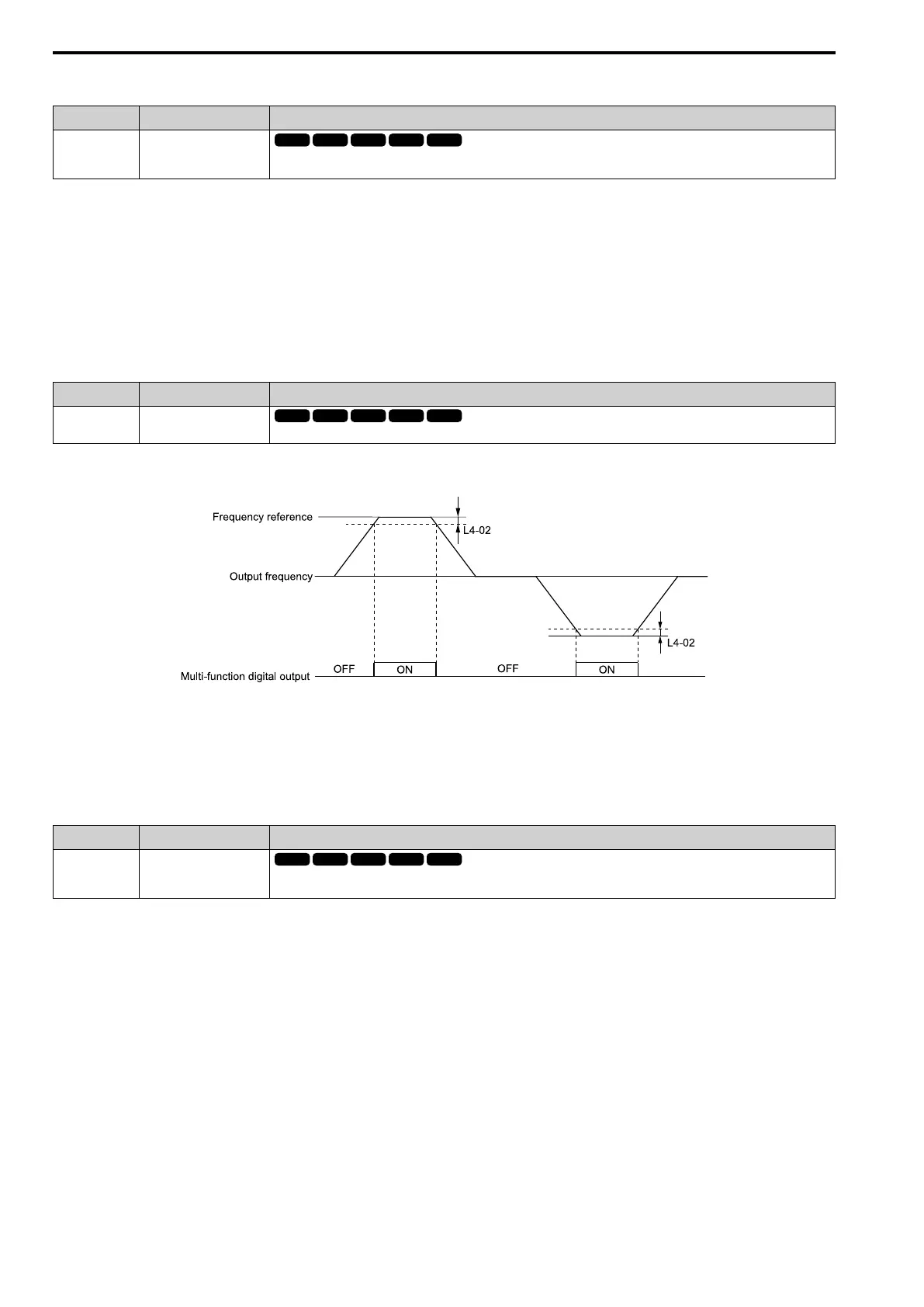

Figure 12.80 Speed Agree 1 Time Chart
ON : The output frequency is in the range of “frequency reference ± L4-02”.
OFF : The output frequency does not align with the frequency reference although the drive is
running.
■ 10: USpeedAgree1
Setting Value Function Description
10 USpeedAgree1
The terminal activates when the output frequency is in the range of L4-01 [SpAgree Det.Level] ± L4-02 [SpAgree Det.Width]
and in the range of the frequency reference ± L4-02.
Note:
The detection function operates in the two motor rotation directions. The drive uses the L4-01 value as the forward/reverse detection
level.
ON : The output frequency is in the range of “L4-01 ± L4-02” and the range of frequency
reference ± L4-02.
OFF : The output frequency is not in the range of “L4-01 ± L4-02” nor the range of frequency
reference ± L4-02.
