Parameter Details
12
12.8 L: PROTECTION
SIEPCYEUOQ2V01A Q2V Technical Manual 669
3 : Alarm Only
The keypad shows oH and the drive continues operation. The output terminal set for Alarm [H2-01 to H2-03 = 4]
activates.
4 : Run@L8-19 Rate
The drive decelerates to the level set in L8-19 [Frq Reduct@oHPre-Alarm] and continues operation. oH flashes
on the keypad.
oH flashes on the keypad. When the alarm is output, the drive decelerates each 10 seconds. If the drive decelerates
10 times and the alarm continues to be output, the output terminal set for oH Pre-Alarm Reduction Limit [H2-01
to H2-03 = 4F] activates. When the alarm is not output during deceleration, the drive accelerates until it is at the
frequency reference that was applicable before the alarm was turned off. This figure shows the output of the alarm
and the drive operation at a decreased output frequency.

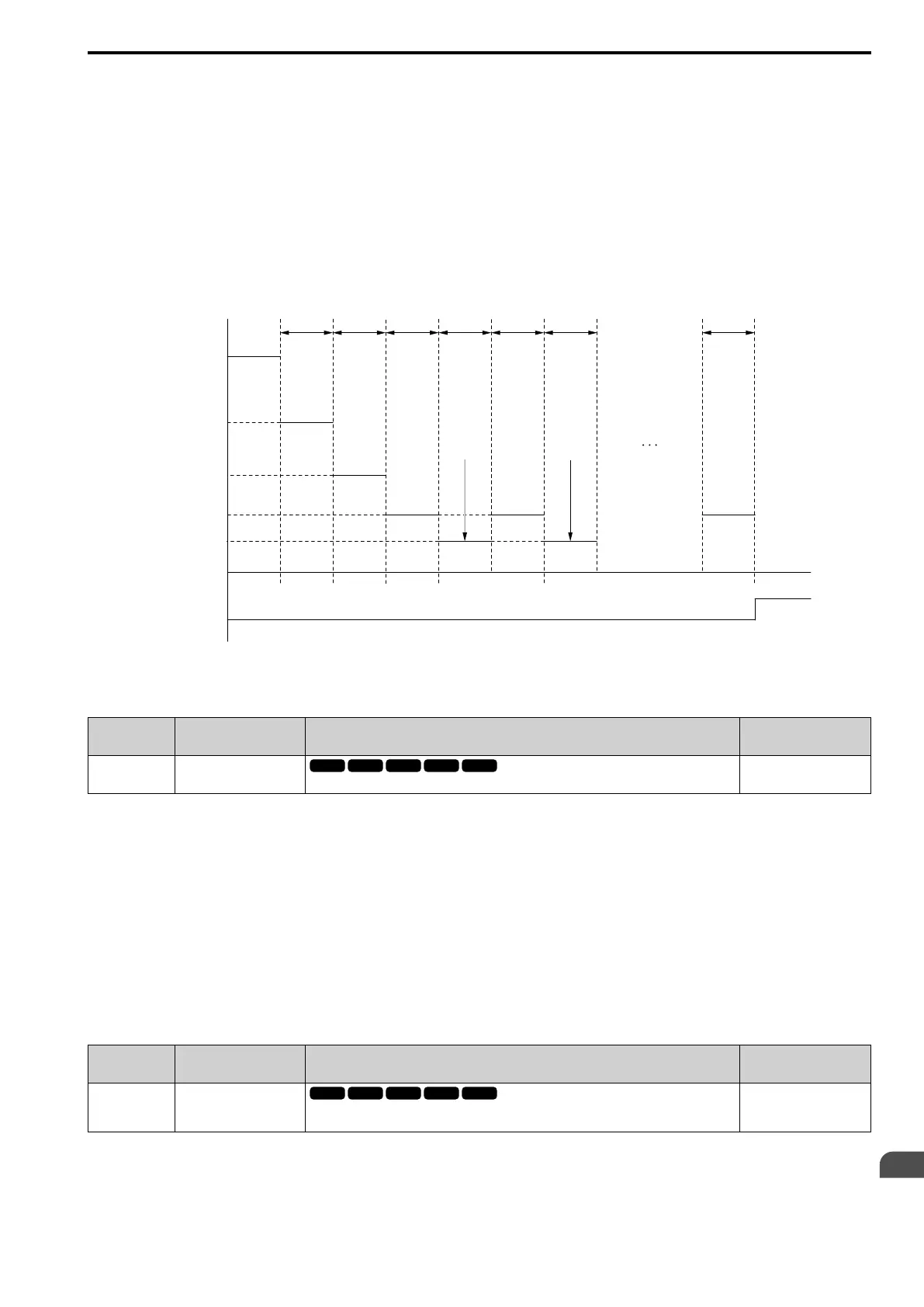

Figure 12.128 Drive Operation at a Decreased Output Frequency when the Overheat Alarm is Output
■ L8-05: In PhaseLoss Selection
No.
(Hex.)
Name Description
Default
(Range)
L8-05
(04B1)
In PhaseLoss Selection
Sets the function to enable and disable input phase loss detection.
1
(0, 1)
0 : Disabled
1 : Enabled
The drive measures ripples in DC bus voltage to detect input phase loss.
The drive detects phase loss when power supply phase loss occurs or the main circuit capacitor becomes unusable,
which causes PF [Input Phase Loss] to show on the keypad.
Disable the detection of the input power supply phase loss function in these conditions:
• During deceleration
• The run command is not input
• The output current is less than 30% of the drive rated current.
■ L8-07: Out PhaseLoss Selection
No.
(Hex.)
Name Description
Default
(Range)
L8-07
(04B3)
Out PhaseLoss Selection
Sets the function to enable and disable output phase loss detection. The drive starts output phase
loss detection when the output current decreases to less than 5% of the drive rated current.
0
(0 - 2)
Note:
The drive can incorrectly start output phase loss detection in these conditions:
• The motor rated current is very small compared to the drive rating.
• The drive is operating a PM motor with a small load.
Time
f
r e f
× ( L8 - 19 )
f
r e f
× ( L8 - 19 )
2
f
r e f
× ( L8 - 19 )
4
f
r e f
× ( L8 - 19 )
3
f
r e f
Output frequency
Multi-function
Digital Output Terminal
oH
Alarm
oH
Alarm
oH
Alarm
oH
Alarm
oH Alarm
Cancel
oH Alarm
Cancel
O N
oH Alarm count
10 s 10 s 10 s 10 s 10 s 10 s 10 s
1 2 3 4 5 6 10
H2-01 through H2-03 = 4F
