Omron RX2 Series User Manual

2 Design
2 - 68
High-function General-purpose Inverter RX2 Series User’s Manual

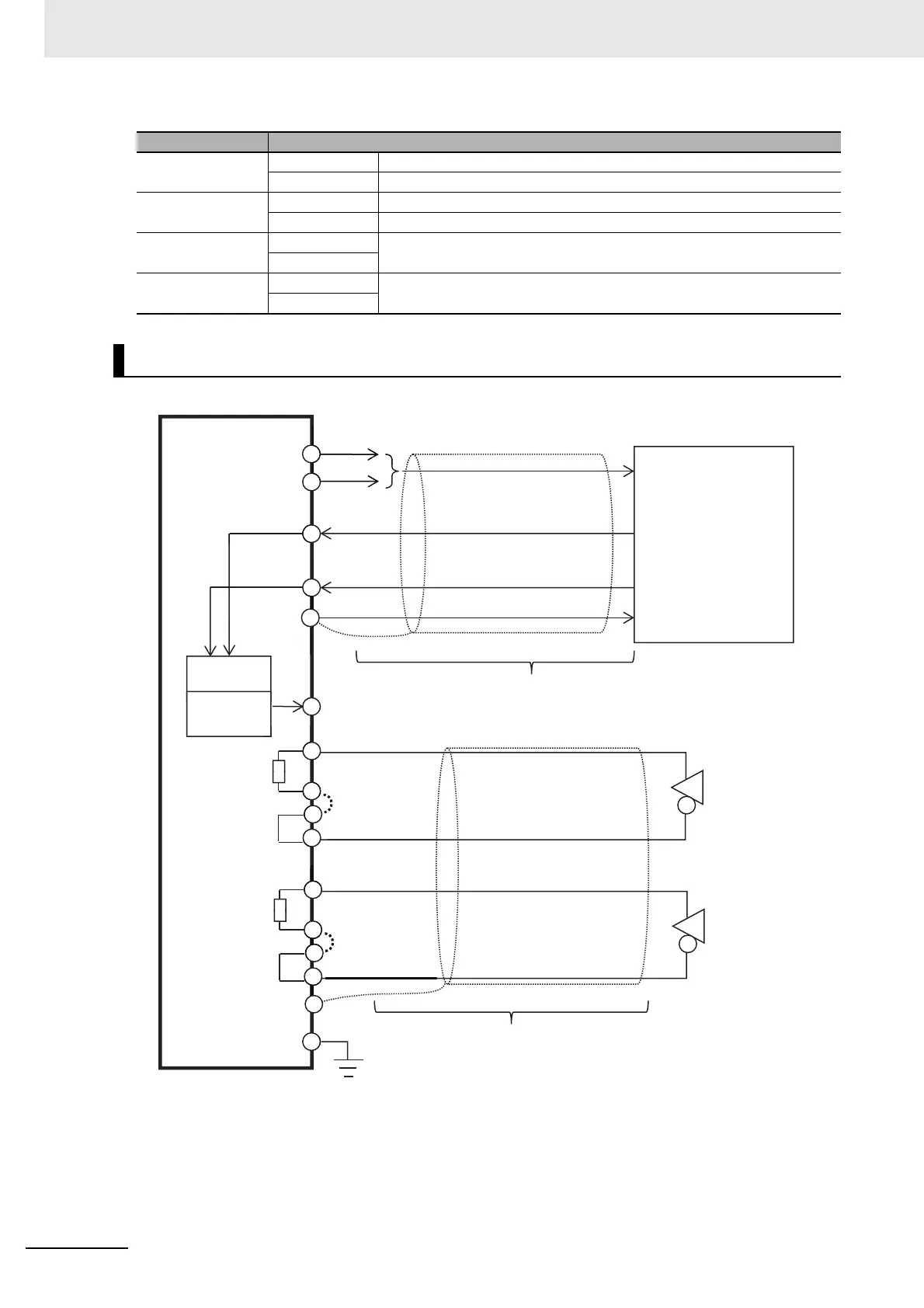

The following describes the wiring of PG Option Unit 3G3AX-RX2-PG01.
Switch number Setting description
1
ON Encoder A and B phase disconnecting detection enabled
OFF Encoder A and B phase disconnecting detection disabled
2
ON Encoder Z phase disconnecting detection enabled
OFF Encoder Z phase disconnecting detection disabled
3
ON
Do not change the setting
OFF
4
ON
Do not change the setting
OFF
Wiring of PG Option Unit
AP, AN / BP, BN
ZP, ZN
EAP, EAN
EBP, EBN
EZP, EZN
EP12×2
EG
3G3AX-RX2-PG01
EP5×2
FG
Max.
250mA
ZN
Max.200kp/s
SAP
RSA
SAN
150 Ω
150 Ω
SAN
SBP
RSB
SBN
SBN
EG
Line-driver output
encoder
A,B,Z-phase pulse
Pulse velocity
200 kp/s max.
Wiring length 20 m max.
RS422 compliant
receiver
RS422 compliant
driver
Terminating
resistor
When short-circuited,
terminating resistor
enabled
Wiring length 20 m max.
When short-circuited,
terminating resistor
enabled
Terminating
resistor
