3 - 19
3 Operation
High-function General-purpose Inverter RX2 Series User’s Manual
3-2 Parameter Settings
3
3-2-2 Concurrent Monitor Mode

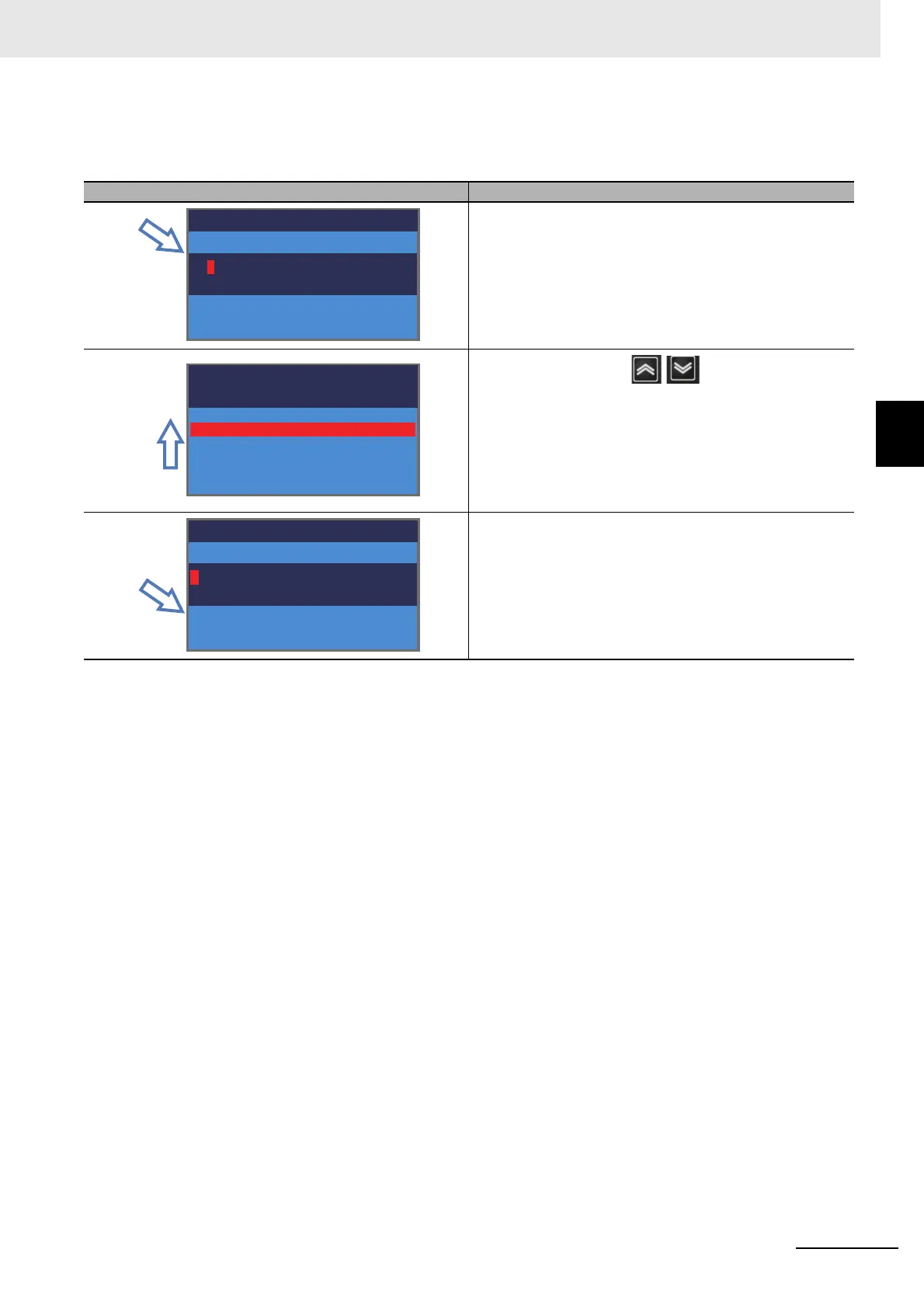

Example1) Change the [AA101] First main speed command selection to [Ai1] terminal.
The [Ai1] terminal is an analog input terminal (voltage/current).
Set-up procedure Action
Press the Enter key while [AA101] is displayed.
(Tips)
The information currently selected is shown in the lower sec-
tion. “07: Parameter setting” is currently selected.
Using the up and down ( ) keys, select “01 [Ai1]
terminal”, and then press the F2(2) key.
(Tips)
Data is saved when the F2(2) key is pressed. It is still saved
even after the device is turned off.
When configuring an item, the entire screen changes to the
screen for setting the item.
To confirm if the data is correctly changed, check the lower
section. Press the F1(1) key to return to the monitor.
(Tips)
The information currently selected is shown in the lower sec-
tion.
“01 [Ai1] terminal” is currently selected.
Output Frequency
0.00 Hz
AA101
First main speed command selection
07: Parameter set-up
AA101
First main speed command selection
01 [Ai1] terminal
02 [Ai2] terminal
03 [Ai3] terminal
Output Frequency
0.00 Hz
AA101
First main speed command selection
01: [Ai1] terminal
To Next Page
