4-5 Simulation Mode
4
(Example: usage 1)
[AL] Checking the behavior while the alarm [AL] is on.
• The operation was started.
• DC-bus voltage monitor optional output enable [PA-24] was set to 01, and DC-bus voltage monitor
optional value output [PA-25] was set to the maximum value.
• An overvoltage error [E007] occurred and [AL] was ON.
(Example: usage 2)
Checking the signal output of overload prewarning level [OL].
• The over current detection level 1, 1st motor [CE106] was set, and the operation was started.
• Output current monitor optional output selection [PA-22] was set to 02, and [Ai1] was increased and
decreased.
• [OL] was turned ON because the output current exceeded the over current detection level 1, 1st
motor [CE106].

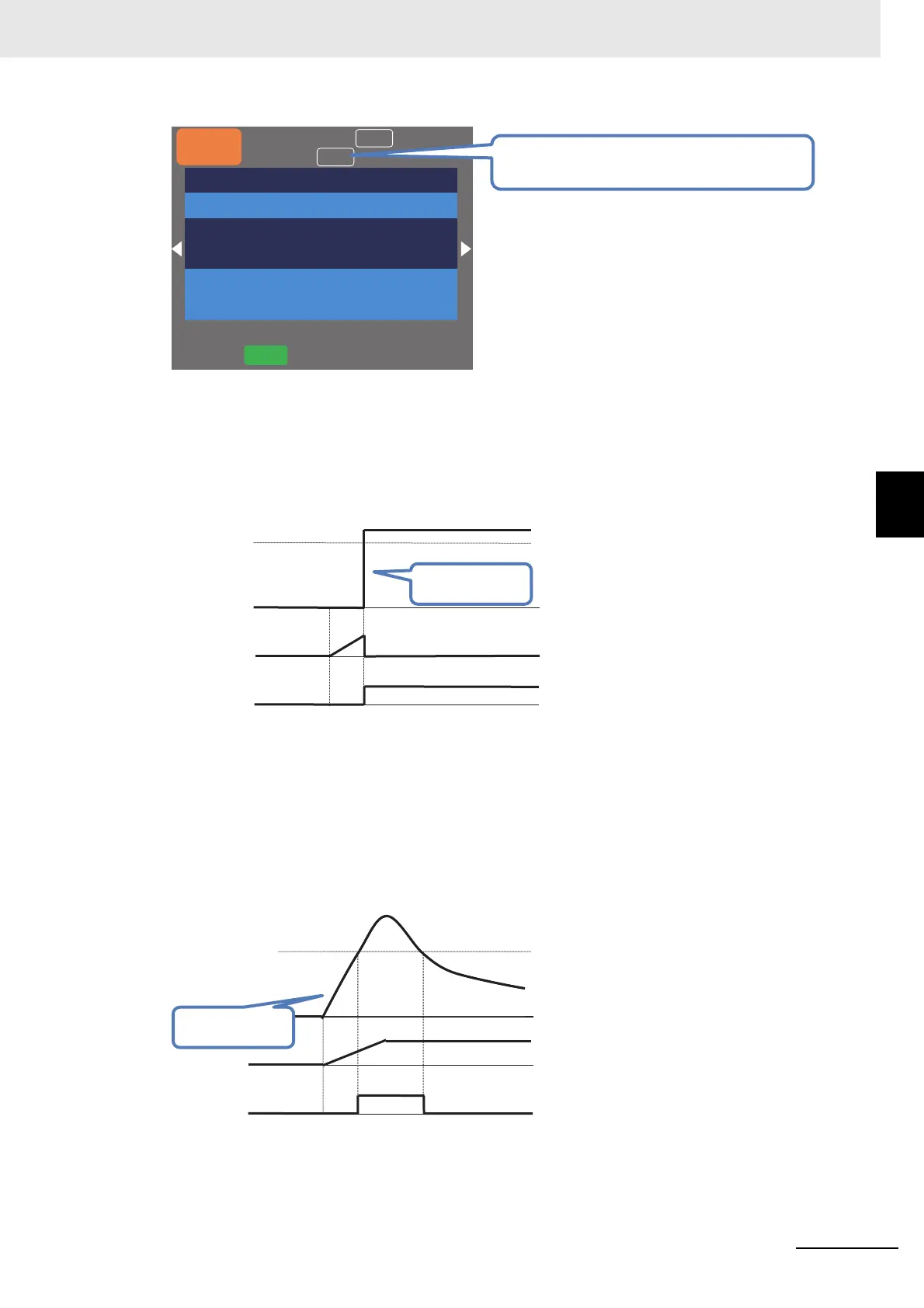

Menu
Option
0.00Hz
oFW
STOP
M1
H03
Output Frequency
0.00 Hz
FA-01
Main speed command (Operator
keypad)
0.00 Hz
[0.00-60.00]
SIM
Indicated during the simulation mode.
[PA-25] setting
OV Level
P-N Voltage
Output
frequency
[AL] Output
[Ai1] was input.
Overload prewarning level
[CE106]
Output Current
Output
frequency
[OL] output
To Next Page
