Omron RX2 Series User Manual

6 Basic Parameter Settings
6 - 38
High-function General-purpose Inverter RX2 Series User’s Manual
Multi-step speeds of 0th to 15th speeds can be chosen by assigning 003-006 ([CF1]-[CF4]) to the input
terminals 1-9, A, and B [CA-01]-[CA-11].

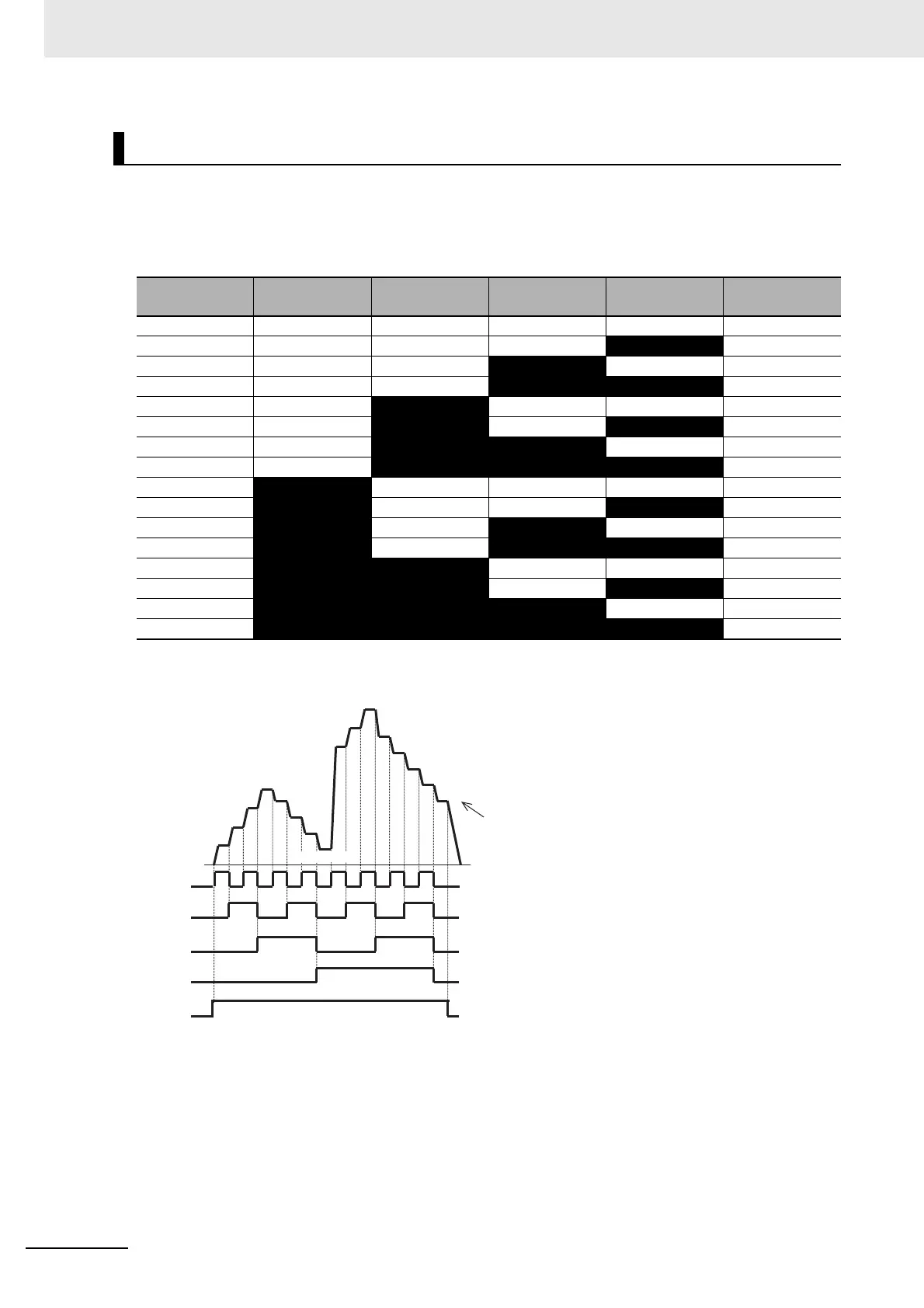

 Action Table
 Action Chart
Binary Operation (Maximum 16-speed Command: [Ab-03]=00)
Multi-step
speed
CF4 CF3 CF2 CF1 Parameters
0th speed OFF OFF OFF OFF Ab110
1st speed OFF OFF OFF ON Ab-11
2nd speed OFF OFF ON OFF Ab-12
3rd speed OFF OFF
ON ON Ab-13
4th speed OFF
ON OFF OFF Ab-14
5th speed OFF
ON OFF ON Ab-15
6th speed OFF
ON ON OFF Ab-16
7th speed OFF
ON ON ON Ab-17
8th speed
ON OFF OFF OFF Ab-18
9th speed ON OFF OFF ON Ab-19
10th speed
ON OFF ON OFF Ab-20
11th speed
ON OFF ON ON Ab-21
12th speed ON ON OFF OFF Ab-22
13th speed
ON ON OFF ON Ab-23
14th speed
ON ON ON OFF Ab-24
15th speed ON ON ON ON Ab-25
CF4
FW
CF3
CF2
CF1
11th speed
10th speed
9th speed
8th speed
7th speed
6th speed
5th speed
4th speed
3rd speed
2nd speed
1st speed
12th speed
13th speed
14th speed
15th speed
0th speed
Frequency command from
the place selected for the
frequency command
