Omron RX2 Series User Manual

7 - 79
7 Advanced Settings
High-function General-purpose Inverter RX2 Series User’s Manual
7-5 Start Conditions
7

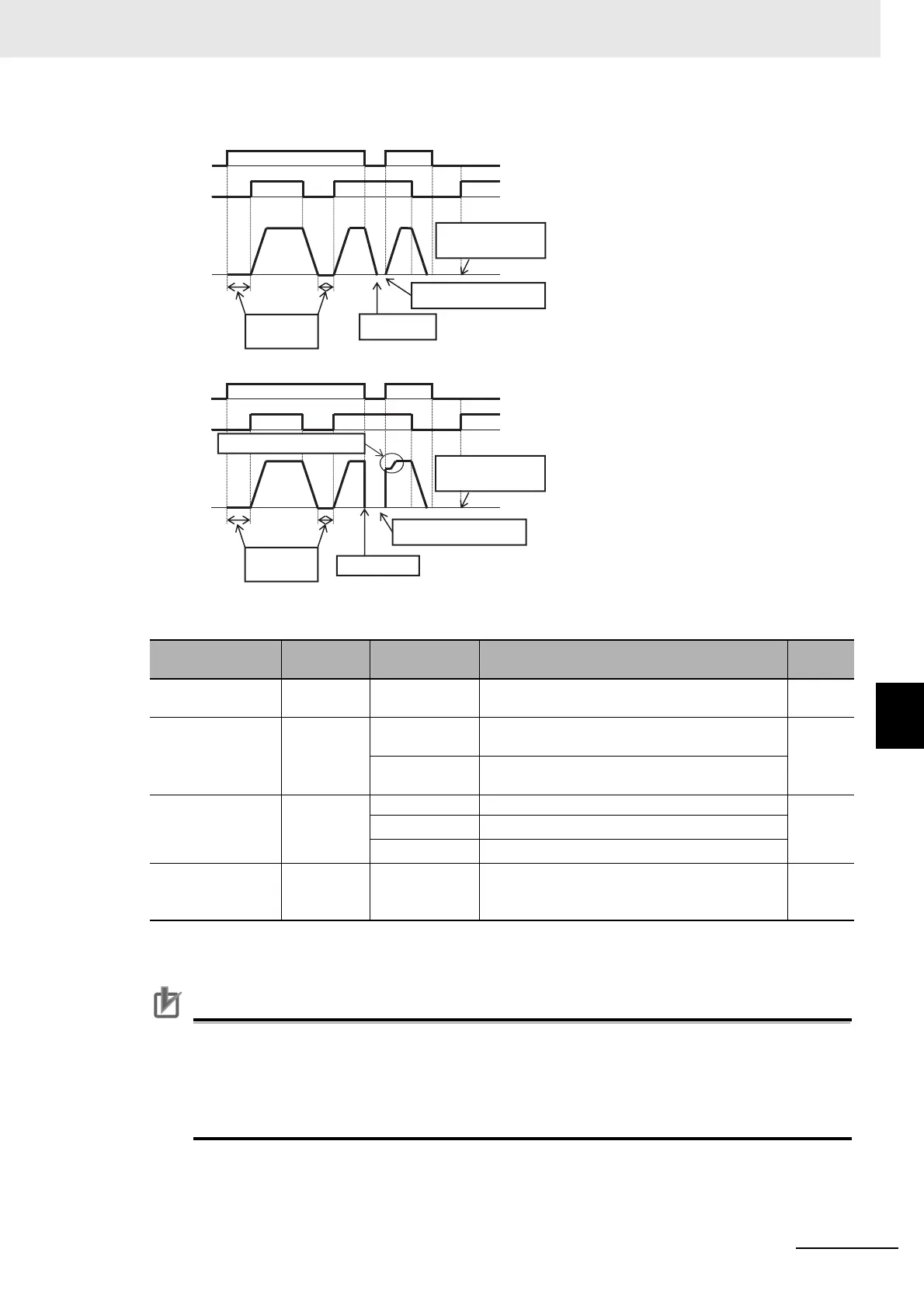

7-5-8 Forcing Function
• When [AA115] Stop mode selection is set to 00: Deceleration stop
• When [AA115] Stop mode selection is set to 01: Free run stop
 Parameter
Precautions for Correct Use
• If torque at starting is insufficient, it may improve by adjusting the boost amount at starting
[HC111], [HC112] or the speed response [HA115].
•See 7-1 Overview of Motor Control Methods on page 7-3.
• If torque at starting is insufficient, it may improve by using the torque bias function. See 7-3-6
Torque Bias Function on page 7-54.
Item Parameter Data Description
Default
data
Input terminal func-
tion
[CA-01] to
[CA-11]
066 Forcing function [FOC] -
STOP mode
selection,
1st-motor
[AA115]
00
Performs the deceleration stop when the opera-
tion command is off.
00
01
Performs the free-run when the operation com-
mand is off.
Restart mode after
FRS release
[bb-40]
00 Performs the 0 Hz restart.
00
01
Performs frequency matching restart.
*1
*1. See 7-5-3 Frequency Matching Start on page 7-65.
02
Performs frequency pull-in restart.
*2
*2. See 7-5-4 Frequency Pull-in Start on page 7-69.
Retry wait time
before motor
restart
[bb-26] 0.3 to 100.0(s) Sets the wait time after the operation command. 0.3
FOC
FW
The inverter does not run
because FOC terminal =
OFF.
Output
frequency
Excitation
current flows.
Excitation current does
not flow.
Deceleration
stop
FOC
FW
Free-running
The inverter does not run
because FOC terminal =
OFF.
Output
frequency
Excitation
current flows.
Excitation current does
not flow.
Restart after free-run stop
