8 Applied Settings
High-function General-purpose Inverter RX2 Series User’s Manual
8-1 PID Control
8
8-1-2 PID Parameter and Block Diagram

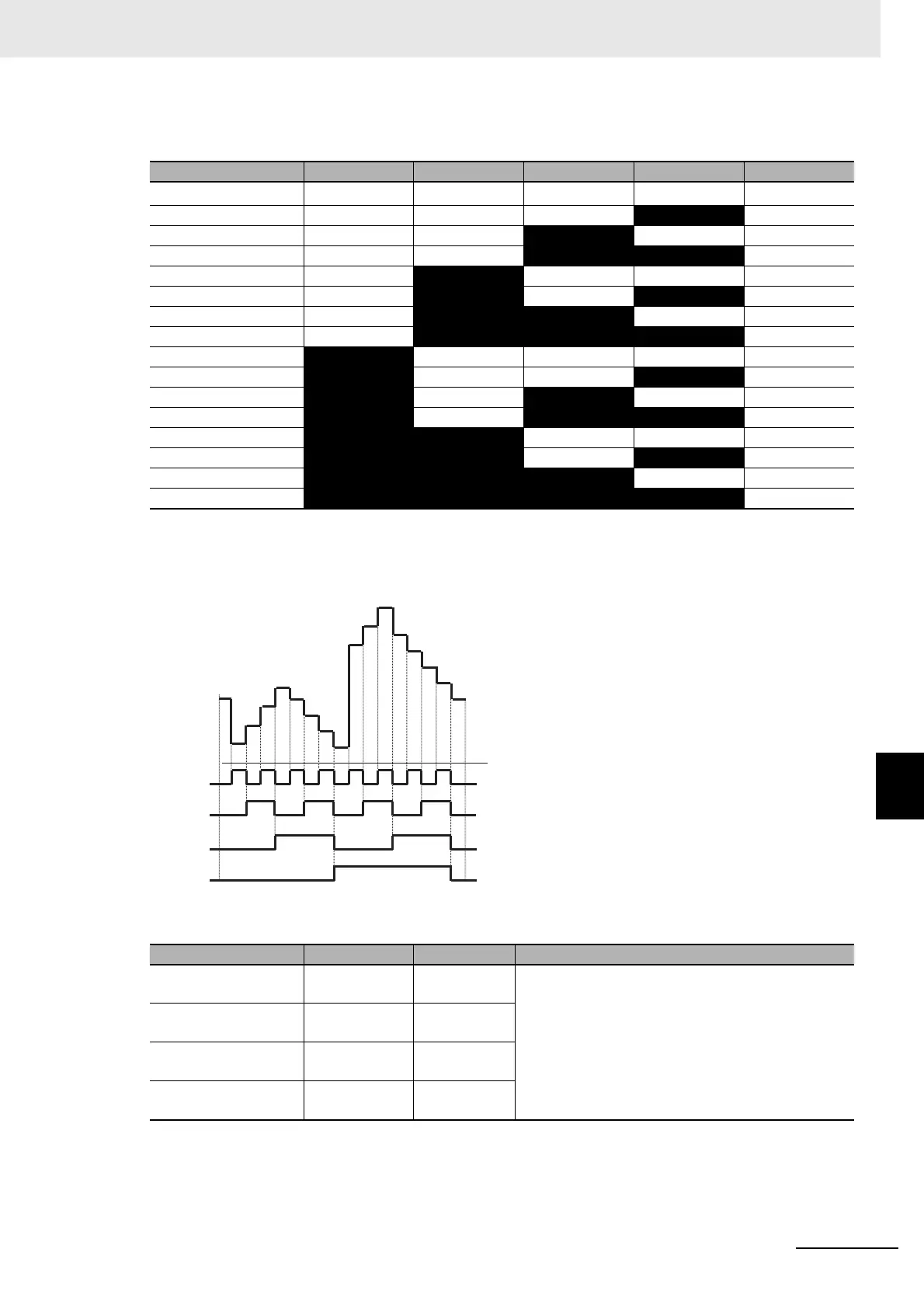

 Operation Table
 Operation Graph
 Input Terminal Function
Multi-layer target SVC4 SVC3 SVC2 SVC1 Parameter
Target value 0 OFF OFF OFF OFF
[AH-10]
*1
*1. When [AH-07] = 07. Follow the setting of [AH-07].
Target value 1 OFF OFF OFF
ON [AH-12]
Target value 2 OFF OFF
ON OFF [AH-14]
Target value 3 OFF OFF ON ON [AH-16]
Target value 4 OFF
ON OFF OFF [AH-18]
Target value 5 OFF
ON OFF ON [AH-20]
Target value 6 OFF ON ON OFF [AH-22]
Target value 7 OFF
ON ON ON [AH-24]
Target value 8
ON OFF OFF OFF [AH-26]
Target value 9 ON OFF OFF ON [AH-28]
Target value 10
ON OFF ON OFF [AH-30]
Target value 11
ON OFF ON ON [AH-32]
Target value 12 ON ON OFF OFF [AH-34]
Target value 13
ON ON OFF ON [AH-36]
Target value 14
ON ON ON OFF [AH-38]
Target value 15
ON ON ON ON [AH-40]
Item Terminal name Data Description
Multi-layer target com-
mand terminal 1
[SVC1] 051
Switches multiple target values.
Multi-layer target com-
mand terminal 2
[SVC2] 052
Multi-layer target com-
mand terminal 3
[SVC3] 053
Multi-layer target com-
mand terminal 4
[SVC4] 054
2
3
5
6
7
4
8
9
10
11
12
13
14
15
0
1
SVC4
SVC3
SVC2
SVC1
0
ON
OFF
ON
OFF
ON
OFF
ON
OFF
Target
value
