8 Applied Settings
8 - 34
High-function General-purpose Inverter RX2 Series User’s Manual
Parameter
Output Signal Function
Output terminal signal will be turned OFF when each PID feedback reaches beyond respective PID set
ranges.
Precautions for Correct Use
• Set PID1 feedback to be OFF level ≥ ON level. OFF operation will be prioritized when it is set
to Off level ON level.
• Setting ON level/OFF level to be other than 0.00 starts outputting of a feedback comparison
signal.
Item
Terminal
name
Data Description
Default
data
PID1 Deviation over
level
[AH-72]
0.00 to
100.00(%)
045 [OD] signal output judgment level
3.00
PID2 Deviation over
level
[AJ-17]
0.00 to
100.00(%)
047 [OD2] signal output judgment level
PID3 Deviation over
level
[AJ-37]
0.00 to
100.00(%)
089 [OD3] signal output judgment level
PID4 Deviation over
level
[AJ-57]
0.00 to
100.00(%)
091 [OD4] signal output judgment level
Item Terminal name Data Description
PID1 deviation exces-
sive signal
OD 045
Signal will be turned ON when the difference
between PID target value and feedback value
exceeds the range of PID1 deviation excessive level.
PID2 deviation exces-
sive signal
OD2 047
Signal will be turned ON when the difference
between PID target value and feedback value
exceeds the range of PID2 deviation excessive level.
PID3 deviation exces-
sive signal
OD3 089
Signal will be turned ON when the difference
between PID target value and feedback value
exceeds the range of PID3 deviation excessive level.
PID4 deviation exces-
sive signal
OD4 091
Signal will be turned ON when the difference
between PID target value and feedback value
exceeds the range of PID4 deviation excessive level.

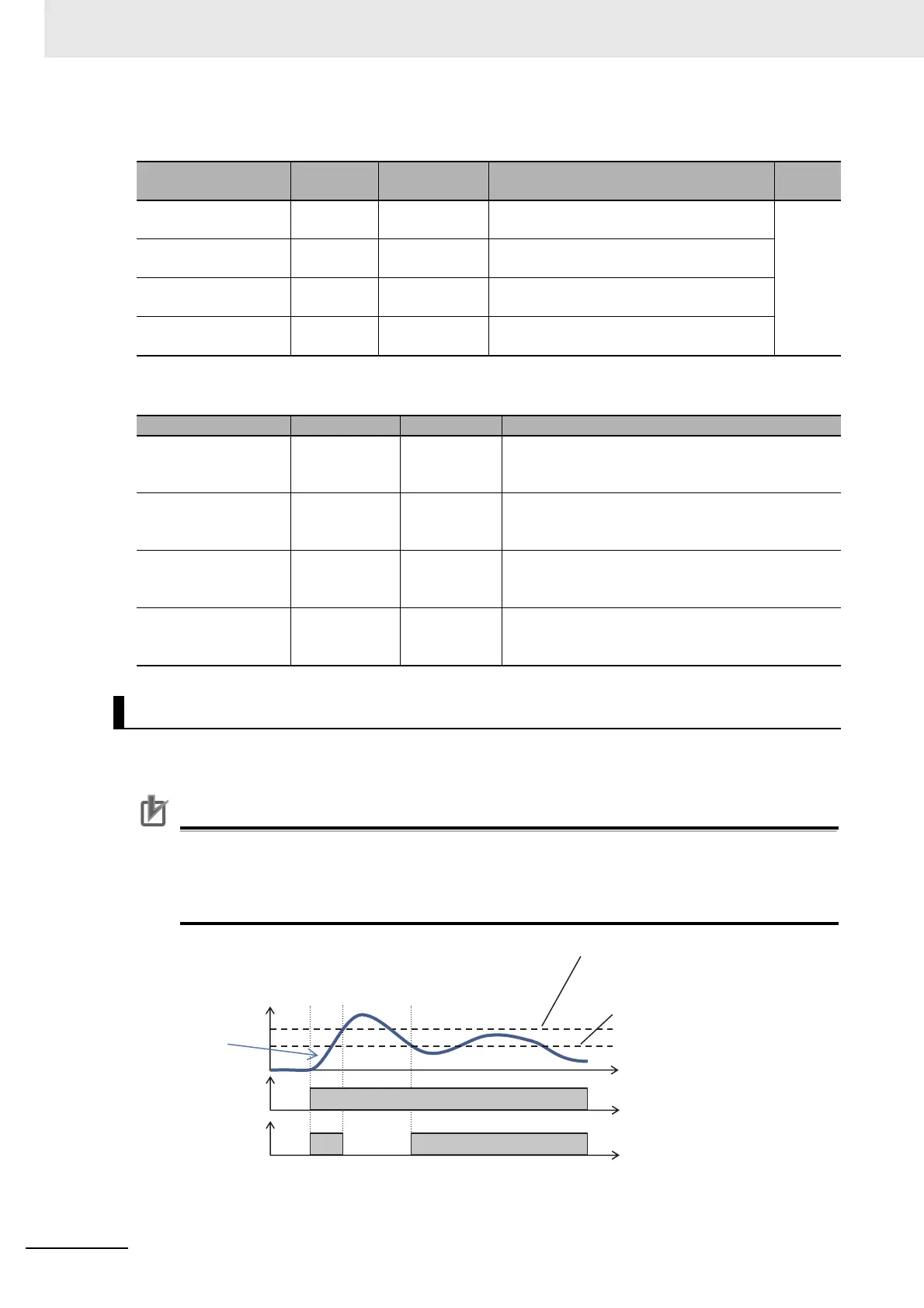

PID Feedback Comparison Signal (FBV)
0%
FBV1/FBV2/FBV3/FBV4
ON
ON ON
PID feedback (%)
PID1 feedback/
PID2 feedback/
PID3 feedback/
PID4 feedback
Operation command
Time (s)
OFF level
[AH-73]/[AJ-18]/[AJ-38]/[AJ-58]
ON level
[AH-74]/[AJ-19]/[AJ-39]/[AJ-59]
To Next Page
