8-3-6 Instantaneous Power Interruption/Undervoltage Detection
Examples of supplying the power to R0 and T0 from R, S, and T
Precautions for Correct Use
• Depending on the setting for [bb-25] Allowable instantaneous power failure time and the
number of retries, the inverter’s behavior varies.
• When “0” is specified for the number of retries (Error occurs)
Power recovery within [bb-25] Allowable instantaneous power failure time
An error occurs.
Power recovery after [bb-25] Allowable instantaneous power failure time has elapsed
An error does not occur. The same operation as when the power is turned on.
• When other than “0” is specified for the number of retries (Retry enabled)
Power recovery within [bb-25] Allowable instantaneous power failure time
Retry operation
Power recovery after [bb-25] Allowable instantaneous power failure time has elapsed
An error occurs.

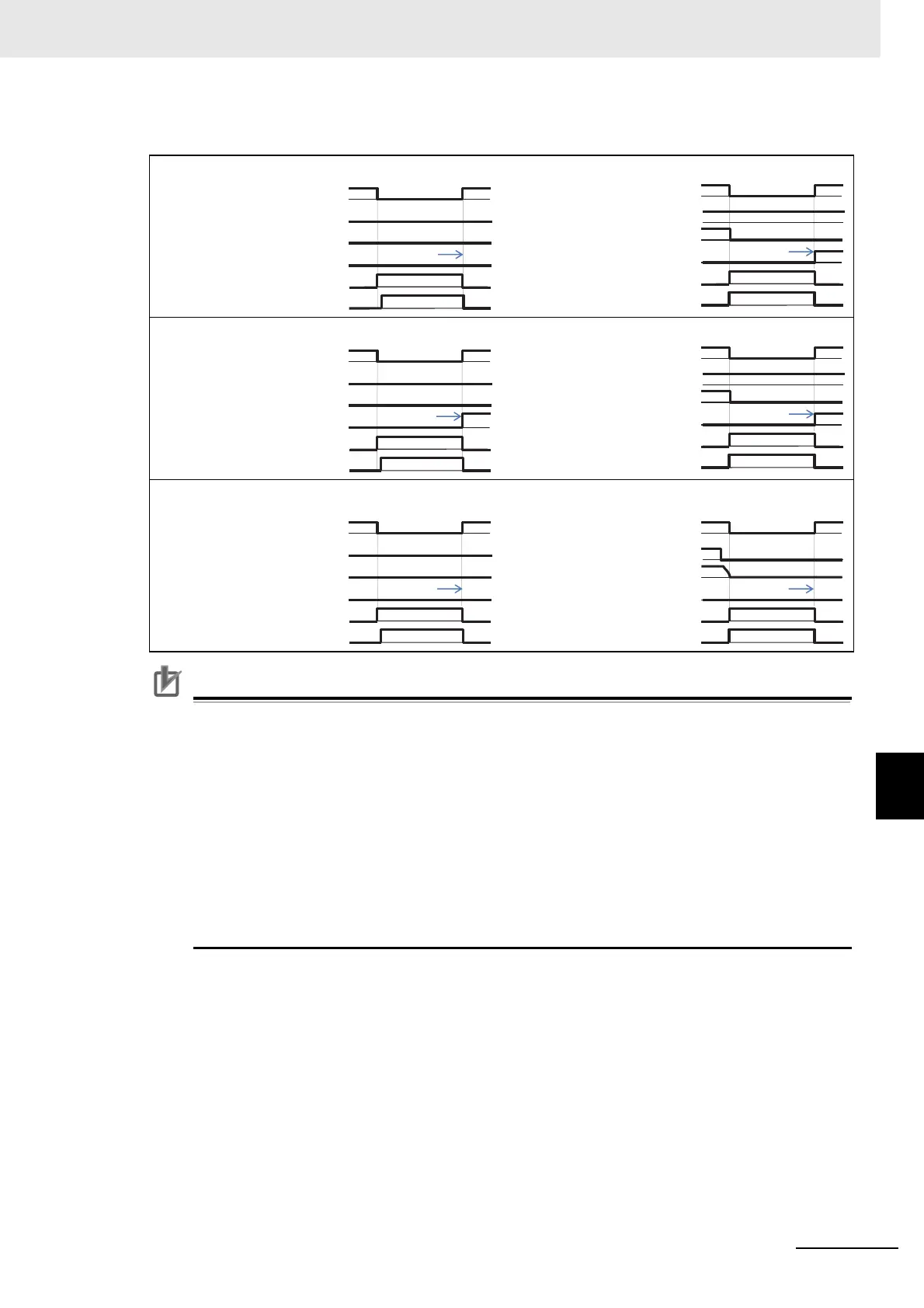

(Ex.1) [bb-27]=00
Power supply
Operation command [FW]
Inverter output
Output terminal [AL]
Output terminal [IP]
Output terminal [UV]
Inverter is stopped
Power supply
Operation command [FW]
Inverter output
Output terminal [AL]
Output terminal [IP]
Output terminal [UV]
Inverter is running (at rated load)
(Ex.2) [bb-27]=01
Power supply
Operation command [FW]
Inverter output
Output terminal [AL]
Output terminal [IP]
Output terminal [UV]
Inverter is stopped
Power supply
Operation command [FW]
Inverter output
Output terminal [AL]
Output terminal [IP]
Output terminal [UV]
Inverter is running (at rated load)
(Ex.3) [bb-27]=02
Power supply
Operation command [FW]
Inverter output
Output terminal [AL]
Output terminal [IP]
Output terminal [UV]
Inverter is stopped
Power supply
Operation command [FW]
Inverter output
Output terminal [AL]
Output terminal [IP]
Output terminal [UV]
Inverter is running (during
deceleration stop)
