8 Applied Settings
8 - 152
High-function General-purpose Inverter RX2 Series User’s Manual

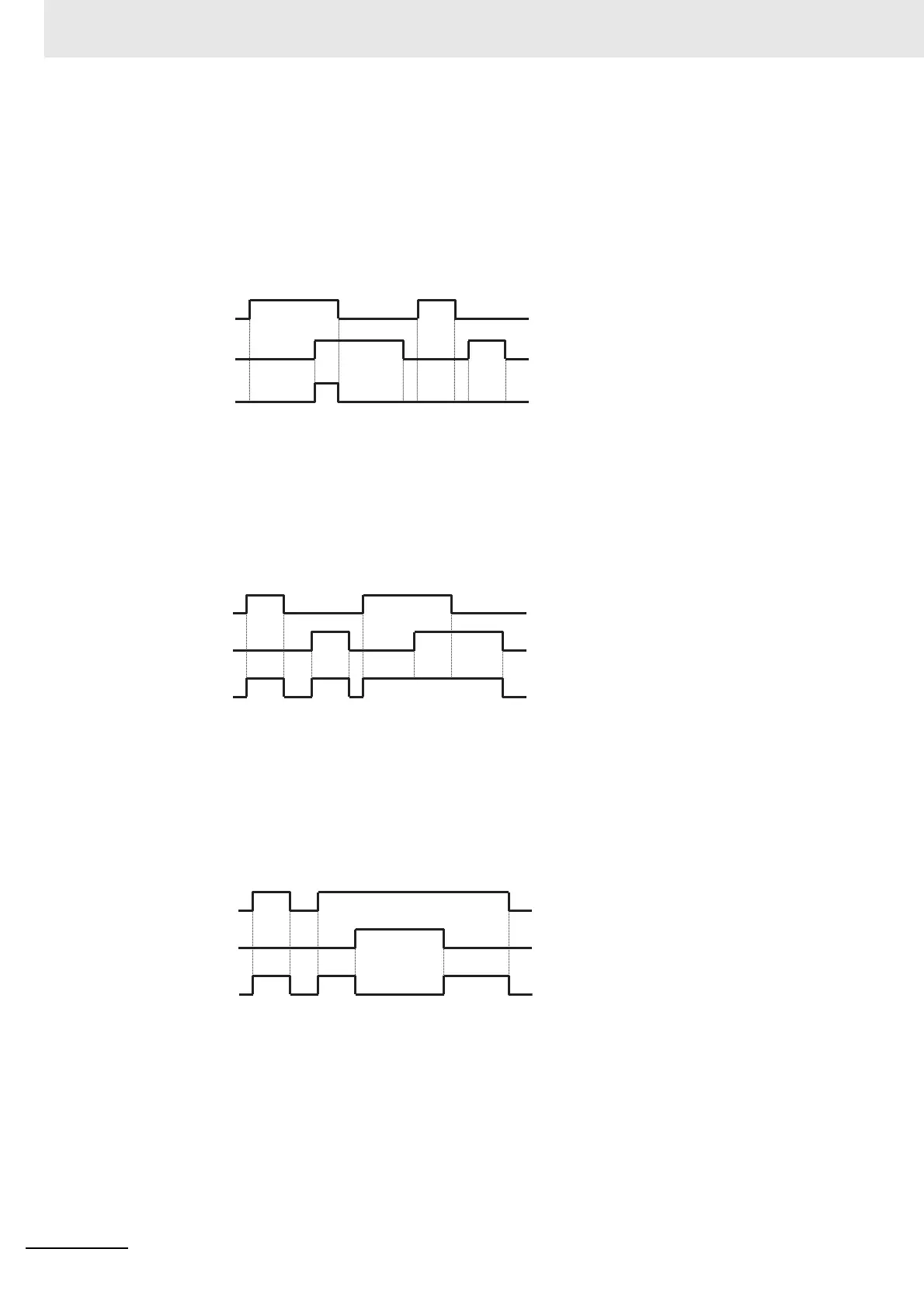

(Ex.1) Use a signal for which an AND operation has been performed with a frequency equal to or above
the set frequency (003: FA2) and a low current signal (033: LOC), and, when a current lowers after the
frequency has been determined, output the signal as Logical output 1 (LOG1) to Output terminal func-
tion 1.
• Output terminal function 1 [CC-01]: 062 (LOG1)
• Logical output signal 1 selection 1 [CC-40]: 003 (FA2)
• Logical output signal 1 selection 2 [CC-41]: 033 (LOC)
• Logical output signal 1 operator [CC-42]: 00 (AND)
(Ex.2) Use a signal for which an OR operation has been performed with an overload advance notice
signal (035: OL) and a thermal warning signal (026: THM), and, when a current falls outside the range,
output the signal as Logical output 3 (LOG3) to Output terminal function 2.
• Output terminal function 2 [CC-02]: 063 (LOG3)
• Logical output signal 3 selection 1 [CC-43]: 035 (OL)
• Logical output signal 3 selection 2 [CC-44]: 026 (THM)
• Logical output signal 3 operator [CC-45]: 01 (OR)
(Ex.3) Use a signal for which an XOR operation has been performed with an overload advance notice
signal (035: OL) and an overload advance notice signal 2 (036: OL2), and, when a current falls within a
certain range, output the signal as Logical output 5 (LOG5) to Output terminal function 3.
• Output terminal function 3 [CC-03]: 066 (LOG5)
• Logical output signal 5 selection 1 [CC-46]: 035 (OL)
• Logical output signal 5 selection 2 [CC-47]: 036 (OL2)
• Logical output signal 5 operator [CC-48]: 02 (XOR)
FA2
LOC
LOG1(AND)
ON
ON
ON ON
ON
OL
LOC
LOG3(OR)
ON
ON
ON
ON
ON
ON
ON
OL
OL2
LOG5(XOR)
ON
ON
ON
ON
ON
ON
