Omron RX2 Series User Manual

11 Options
11 - 38

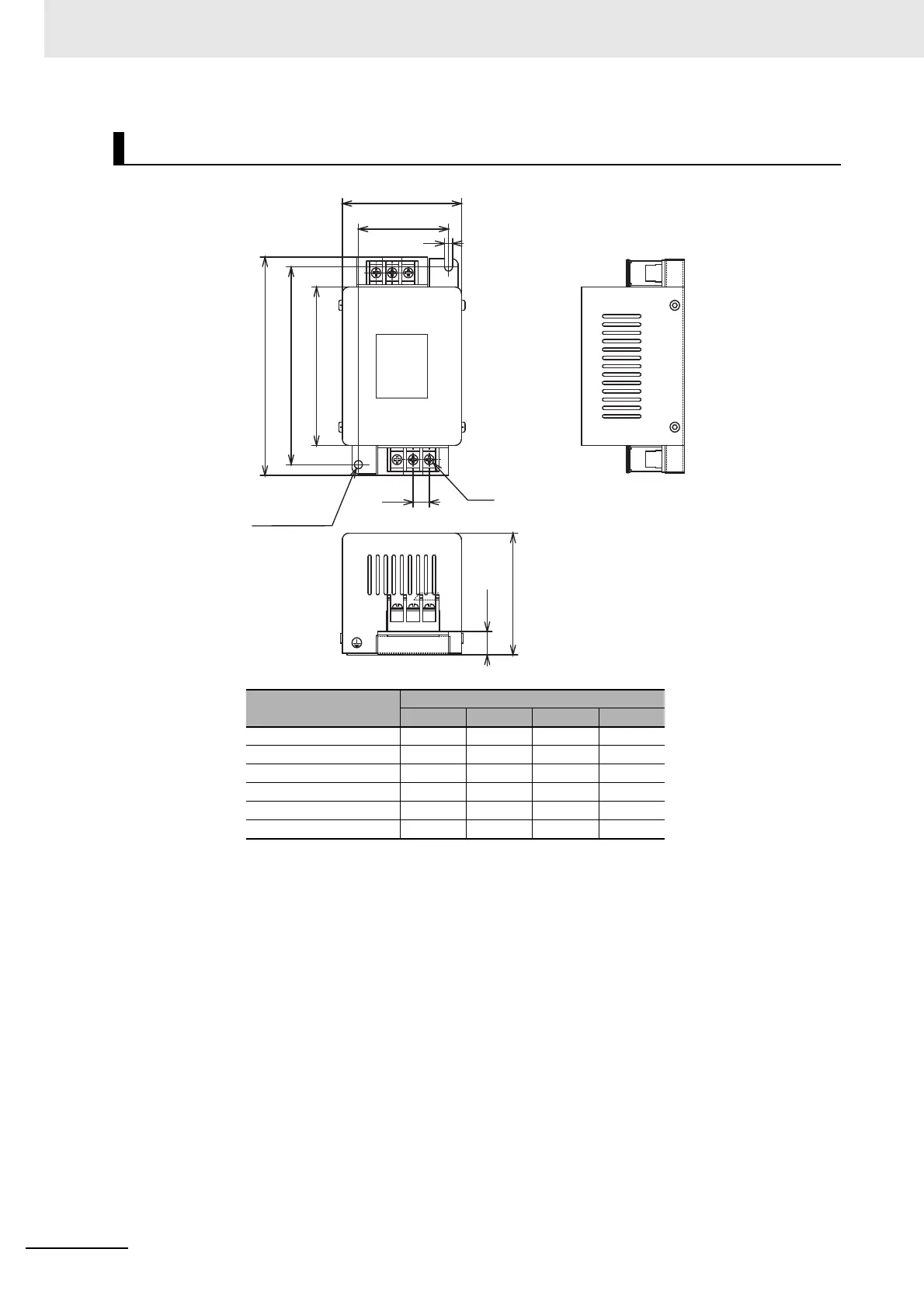

High-function General-purpose Inverter RX2 Series User’s Manual
3G3AX-NFI23/NFI24/NFI41/NFI42/NFI43/NFI44
Model
Dimensions [mm]
A B C D
3G3AX-NFI23 128 118 56 10
3G3AX-NFI24 144 130 56 11
3G3AX-NFI41 144 130 56 11
3G3AX-NFI42 144 130 56 11
3G3AX-NFI43 144 130 56 11
3G3AX-NFI44 144 130 56 11
Inverter side
Power supply side
L3' L2' L1'
L3 L2 L1
A
B
(95)
74
C
(D)
5
M4
(15)
73
Ground terminal
φ5
