PREVOST X3-45 COMMUTER User Manual

SECTION 06: ELECTRICAL
DOB 1300-1556 | X3-45 Commuter PA-1648 Maintenance Manual Section 06 revised release October 2021
9
1
2
3
5

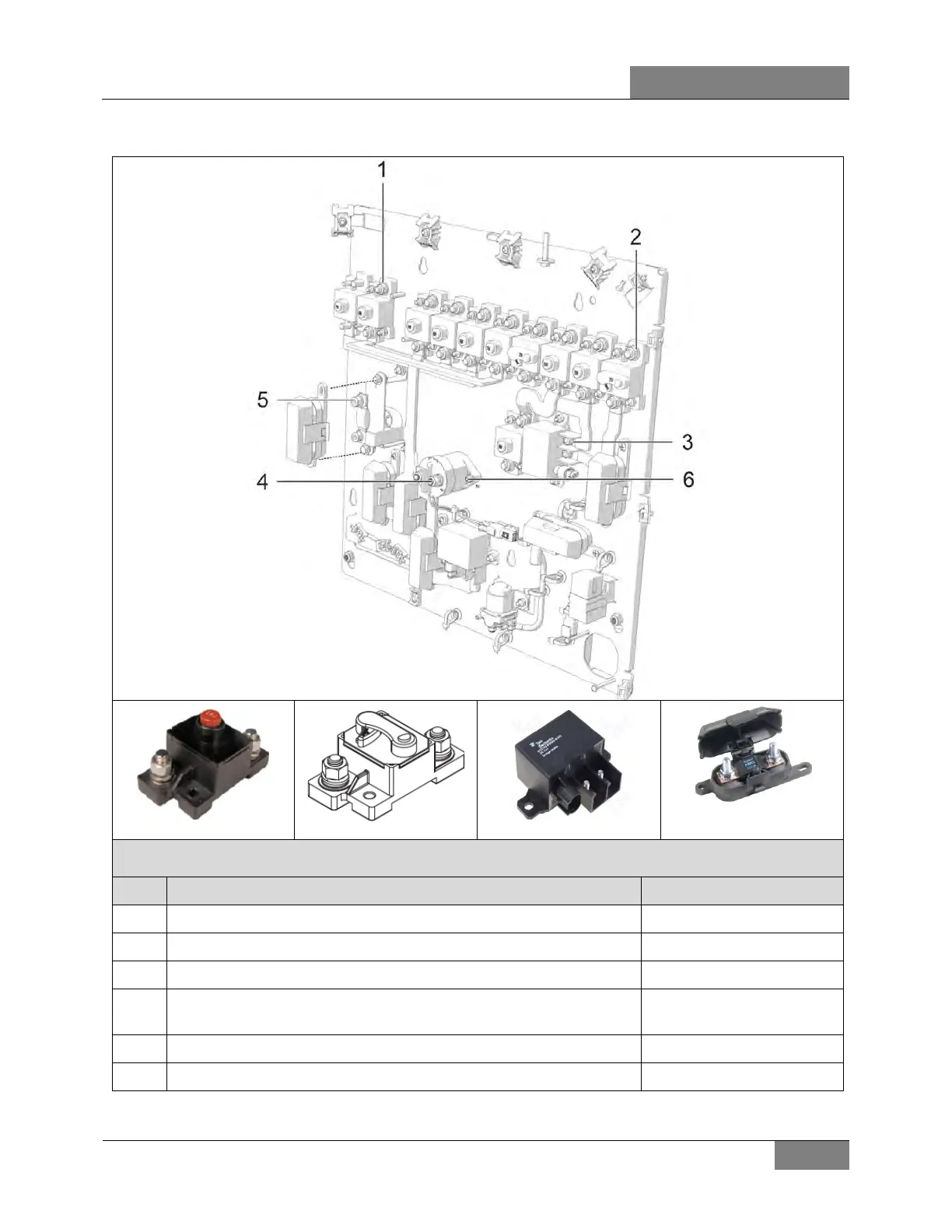

ELECTRICAL CONNECTIONS – MAIN POWER COMPARTMENT
No DESCRIPTION TORQUE
1 Main circuit breaker 3/8-16 stud nut 135 lb-in (15 Nm)
2 Main circuit breaker (switchable, manual reset) 3/8-16 stud nut 135 lb-in (15 Nm)
3 Power relay stud nut 44 lb-in (5 Nm)
4 Battery master relay – M8-1.25 buss bar connection stud nut 100
lb-in
100 lb-in (11 Nm)
5 Fuse holder M8-1.25 stud nut 96 lb-in (11 Nm)
6 Battery master relay mounting nut M5 15-35 lb-in 15-35 lb-in (2-4 Nm)

PREVOST X3-45 COMMUTER Specifications

General

Engine	Volvo D13
Transmission	Allison B500
Fuel Type	Diesel
Length	45 ft (13.7 m)
Width	102 in (2.6 m)
Horsepower	500 hp
GVWR	54, 000 lbs
Height	141 in
