PREVOST X3-45 COMMUTER User Manual

SECTION 06: ELECTRICAL
DOB 1300-1556 | X3-45 Commuter PA-1648 Maintenance Manual Section 06 revised release October 2021
21

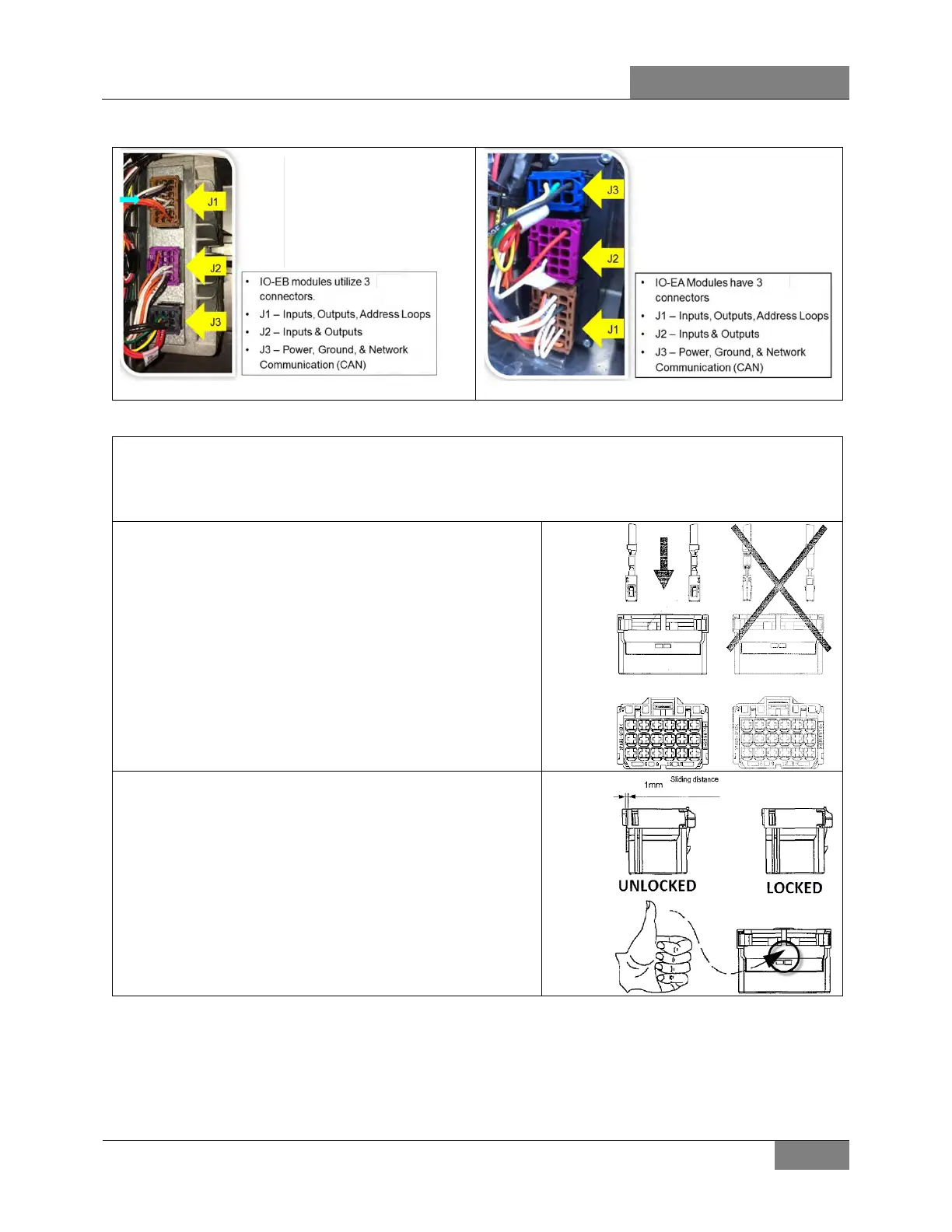

FIGURE 9: I/O-EB MODULE FIGURE 10: I/O-EA MODULE
I/O-EA & I/O-EB MUX modules
Connector: AMP MCP 2.8
Contact loading of housings
Loading the contacts is only possible if the secondary lock
is in the unlock position.
Proper orientation of the contac
t is important. If the
orientation is incorrect, the contact stops too early in the
region of the secondary lock and the whole crimp stands
out from the housing. With correct orientation the secondary
lock stops with a metallic “click” sound.
Locking the secondary lock
Delivery state of the secondary lock is the open position. In
this position the AMP MCP2.8 contacts can be loaded. After
that the secondary lock is moved into the final locking
position by hand.
At a sufficient large surface a perpendicular force is initiated
by (preferably) the thumb of one hand. Proper final position
is reached a click noise can be heard. Make sure that both
sides are locked.
