PREVOST X3-45 COMMUTER User Manual

SECTION 06: ELECTRICAL
22
DOB 1300-1556 | X3-45 Commuter PA-1648 Maintenance Manual Section 06 revised release October 2021

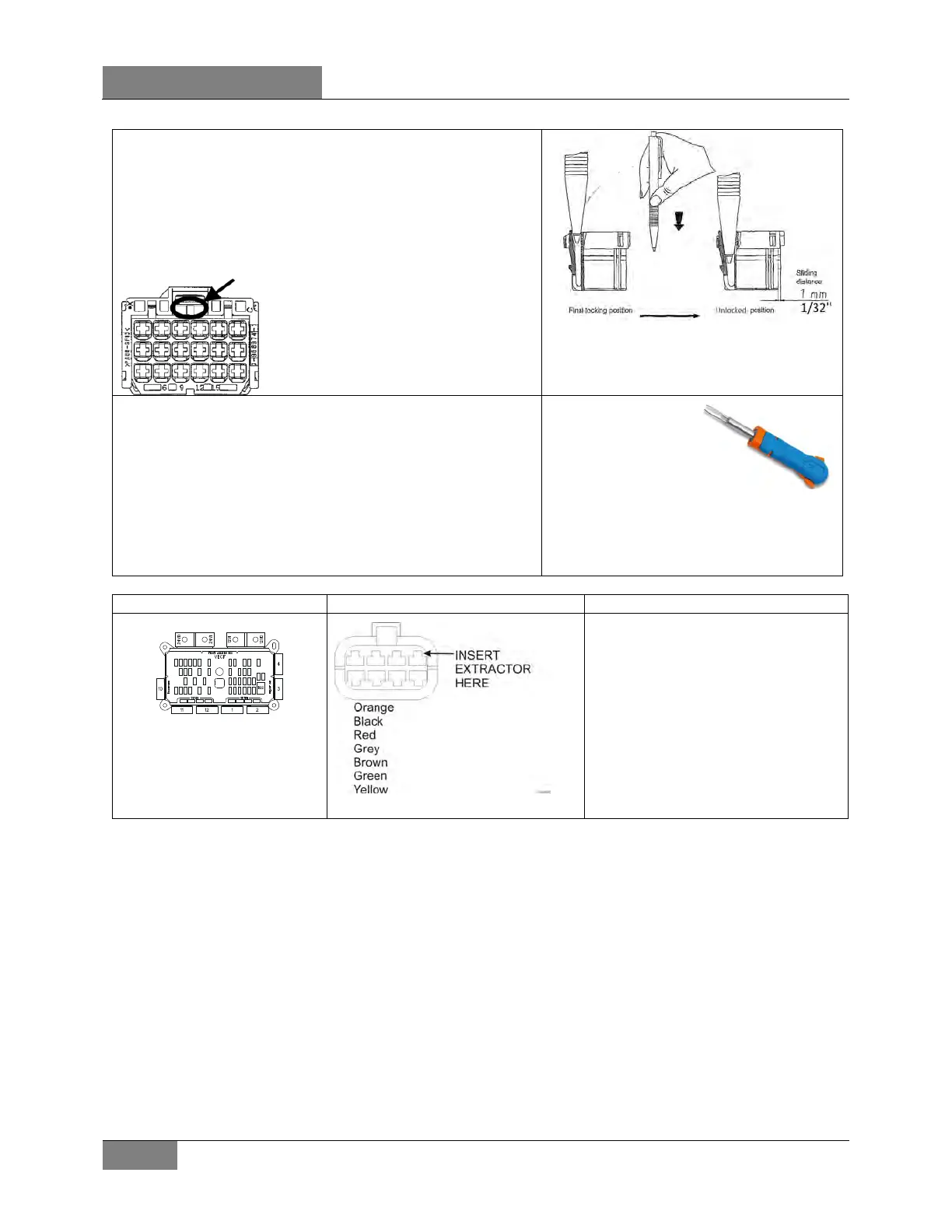

Unlocking the secondary lock
To unlock the secondary lock on these housings, a simple
solid commercial ball pen is sufficient. The ball pen has to
be inserted perpendicularly according the image, between
the locking latch of the housing and the secondary lock
block. Then it will be pushed with care until the opening is
felt (a “click” sound can be heard).
Extracting the contacts from housings
To extract contacts, the secondary lock has to be
in the
unlock position. The tool has to be inserted from connection
side into the cavity of housing up to the stop; the contact
will be unlocked thereby. Keep the tool in that position and
then take the contact out by pulling on the cable. Note: Do
not pull the cable before unlocking the contact; on the other
hand by pressing the cable gently against the cable outlet
direction the unlocking procedure will be facilitated.
EXTRACTOR/TOOL: Prevost 568103
Multiplex modules
Connector type
Contact removal
VECR / VECF
06627
06632
BUSSMAN
EXTRACTOR/TOOL: Prevost #682256
(Packard 12094429)
Remove the terminal by di
sengaging the
flexible lock
tab on the terminal. Gently
remove the terminal from the connector by
pulling on the wire.

PREVOST X3-45 COMMUTER Specifications

General

Engine	Volvo D13
Transmission	Allison B500
Fuel Type	Diesel
Length	45 ft (13.7 m)
Width	102 in (2.6 m)
Horsepower	500 hp
GVWR	54, 000 lbs
Height	141 in
