POWER CABLES
‒ The power cables are those through which flow the highest currents. These cables are those with the
largest electrical conductor diameters on the vehicle.
‒ The power cables are 1/0, 2/0, 3/0 wire gauges respectively Ø0.325in, Ø0.365in, Ø0.409in.
Note: not to be confused with the 1, 2, 3 wire gauges that are actually smaller.
‒ There are power cables at the following locations:
• On the alternators positive (+) stud terminal and from there, up to junction block in the electrical
compartment (Figure 1 to Figure 5).

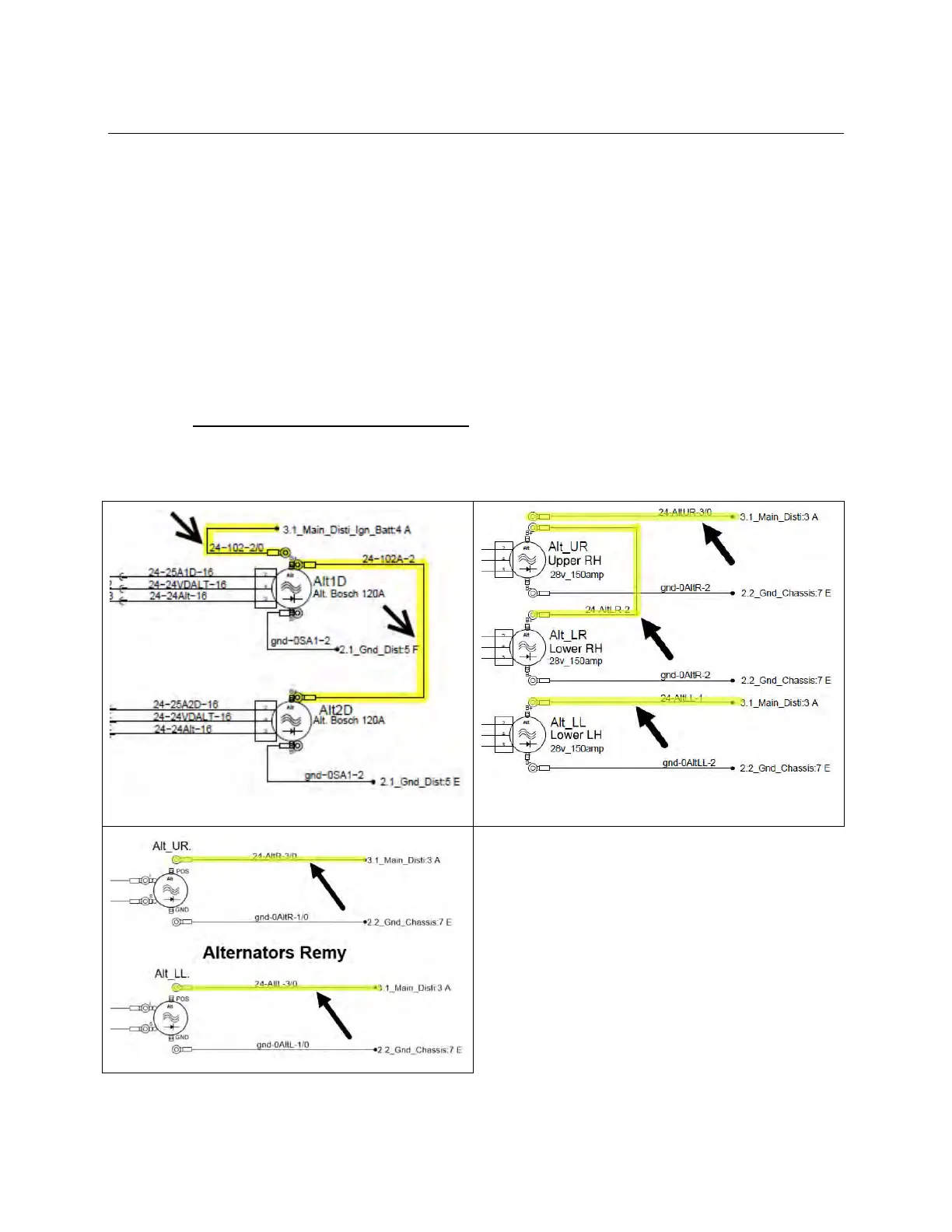

Figure 1 – R.H. SIDE ALTERNATORS (2x BOSCH)
MECHANICAL COOLING FAN DRIVE CONFIGURATION
Figure 2 – L.H. + R.H. SIDE ALTERNATORS (3x BOSCH)
ELECTRIC FAN DRIVE CONFIGURATION
Figure 3 – R.H. + L.H. SIDE ALTERNATORS (2x DelcoRemy)

PREVOST X3-45 COMMUTER Specifications

General

Engine	Volvo D13
Transmission	Allison B500
Fuel Type	Diesel
Length	45 ft (13.7 m)
Width	102 in (2.6 m)
Horsepower	500 hp
GVWR	54, 000 lbs
Height	141 in
